GE DS200IIBDG1AGA Isolated Instrument Board

Description

Product Introduction

The GE DS200IIBDG1AGA is an isolated instrument board designed for GE Speedtronic Mark V turbine control systems and Innovation Series high-power drives. It functions as a specialized signal conditioning layer, isolating delicate digital processor circuits from the high-voltage, high-noise environment of power conversion bridges. By providing optical and galvanic isolation, the board accurately scales feedback signals like DC link voltage and motor armature currents for system feedback loops.

Plant engineers rely on the IIBDG1AGA board because of its high immunity to ground loops and common-mode noise spikes. Unlike standard non-isolated feedback cards that risk transferring lethal transients straight to the control backplane, this module maintains strict hardware isolation barriers. That separation prevents catastrophic processor damage during power bridge short-circuit events or severe line surges.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 3:45 AM, and a critical pipeline compressor station running on an older GE Innovation drive trips on a hardware ground fault error. The drive won’t reset, and diagnostic logs point to an analog feedback saturation error on the main control processor. A sudden voltage spike in the inverter bridge blew through an unisolated feedback circuit, destroying the channel on the instrument board. Every hour the station is down, gas throughput drops, triggering stiff penalty clauses. Getting a fully tested DS200IIBDG1AGA on-site is the only way to clear the fault and safely bring the drive back online.

• Oil & Gas Compression – Large VFD Drives – Precise isolation of high-voltage DC link feedback signals in hazardous drive enclosures.
• Power Generation Plants – GE Mark V Exciters – Monitoring field voltage and current feedbacks in generator static excitation systems.
• Steel Rolling Mills – Heavy-Duty Motor Drives – Rugged signal conditioning for high-horsepower DC and AC motor drives operating under constant electrical noise.

Field Case Study

A paper mill’s main section drive experienced recurring overcurrent trips due to noisy feedback signals coming off an aging instrument card. After troubleshooting pointed to internal insulation breakdown on the feedback channels, we dispatched a pre-tested DS200IIBDG1AGA replacement board within 8 hours. The drive team swapped the board, verified channel calibration, and restarted the line before planned maintenance was scheduled to end—avoiding an estimated $85,000 in unscheduled downtime losses.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE rack environments. Here is our exact internal verification workflow before any DS200IIBDG1AGA leaves our warehouse:

1. Inbound Visual Inspection: Check board artwork for trace heat damage, inspect ribbon cable headers for bent pins, and confirm intact OEM barcode labels.
2. Backplane & Power-On Test: Install the board onto a live GE Mark V test harness to confirm logic power draw and proper voltage rail distribution.
3. Isolation & Dielectric Testing: Perform insulation integrity checks across isolation barriers to ensure high-voltage transients cannot pass to the control side.
4. Analog Signal Verification: Inject calibrated DC millivolt and 4–20mA inputs into all feedback channels and monitor output accuracy across the internal bus interface.
5. Firmware/Revision Tracking: Log exact revision codes (G1AGA) on the included quality certificate.
6. ESD Packaging: Enclose the board in anti-static shielding bags with desiccant packs before custom foam boxing.

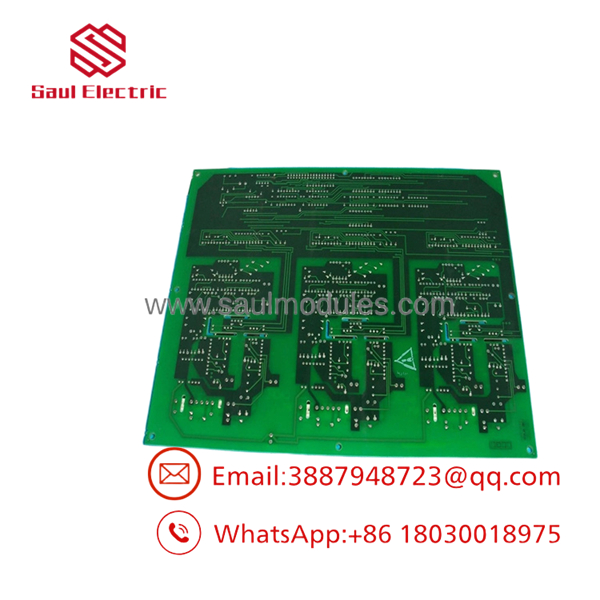

DS200IIBDG1AGA

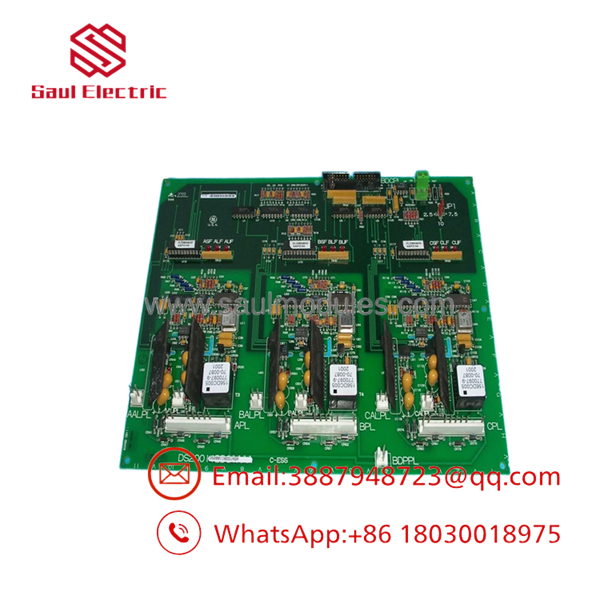

DS200IIBDG1AGA

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Match the Exact Revision Suffix (G1AGA)

GE boards use suffix codes like G1AGA to designate revision levels. While basic board functionality is often backward-compatible, differences in onboard resistor networks or jumper pinouts between revision letters (e.g., G1AAA vs G1AGA) can cause calibration drift. Always match or verify the suffix before drop-in installation!

❗ 2. Watch Out for Static Sensitivity

The isolation amplifiers and onboard logic on the IIBDG1AGA are extremely vulnerable to electrostatic discharge (ESD). Never handle this board without a grounded wrist strap attached to the drive chassis. Touch the unpainted metal frame before sliding the card out of its anti-static bag.

⚠️ 3. Inspect Mating Ribbon Cables

Before mounting the new board, inspect the multi-pin ribbon cables connected to the old card. Field technicians often pinch ribbon insulation or strain pin connectors during removal. A damaged ribbon cable plug will throw false hardware communication faults even with a brand-new board installed.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the DS200IIBDG1AGA hot-swappable?

A: No. Absolutely not. Pulling this board while the drive or Mark V panel is energized will cause high-voltage transients on the backplane, risking severe damage to processor cards and potential physical danger to the technician. Always execute a total lock-out/tag-out (LOTO) before swapping this module.

Q: What does the “AGA” revision designation mean?

A: In GE Mark V part numbering, G1 represents the group layout, while AGA indicates specific engineering revision iterations. The A suffix generally points to functional component updates or manufacturing improvements over original base releases.

Q: Can this board be used in both Mark V panels and Innovation Series drives?

A: Yes. The DS200 series architecture was designed across multiple GE industrial platforms, including Mark V Speedtronic turbine controls and GE Innovation Series high-power industrial AC/DC drives.

Q: Is this unit new or refurbished, and what warranty is included?

A: We supply this unit as New Surplus stock (unused factory original surplus). It comes backed by our standard 12-month full replacement warranty. If a hardware failure occurs within a year, we replace it immediately.

Q: How do you price this below OEM list rates?

A: We procure surplus industrial automation inventory directly from plant upgrades, canceled capital projects, and verified global stockholds. You receive 100% genuine GE hardware without paying traditional OEM rush fees or waiting through multi-month lead times.
