GE DS3800HPBC1B1D Control Board

Description

Product Introduction & Engineering Value

The GE DS3800HPBC1B1D is a legacy DS3800-series printed circuit board designed for use in compatible GE industrial control equipment. Its complete part number is the key procurement reference; the DS3800 family contains numerous boards with similar physical formats but different electrical functions.

For plants maintaining older GE control systems, an exact-match DS3800HPBC1B1D can provide a practical route to restoring failed hardware without immediately replacing the surrounding control architecture. Before installation, verify the board identification, revision, configuration, and equipment documentation.

Technical Specifications

Technical caution: Public information for the exact DS3800HPBC1B1D is limited. I would not assign specific voltage, I/O count, signal range, connector pinout, or communication specifications without the applicable GE documentation. Those parameters should be verified from the original equipment drawings or board documentation.

Field Application & the “Trench” Experience

With legacy GE electronics, the board swap itself is usually the easy part. The difficult part is making sure the replacement is actually the right configuration.

Imagine a maintenance team preparing for a short outage. The failed board is marked DS3800HPBC1B1D, while stores contains a visually similar DS3800 PCB. The technician compares the complete part number, board markings, connector arrangement, and configuration hardware before accepting the spare. The original wiring is photographed, the replacement is inspected, and functional verification is performed before the equipment is returned to service.

That extra verification prevents a common failure mode: solving the original hardware problem while introducing a compatibility problem.

Niche application scenarios

• Legacy GE control cabinets: replacement of an aging HPBC-series circuit board while retaining the installed control architecture.
• Scheduled maintenance outages: maintaining an exact-match spare for obsolete GE control hardware.
• Industrial controls life-extension programs: restoring individual circuit boards while longer-term system modernization is evaluated.

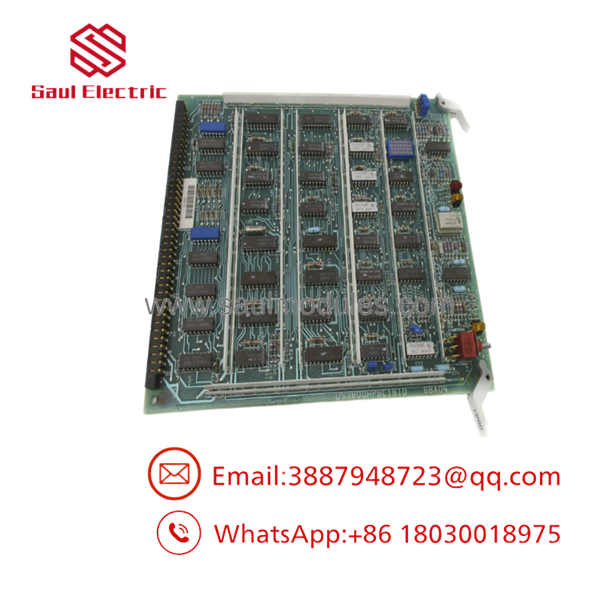

DS3800HPBC1B1D

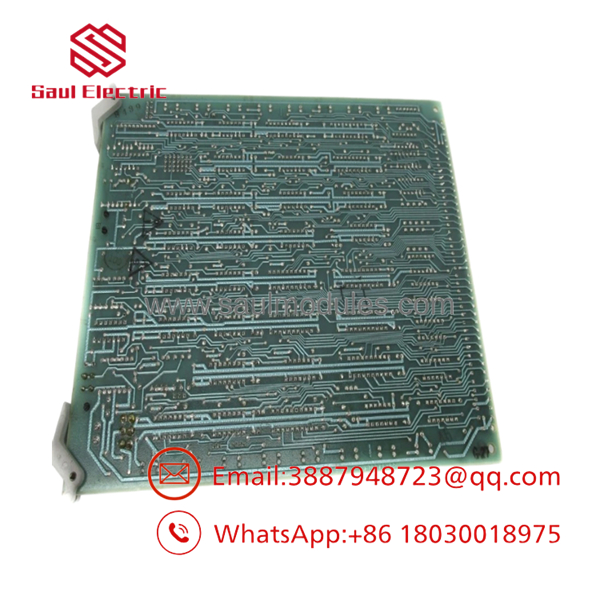

DS3800HPBC1B1D

Transparency SOP: QA & Testing

For New Surplus or Refurbished DS3800HPBC1B1D stock, the QA process should be documented rather than reduced to “tested.”

1. Part-number confirmation — Verify and all available revision markings.
2. Visual inspection — Examine the PCB, connectors, components, solder joints, traces, mounting points, and signs of corrosion or heat damage.
3. Configuration inspection — Record jumper, switch, or other configurable hardware positions where applicable.
4. Electrical screening — Check for obvious shorts, abnormal resistance paths, damaged components, and signs of electrical stress.
5. Functional testing — Use a compatible GE test platform where available.
6. Documentation — Record the board condition, test status, serial/traceability information, and warranty coverage.

For New Surplus units, ask whether the board has ever been installed, repaired, modified, or electrically tested.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t buy by “DS3800HPBC” alone.
The complete designation is the procurement reference. Similar HPBC boards should not be treated as automatic substitutes.

⚠️ Trap #2 — Check revision and configuration before installation.
A board that physically fits the cabinet can still be electrically unsuitable. Compare the replacement with the original documentation before applying power.

PRO TIP: Photograph the original board before removal. Capture the complete part number, revision markings, connector orientation, configuration hardware, and field wiring. This creates a useful installation record.

⚠️ Trap #3 — Don’t use a production cabinet as a test bench.
If the replacement’s condition or compatibility is uncertain, perform appropriate inspection and controlled testing before installing it into critical operating equipment.

Dynamic FAQ

What is the GE DS3800HPBC1B1D?

The is a GE DS3800-series industrial control printed circuit board identified by the HPBC family and C1B1D configuration.

What system does it belong to?

It belongs to the legacy GE DS3800 industrial control platform. Exact equipment compatibility should be confirmed from the original cabinet documentation rather than inferred from the family name.

Can another DS3800HPBC board replace it?

Not without verification. Check the complete part number, revision, electrical characteristics, connector arrangement, and application documentation before substitution.

What information is needed for a replacement quote?

Provide the exact number, clear photographs of the installed PCB, and the equipment model if available. Revision and serial information are also useful.

How do I verify New Surplus authenticity?

Ask for photographs of the actual inventory unit and request confirmation of its history. Establish whether it is unused, previously installed, repaired, modified, or functionally tested.

Is a warranty included?

Warranty terms depend on the supplier and stock condition. Confirm the warranty period, DOA policy, return procedure, and test documentation before purchasing a critical spare.
