Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| Model | IS200TDBSH2ACC / IS230TNDSH2A |
| Product Type | Simplex Discrete Input/Output Terminal Board |
| Platform | GE Mark VIe |
| Compatible I/O Pack | IS220PDIOH1A / IS220PDIOH1B |
| Mounting | DIN Rail or Flat Panel |
| Nominal Field Voltage | 24 VDC (supports external wetting voltages depending on application) |
| Contact Inputs | 24 Group-Isolated Inputs |
| Signal Type | Discrete Digital Input / Output |
| Terminal Style | High-density European Terminal Blocks |
| Diagnostics | On-board ID Chip for System Identification |
| Application | Gas Turbine, Steam Turbine, Industrial Process Control |
| Approximate Weight | 0.5–0.8 kg |
| Condition | New Original / New Surplus |
The TDBS terminal board is designed for simplex discrete I/O applications and interfaces directly with GE IS220PDIO I/O packs in Mark VIe control systems.
Product Introduction
The GE IS200TDBSH2ACC / IS230TNDSH2A is a Simplex Discrete Input/Output Terminal Board used in the GE Mark VIe turbine control platform. It provides the interface between field wiring and the IS220PDIO I/O Pack, allowing reliable acquisition of discrete input signals and control of field output devices in critical industrial applications.
This terminal board is commonly installed in gas turbines, steam turbines, balance-of-plant systems, and other high-availability process control installations. Its group-isolated inputs, DIN-rail mounting, and integrated identification circuitry simplify maintenance while maintaining compatibility with existing Mark VIe architectures.

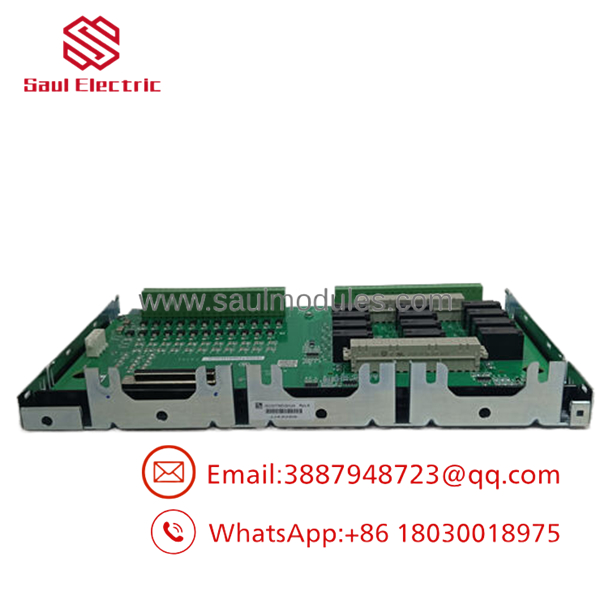

- IS200TDBSH2ACC IS230TNDSH2A

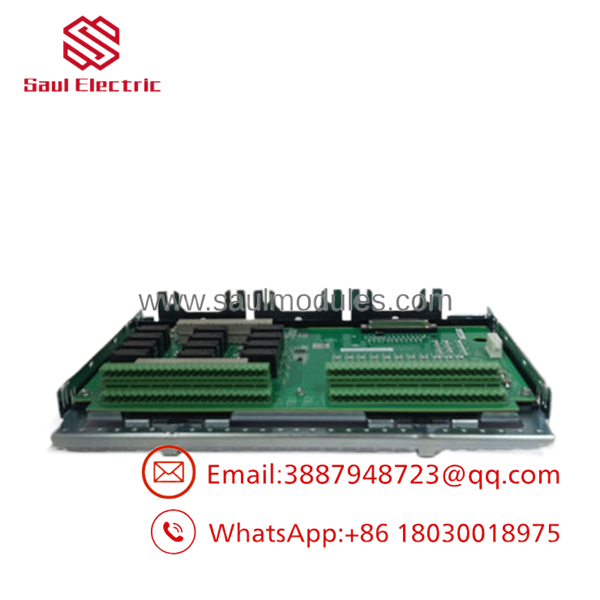

- IS200TDBSH2ACC IS230TNDSH2A
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| PDIO pack not detected | Terminal board connector issue | ✅ High | Inspect mating connectors and locking hardware | Reseat terminal board and I/O Pack |
| Multiple field inputs inactive | Missing wetting voltage | ✅ High | Measure external 24/48/125 VDC wetting voltage | Restore field supply before replacing board |
| Individual input not changing state | Wiring or terminal fault | ⚠️ Medium | Measure voltage directly at terminal block | Verify field wiring and fuse |
| Output relay fails to energize | External power or fuse issue | ⚠️ Medium | Measure output voltage under load | Check fuse and external supply |
| Intermittent alarms | Loose terminal screws | ✅ High | Torque terminal screws to specification | Retighten and retest |
| Entire terminal board offline | PDIO I/O Pack fault | ❌ Low | Substitute with known-good IS220PDIO pack | Verify I/O Pack before replacing board |
| Communication diagnostics present | Hardware revision mismatch | ⚠️ Medium | Verify IS220PDIO and terminal board compatibility | Match approved hardware revisions |
Field Tip: The most common service call isn’t a failed terminal board—it’s missing field wetting voltage or loose terminal connections. Before ordering a replacement, measure the field voltage at the terminal block and verify every screw terminal. That simple check can eliminate hours of unnecessary troubleshooting.
If problems persist, collect Mark VIe diagnostic logs, LED status, and photos of the wiring before contacting technical support.
Frequently Asked Questions (FAQ)
Q1. What is the difference between IS200TDBSH2ACC and IS230TNDSH2A?
The two numbers are closely related. IS200TDBSH2ACC identifies the terminal board design, while IS230TNDSH2A commonly refers to the assembled terminal board used in the GE Mark VIe system. They are typically supplied together for PDIO applications.
Q2. Which I/O Packs are compatible?
This terminal board is approved for use with IS220PDIOH1A and IS220PDIOH1B Discrete I/O Packs in Mark VIe systems. Always verify compatibility with your specific hardware revision.
Q3. Can I hot-swap this terminal board?
No. Unless the official GE maintenance documentation specifically permits it for your installation, isolate power before removing the terminal board or I/O Pack.
Q4. Why should I match the hardware revision?
Even when the base model number matches, different hardware revisions may introduce compatibility or diagnostic issues. Always compare the complete catalog number and revision suffix before installation.
Q5. Is this module still manufactured?
It is considered a legacy Mark VIe spare part. Most available inventory consists of New Surplus or professionally tested surplus units. Availability can fluctuate due to demand.
Q6. Why are New Surplus units less expensive than OEM factory stock?
New Surplus products are genuine unused OEM components sourced from excess inventory or canceled projects. They have not been previously installed but are typically sold outside the manufacturer’s distribution network.
Q7. What should I verify before installation?
Experienced turbine engineers recommend checking:
- Complete part number and revision suffix
- Compatible IS220PDIO I/O Pack
- External wetting voltage (24/48/125 VDC as applicable)
- Terminal wiring and torque
- DIN-rail mounting integrity
- ESD protection during handling
- Mark VIe diagnostic logs after commissioning
These checks resolve the majority of startup issues without requiring board replacement.
