Product Introduction
The GEA Westfalia 0005-4050-430 (internally designated as the D-10 / C7-613 controller) is an industrial digital display and control unit engineered specifically for GEA centrifugal oil purifiers and marine separators. Acting as the central processor for automated separation systems, it executes complex timing sequences required for bowl ejection, water seal creation, and sludge discharge cycles.

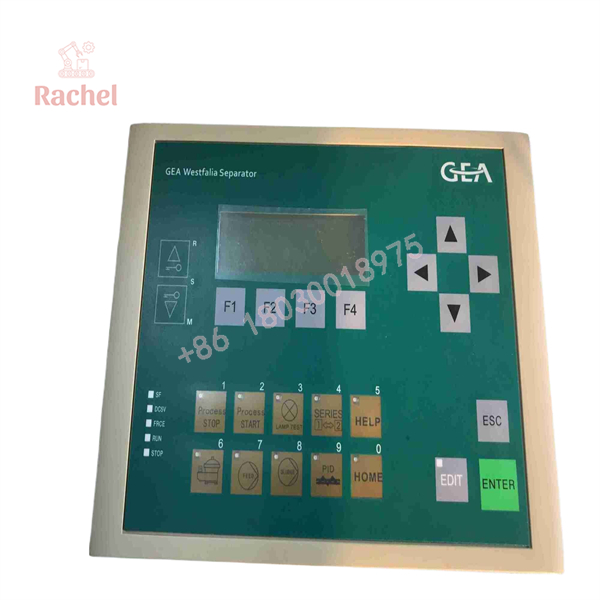

Built upon a ruggedized Compact C7 operator control platform, the 0005-4050-430 integrates a multi-line display with direct function keys. It continuously polls temperature, pressure, feed valve states, and vibration/speed sensors to prevent bowl imbalances and fluid contamination in continuous 24/7 marine and power generation environments.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | GEA Westfalia Separator Group |
| Model Code | 0005-4050-430 (Base Platform: C7-613 / 6ES7613-1CA02-0AE3) |
| Application | GEA Westfalia D-10 Series Oil Separators & Purifiers |
| Display Type | Industrial Backlit Monochrome LCD Screen |
| Operator Interface | Tactile industrial membrane keypad with direct function/numeric keys |
| Input Supply | 24 V DC (±15%) system power |
| Control Logic | Automatic discharge timing, water-transducer monitoring, fault logging |
| Enclosure Rating | NEMA 4 / IP65 front panel seal for marine engine room environments |
| Approx. Dimensions | 6.5″ x 8.0″ x 3.5″ (16.5 cm x 20.3 cm x 8.9 cm) |
Application Scenarios & The “Trench” Experience
During a sea voyage, an automated lube oil purifier on a cargo vessel drops offline with a continuous ejection timer fault, leading to rapid water buildup in the main engine sump. Troubleshooting reveals corrupted discharge memory parameters on the original control card. Installing a pre-tested GEA 0005-4050-430 controller restores precise water-seal filling and timed desludging cycles, keeping oil contamination levels within safe operating limits.
- Marine Main & Auxiliary Engine Purifiers: Controls automated clarification and purification of heavy fuel oil (HFO) and lube oil.
- Power Plant Fuel Conditioning: Manages continuous fuel oil cleaning systems for stationary diesel generators and gas turbines.
- Industrial Oil Recycling: Regulates solids discharge and water separation in industrial coolant and lube re-refining systems.
- Dairy & Food Separation: Adapts to automated CIP (Clean-in-Place) and centrifugal fluid clarification lines.

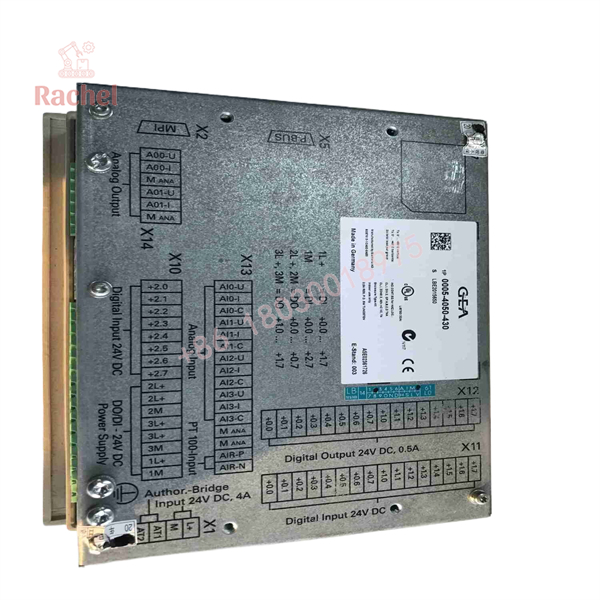

0005-4050-430
0005-4050-430
Transparency SOP: Quality Assurance & Testing
- Visual & Terminal Inspection: Check front membrane layer for key wear or tears, examine rear terminal blocks for corrosion, and verify mounting clips.
- Benchtop Power & Display POST: Apply 24V DC power; verify LCD backlight, contrast controls, and system boot sequence execution.
- Keypad & Digital I/O Simulation: Exercise all front-panel keys; trigger discrete input channels (solenoid position switches, pressure monitors) and verify output relay closures.
- Desludging Timer Test Run: Execute full simulated purification, water-filling, and ejection cycles to confirm internal timer and memory retention.
- ESD Protection & Packaging: Enclose in static-shielding material, pack with dense custom foam inserts, and box in a rigid export carton.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Verify Firmware & Parameter Settings: Because the 0005-4050-430 is used across different separator models, ensure timer parameters (water injection time, ejection interval) are correctly configured for your specific oil viscosity before starting the bowl.
- ❗ Inspect Solenoid Driver Relays: Water injection and ejection valves are driven directly or via interposing relays from this module. Always test operating solenoid coils for shorts before connecting a replacement panel to avoid blowing output channels.
- ⚠️ Ensure Proper Panel Gasket Seating: Marine engine rooms experience ambient humidity and oil mist. Ensure the front-panel rubber gasket is fully intact during installation to maintain the IP65 fluid seal.
- ❗ Never Disconnect Under Load: Always isolate the 24V DC supply breaker before pulling backplane wiring plugs to prevent memory corruption or voltage spikes.
Frequently Asked Questions (FAQ)
Q: Is the GEA 0005-4050-430 a direct drop-in replacement for older D-10 separator panels?
A: Yes, it is the standard replacement panel unit designed for GEA Westfalia D-10 control architectures.
Q: What does the designation C7-613 mean on the label?
A: C7-613 indicates the underlying Siemens SIMATIC hardware platform customized by GEA with dedicated separator control firmware.
Q: How do I clear alarm codes on the 0005-4050-430 panel?
A: Alarms can be acknowledged directly via the front panel key once the field fault condition (e.g., low bowl speed, water transducer error) has been cleared.
Q: Can this unit operate on AC supply power directly?
A: No. The unit requires a regulated 24V DC power supply. Connecting AC line voltage directly will permanently damage internal circuitry.
Q: What warranty applies to this surplus module?
A: All clean surplus and bench-tested GEA 0005-4050-430 control modules carry a full 12-month replacement warranty from the delivery date.
