GUTOR 0P0396AA 640-0580A Logic Control Card

Description

Product Introduction

The GUTOR 0P0396AA (PCB Part Number 640-0580A, Revision 07) is a core logic control and signal conditioning board engineered for heavy-duty GUTOR industrial uninterruptible power supply (UPS) systems. Installed within the cabinet’s internal card rack, this board handles critical real-time processing—including monitoring voltage and current feedback loops, driving gate firing sequences, and relaying diagnostic telemetry to the central system processor.

Built specifically for high-stress industrial environments like oil refineries, power plants, and offshore rigs, Revision 07 incorporates hardened trace pathways and enhanced component shielding against thermal drift and electromagnetic interference. Replacing a degraded or damaged 0P0396AA card restores original system timing, clears persistent control bus fault codes, and eliminates unnecessary transfers to static bypass.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 2:00 AM on a humid night at a continuous-process chemical plant. Your main plant control room receives an urgent “Inverter Fault / Phase Mismatch” alarm from the primary 120kVA GUTOR UPS system. The unit drops load to static bypass, leaving the critical process loops exposed to raw utility power. A visual inspection of the cabinet card cage reveals intermittent LED status flickers on the main 0P0396AA logic board, caused by degraded timing capacitors on the aging Rev 07 circuit path.

• Petrochemical Process Plants – Critical UPS Maintenance – Replaces failing feedback control logic to stabilize inverter output under shifting manufacturing loads.
• Nuclear & Fossil Fuel Facilities – DC/AC Backup Rack Support – Restores true redundant inverter operation without replacing the entire transformer cabinet.
• Offshore Energy Platforms – Harsh Environment Equipment Repairs – Replaces environmentally stressed controller boards with conformal-coated industrial spares.

Field Case Study

A thermal power facility experienced repeated, unprovoked “Gate Driver Lockout” alarms during high-heat summer months. The original 640-0580A board had suffered subtle thermal degradation across its onboard logic comparators over a decade of continuous service. Sourcing a fully bench-tested GUTOR 0P0396AA Rev 07 replacement card allowed field engineers to schedule a quick 20-minute maintenance window. Following installation, the system synchronized properly, cleared all latched fault conditions, and successfully passed a 100% step-load transfer test.

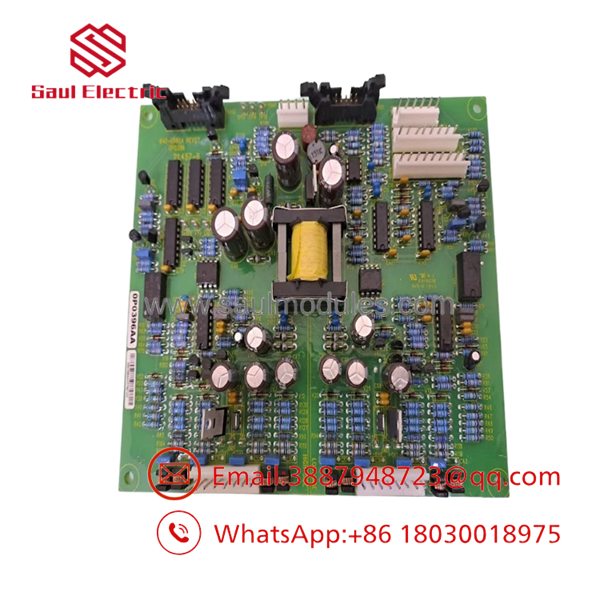

0P0396AA 640-0580A

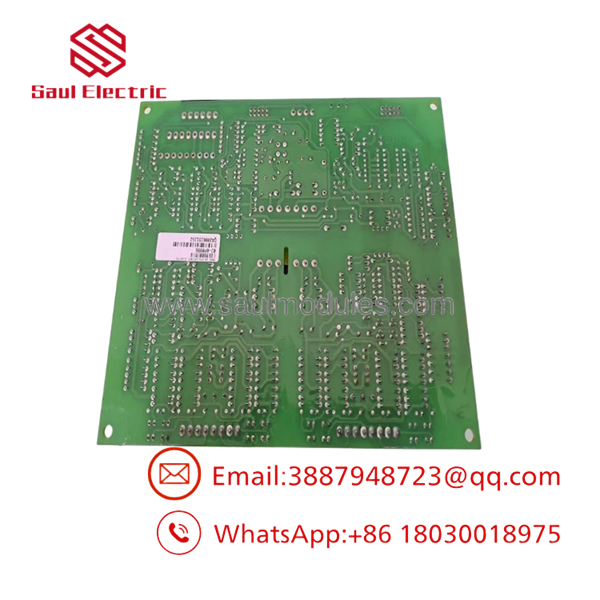

0P0396AA 640-0580A

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual GUTOR-compatible power racks before they ship to your job site. Our 5-step bench verification process includes:

1. Inbound Visual & Optical Inspection: Microscopic audit of traces, solder joints, edge connector fingers, and surface-mount components for signs of heat stress or micro-fractures.
2. Conformal Coating Check: Verification that the protective industrial seal is intact to prevent moisture creeping into sensitive signal paths.
3. Static Electrical Testing: Multi-point resistance checks across power rails and gate drive channels to ensure zero internal short circuits.
4. Live Rack Diagnostic Handshake: Board insertion into our test bench cage to confirm clean communication, power-up self-test completion, and correct status LED operation.
5. ESD-Safe Sealed Packaging: Deep cleaned, labeled with exact revision numbers (Rev 07), and vacuum-sealed inside anti-static ESD shielding bags with custom foam boxing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Match Your Hardware Revision (Rev 07): GUTOR periodically updated the 640-0580A PCB design across different manufacturing runs. Swapping a Rev 07 board with an earlier revision (like Rev 02 or Rev 04) can cause pinout mismatches or firmware timing faults with the main CPU. Always match the “Rev” stamp on the PCB edge.
• ❗ Verify DIP Switches and Jumper Blocks Before Installation: Take a clear, high-resolution photo of the DIP switches and zero-ohm jumper settings on your original failed 0P0396AA board. You must duplicate these jumper configurations onto the replacement board before sliding it into the rack card cage.
• ⚠️ De-Energize the DC Bus First: Never pull or insert this card while the UPS cabinet is live—even if the system is running on static bypass. High voltages exist across internal distribution backplanes. Isolate AC input, open battery breakers, and verify zero voltage on internal bus capacitors before touching the board.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GUTOR 0P0396AA board hot-swappable?

A: No. Pulling this logic card while the system is energized will immediately crash the central processor, drop the inverter, and potentially cause an electrical flashover across the backplane edge connectors. Always transfer the UPS to Maintenance Bypass and de-energize the rack before card removal.

Q: How do I know if the fault is on the 0P0396AA board or the main processor card?

A: If your UPS display shows logic interface or gate drive feedback errors while the main processor remains responsive, the 0P0396AA is usually the culprit. Check for thermal discoloration around the onboard ICs or flickering diagnostic LEDs on the board faceplate.

Q: Are these replacement units factory new or pre-owned surplus?

A: We carry a mix of New Surplus and fully reconditioned, bench-tested surplus inventory. Every single 0P0396AA board—regardless of condition classification—undergoes complete physical and live electrical testing prior to dispatch.

Q: What is your standard warranty coverage on this GUTOR card?

A: We back all industrial automation and UPS replacement components with a comprehensive 12-month full replacement warranty. If the board exhibits any operational defects or throws system fault codes within one year of purchase, we will swap it or issue a full refund.
