GUTOR 0P6281A Industrial UPS Control Board

Description

Product Introduction

The GUTOR 0P6281A is an internal control and logic interface printed circuit board built specifically for heavy-duty GUTOR industrial uninterruptible power supply (UPS) systems, including the PEW, PDW, SDC, and WEW cabinet series. Installed directly within the cabinet’s internal card rack, this board conditions analog feedback signals from current and voltage sensors, processes real-time state logic, and coordinates precise firing sequences between the power stage drivers and the central system processor.

Engineered to operate reliably under severe electrical and thermal stress, the 0P6281A features a hardened PCB layout protected by heavy industrial conformal coating against atmospheric moisture, dust, and chemical vapors. Swapping a degraded or faulting 0P6281A module clears persistent backplane communication alarms, eliminates gate drive synchronization errors, and restores full operational redundancy to mission-critical backup power trains.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 3:00 AM on a storm-hit night at an offshore gas processing platform. The plant’s central monitoring station triggers a priority alert: the primary GUTOR industrial UPS supporting the main safety instrumented system (SIS) has thrown an internal control bus communication error, shifting the entire critical load to static bypass. A quick thermal check inside the cabinet card cage reveals signal drift and intermittent fault LED flickers on the main 0P6281A logic card.

• Offshore Energy Platforms – Safety System Power Backup – Restores reliable logic execution and signal stability under harsh, high-humidity marine conditions.
• Petrochemical Refineries – Continuous Process UPS Support – Stabilizes internal control feedback loops to prevent sudden plant trips during utility power sags.
• Fossil Fuel & Nuclear Facilities – Control Room Infrastructure – Replaces aging controller cards in long-service-life GUTOR cabinets without replacing the entire power rack.

Field Case Study

A thermal power station experienced recurring, unprovoked “Inverter Gate Timing” fault alarms on a 100kVA GUTOR PEW unit during peak summer ambient temperatures. Field diagnostics identified aging surface-mount components on the original 0P6281A interface board after 11 years of continuous runtime. Sourcing a fully pre-tested 0P6281A replacement board allowed field engineers to schedule a quick 20-minute maintenance window on static bypass. Technicians swapped the card, duplicated the jumper configurations, and re-synchronized the inverter—clearing all latched fault logs immediately and passing a full load-bank test.

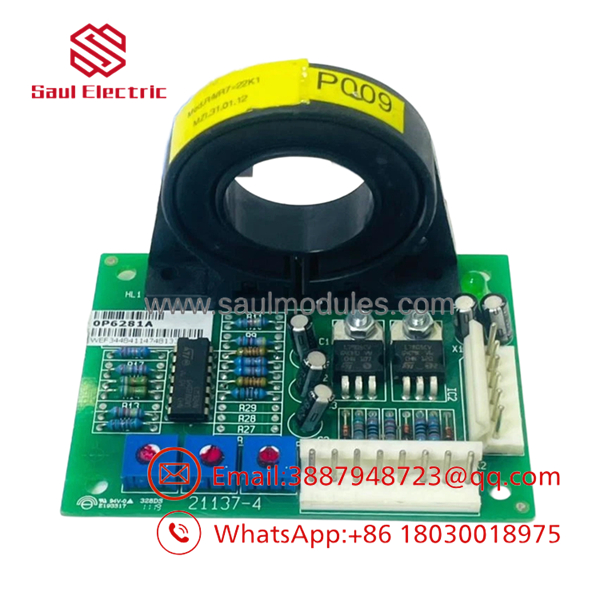

0P6281A

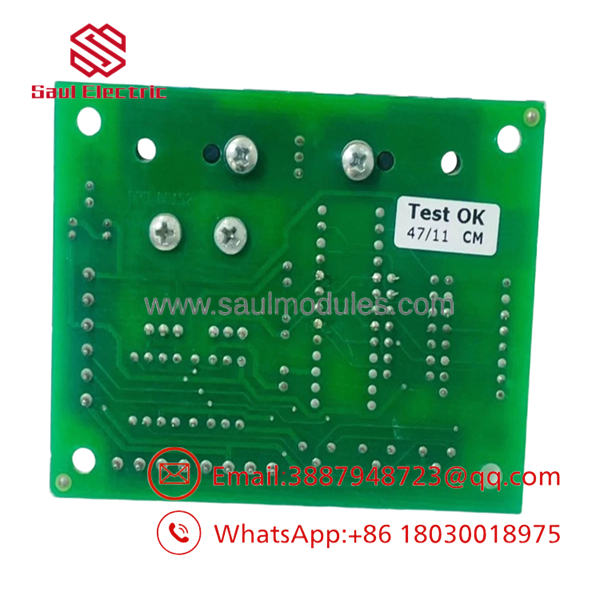

0P6281A

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual GUTOR-compatible power racks before they ship to your job site. Our 5-step bench verification process includes:

1. Inbound Visual & Optical Inspection: Microscopic audit of PCB traces, solder joints, edge connector fingers, and onboard components for signs of corrosion or heat stress.
2. Conformal Coating Audit: Verification that the protective industrial seal remains completely intact to shield sensitive signal paths from harsh environments.
3. Static Electrical Testing: Multi-point resistance checks across power rails and gate control channels to guarantee zero internal short circuits.
4. Live Rack Diagnostic Handshake: Board insertion into our bench-test setup to verify bus communication, signal processing timing, and power-up self-test completion.
5. ESD-Safe Sealed Packaging: Deep cleaned, labeled with exact hardware revision numbers, and vacuum-sealed inside anti-static ESD shielding bags with custom foam boxing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Photograph DIP Switches & Jumpers First: Before pulling the failed 0P6281A board from the card cage, take a crisp, high-resolution photo of every DIP switch block, jumper pin, and revision tag. GUTOR logic cards are utilized across multiple cabinet configurations; if your replacement board’s jumper settings do not mirror your original unit, the system will fail to boot or throw configuration mismatch alarms.
• ❗ De-Energize the DC Bus Completely: Never pull or slide this card in while the UPS cabinet is live—even if you are running on static bypass. High DC voltages exist across internal distribution backplanes. Always open input breakers, isolate the battery bank, verify zero voltage on bus capacitors, and wear a grounded ESD wrist strap before touching the PCB.
• ⚠️ Inspect the Card Cage Guide Rails: Check for dust buildup or bent backplane pins inside the chassis before sliding the new 0P6281A board into position. Forcing a misaligned card will bend backplane pins and cause catastrophic shorts upon re-powering the cabinet.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GUTOR 0P6281A control board hot-swappable?

A: No. Pulling this logic card while the system is energized will crash the central processor, drop the inverter, and potentially cause an electrical flashover across the backplane edge connectors. Always transfer the UPS to Maintenance Bypass and completely de-energize the cabinet before board removal.

Q: How do I verify this board is compatible with my GUTOR system?

A: Check the silk-screened part number printed directly on the circuit board surface or the white barcode label stuck on the PCB edge. If it reads 0P6281A (or OP6281A), this unit is a direct form, fit, and function replacement.

Q: Are these replacement units factory new or pre-owned surplus?

A: We stock a mix of New Surplus (unused factory spares) and fully reconditioned, bench-tested surplus units. Every single board—regardless of condition classification—undergoes complete physical and live electrical verification prior to shipping.

Q: What warranty coverage comes with this replacement board?

A: We back all industrial automation and UPS replacement components with a comprehensive 12-month full replacement warranty. If the 0P6281A board exhibits any operational defects or throws system fault codes within one year of purchase, we will replace it or issue a full refund.
