GUTOR 21382-2 Circuit Board

Description

Product Introduction

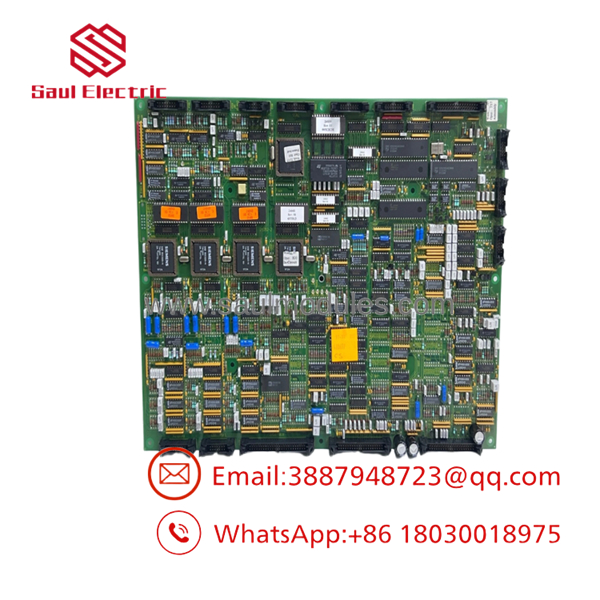

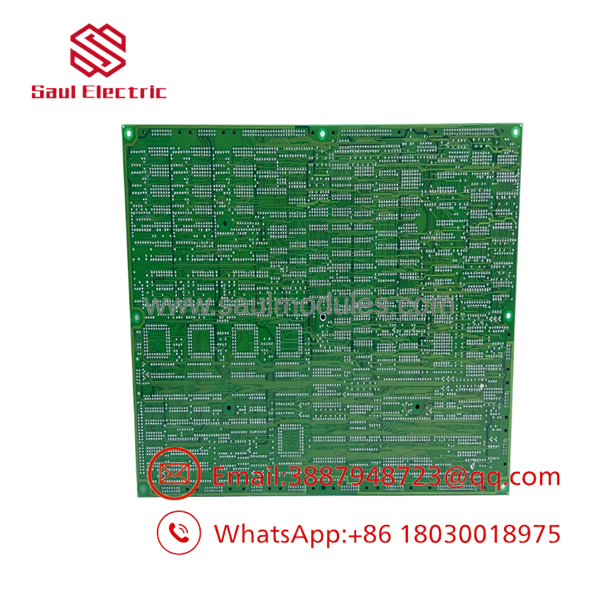

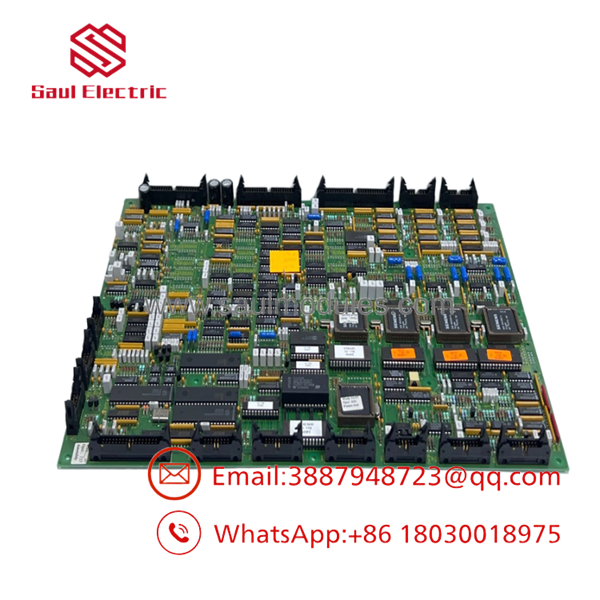

The GUTOR 21382-2 is an internal control and logic interface printed circuit board engineered specifically for GUTOR heavy-duty industrial uninterruptible power supply (UPS) systems, including the PEW, PDW, SDC, and WEW cabinet series. Positioned directly within the cabinet’s internal card cage, this board conditions analog feedback signals from current and voltage sensors, processes real-time state logic, and coordinates critical firing sequences between the power stage drivers and the central system processor.

Built for continuous operation in demanding industrial environments like oil refineries and power generation stations, the 21382-2 features hardened trace pathways protected by heavy industrial conformal coating against humidity, chemical vapors, and thermal stress. Swapping a damaged or faulting 21382-2 module clears persistent backplane communication alarms, resolves gate drive lockout codes, and restores full operational redundancy to mission-critical backup power trains.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 1:30 AM on a freezing winter night at a power generation plant. The main control room receives a high-priority alert: the primary 80kVA GUTOR UPS system supporting the boiler safety interlock loops has thrown a communication bus failure and transferred the load to static bypass. A quick thermal diagnostic check inside the cabinet card rack reveals signal drift and flickering fault LEDs on the 21382-2 controller board, caused by degraded surface-mount capacitors after years of nonstop service.

• Fossil Fuel & Nuclear Facilities – Control Room Infrastructure – Replaces aging controller boards in long-service-life GUTOR cabinets without replacing the entire power rack.
• Petrochemical Refineries – Critical DCS Power Backup – Stabilizes internal control loops to prevent sudden plant trips during utility voltage sags.
• Offshore Energy Platforms – Safety System UPS Maintenance – Restores reliable logic execution and signal stability under high-humidity marine operating conditions.

Field Case Study

A midstream gas compressor station experienced recurring, unprovoked “Gate Driver Lockout” alarms on a GUTOR PEW cabinet during high ambient summer temperatures. Field diagnostics identified thermal degradation on the original 21382-2 interface board. Because a total cabinet upgrade would require weeks of planning and massive capital expenditure, field engineers sourced a fully pre-tested 21382-2 replacement board. During a brief 20-minute planned maintenance window on static bypass, technicians swapped the module, transferred jumper settings, and re-synchronized the inverter—clearing all latched fault logs immediately and passing a 100% step-load transfer test.

21382-2

21382-2

21382-2

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual GUTOR-compatible power racks before they ship to your job site. Our 5-step bench verification process includes:

1. Inbound Visual & Optical Inspection: Microscopic audit of PCB traces, solder joints, edge connector fingers, and onboard components for signs of corrosion or heat stress.
2. Conformal Coating Audit: Verification that the protective industrial seal remains completely intact to shield sensitive signal paths from harsh environments.
3. Static Electrical Testing: Multi-point resistance checks across power rails and gate control channels to guarantee zero internal short circuits.
4. Live Rack Diagnostic Handshake: Board insertion into our bench-test setup to verify bus communication, signal processing timing, and power-up self-test completion.
5. ESD-Safe Sealed Packaging: Deep cleaned, labeled with exact hardware revision numbers, and vacuum-sealed inside anti-static ESD shielding bags with custom foam boxing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Photograph DIP Switches & Jumpers First: Before pulling the failed 21382-2 board from the rack, take a sharp, high-resolution photo of every DIP switch block, jumper pin, and revision tag. GUTOR logic cards are used in various power configurations; if your replacement board’s jumper settings do not mirror your original unit, the system will fail to boot or throw configuration mismatch alarms.
• ❗ De-Energize the DC Bus Completely: Never pull or slide this card in while the UPS cabinet is live—even if you are running on static bypass. High DC voltages exist across internal distribution backplanes. Always open input breakers, isolate the battery bank, verify zero voltage on bus capacitors, and wear a grounded ESD wrist strap before touching the PCB.
• ⚠️ Inspect the Card Cage Guide Rails: Check for dust buildup or bent backplane pins inside the chassis before sliding the new 21382-2 board into position. Forcing a misaligned card will bend backplane pins and cause catastrophic shorts upon re-powering the cabinet.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GUTOR 21382-2 control board hot-swappable?

A: No. Pulling this logic card while the system is energized will crash the central processor, drop the inverter, and potentially cause an electrical flashover across the backplane edge connectors. Always transfer the UPS to Maintenance Bypass and completely de-energize the cabinet before board removal.

Q: How do I verify this board is compatible with my GUTOR system?

A: Check the silk-screened part number printed directly on the circuit board surface or the white barcode label stuck on the PCB edge. If it reads 21382-2, this unit is a direct form, fit, and function replacement.

Q: Are these replacement units factory new or pre-owned surplus?

A: We stock a mix of New Surplus (unused factory spares) and fully reconditioned, bench-tested surplus units. Every single board—regardless of condition classification—undergoes complete physical and live electrical verification prior to shipping.

Q: What warranty coverage comes with this replacement board?

A: We back all industrial automation and UPS replacement components with a comprehensive 12-month full replacement warranty. If the 21382-2 board exhibits any operational defects or throws system fault codes within one year of purchase, we will replace it or issue a full refund.
