GUTOR 640-0573 Logic Board

Description

Product Introduction

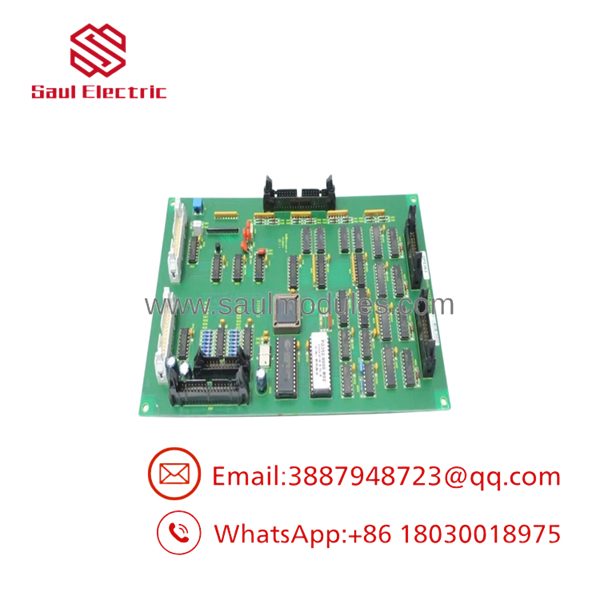

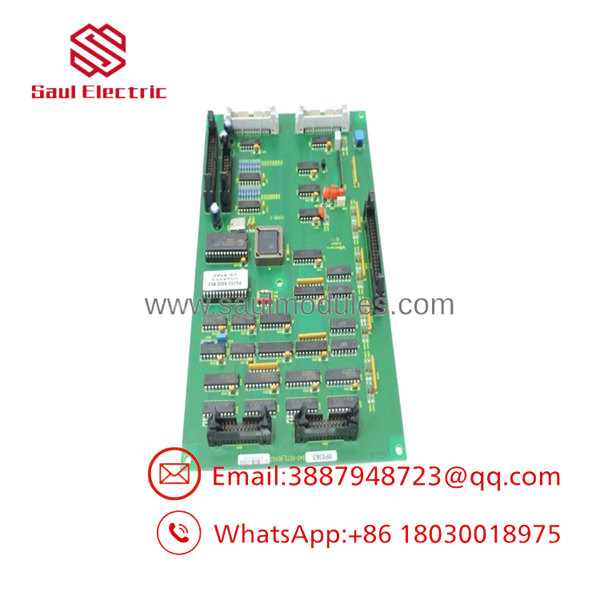

The GUTOR 640-0573 is an internal control and logic interface printed circuit board engineered specifically for heavy-duty GUTOR industrial uninterruptible power supply (UPS) systems, including the PEW, PDW, SDC, and WEW cabinet series. Positioned directly within the cabinet’s internal card rack, this board conditions analog feedback signals, processes real-time system state logic, and coordinates critical firing sequences between the power stage drivers and the central system processor.

Designed for continuous operation in harsh industrial environments like petrochemical refineries and power generation plants, the 640-0573 features hardened circuit pathways protected by heavy conformal coating against atmospheric moisture, chemical vapors, and thermal stress. Swapping a damaged or faulting 640-0573 card clears persistent backplane communication alarms, resolves gate drive lockout codes, and restores full operational redundancy to mission-critical backup power trains.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 1:45 AM during a torrential thunderstorm at an offshore oil platform. The primary GUTOR industrial UPS supporting the main safety instrumented system (SIS) throws a critical internal logic communication fault. The unit transfers the critical load to static bypass, leaving process controls vulnerable to utility power sags. A quick visual check inside the cabinet card cage reveals thermal drift and an intermittent fault LED flicker on the 640-0573 logic board.

• Oil & Gas Offshore Platforms – Safety System UPS Support – Restores reliable logic execution and signal stability under high-humidity marine operating conditions.
• Petrochemical Refineries – Hazardous Area DCS Backup – Prevents sudden process unit trips by stabilizing internal control feedback signals across the UPS power stack.
• Power Generation Facilities – Turbine Control Room Infrastructure – Replaces aging controller boards in long-service-life GUTOR cabinets without replacing the entire power rack.

Field Case Study

A chemical processing plant experienced recurring, intermittent “Control Loop Out of Range” warnings on a 120kVA GUTOR PEW unit whenever ambient cabinet temperatures rose during summer peaks. Diagnostics traced the fault to aging surface-mount components on the original 640-0573 control board after 12 years of nonstop runtime. Sourcing a fully pre-tested 640-0573 replacement board allowed field engineers to schedule a quick 25-minute maintenance window on static bypass. Technicians swapped the card, duplicated jumper configurations, and re-synchronized the inverter—clearing all latched fault logs permanently.

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual GUTOR-compatible power racks before they ship to your job site. Our 5-step bench verification process includes:

1. Inbound Visual & Optical Inspection: Microscopic evaluation of PCB traces, solder joints, edge connector fingers, and onboard components for signs of corrosion or heat stress.
2. Conformal Coating Audit: Verification that the protective industrial seal remains completely intact to shield sensitive signal paths from harsh environments.
3. Static Electrical Testing: Multi-point resistance checks across power rails and gate control channels to guarantee zero internal short circuits.
4. Live Rack Diagnostic Handshake: Board insertion into our bench-test setup to verify bus communication, signal processing timing, and power-up self-test completion.
5. ESD-Safe Sealed Packaging: Deep cleaned, labeled with exact hardware revision numbers, and vacuum-sealed inside anti-static ESD shielding bags with custom foam boxing.

640-0573

640-0573

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Photograph DIP Switches & Jumpers First: Before pulling the failed 640-0573 card out of the rack card cage, take a crisp, high-resolution photo of every DIP switch block, jumper pin, and revision tag. GUTOR logic boards are utilized across multiple cabinet configurations; if your replacement board’s jumper settings do not match your original unit, the system will fail to boot or throw configuration mismatch faults.
• ❗ De-Energize the DC Bus Completely: Never pull or slide this card in while the UPS cabinet is live—even if you are running on static bypass. High DC voltages exist across internal distribution backplanes. Always open input breakers, isolate the battery bank, verify zero voltage on bus capacitors, and wear a grounded ESD wrist strap before touching the PCB.
• ⚠️ Inspect the Card Cage Guide Rails: Check for dust buildup or bent backplane pins inside the chassis before sliding the new 640-0573 board into position. Forcing a misaligned card will bend backplane pins and cause catastrophic shorts upon re-powering the cabinet.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GUTOR 640-0573 control board hot-swappable?

A: No. Pulling this logic card while the system is energized will crash the central processor, drop the inverter, and potentially cause an electrical flashover across the backplane edge connectors. Always transfer the UPS to Maintenance Bypass and completely de-energize the cabinet before board removal.

Q: How do I verify this board is compatible with my GUTOR system?

A: Check the silk-screened part number printed directly on the circuit board surface or the white barcode label stuck on the PCB edge. If it reads 640-0573, this unit is a direct form, fit, and function replacement.

Q: Are these replacement units factory new or pre-owned surplus?

A: We stock a mix of New Surplus (unused factory spares) and fully reconditioned, bench-tested surplus units. Every single board—regardless of condition classification—undergoes complete physical and live electrical verification prior to shipping.

Q: What warranty coverage comes with this replacement board?

A: We back all industrial automation and UPS replacement components with a comprehensive 12-month full replacement warranty. If the 640-0573 board exhibits any operational defects or throws system fault codes within one year of purchase, we will replace it or issue a full refund.
