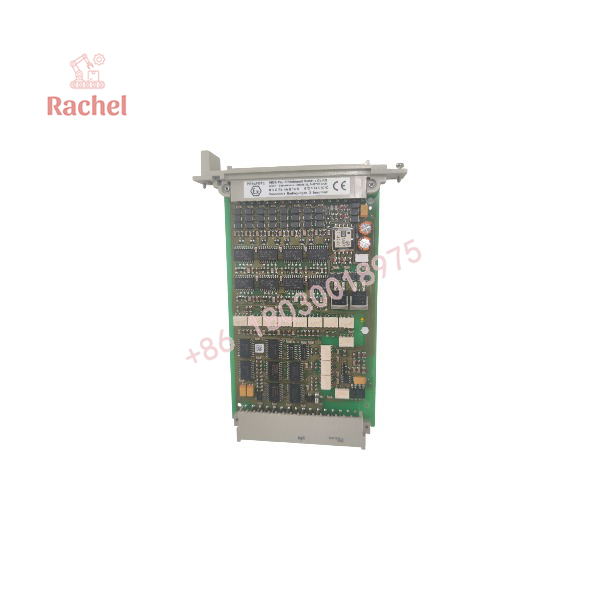

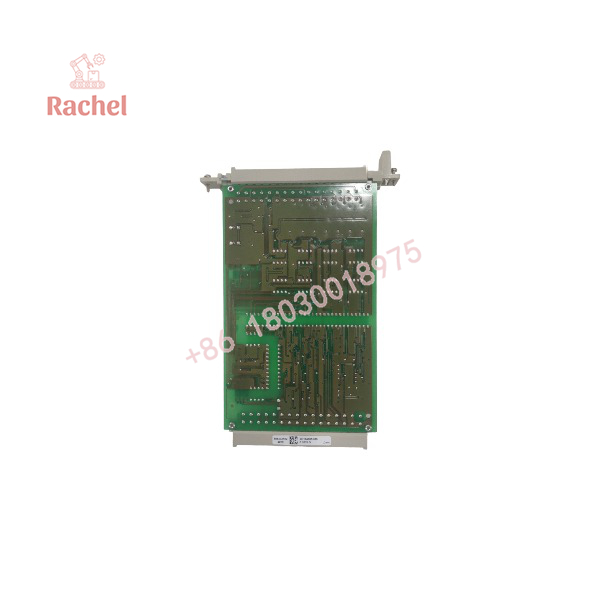

HIMA F3331 8-Channel Safety-Related Digital Output Module

Description

Core Product Summary

The HIMA F3331 is an eight-channel, safety-related digital output module designed for compatible HIMA automation and safety control systems. Manufacturer documentation identifies it as a SIL 3 output module, with each channel rated for loads up to 500 mA and 12 W for specified resistive or inductive loads. The module also supports short-circuit protection, output-signal monitoring, and line-fault detection.

The F3331 is used to interface control-system logic with compatible field loads. Before selecting it as a replacement, engineers should confirm the output voltage, load characteristics, wiring arrangement, rack compatibility, and approved safety configuration.



Key Technical Specifications

Parameter	Specification
Manufacturer	HIMA
Model	F3331
Product type	Safety-related digital output module
Number of channels	8 digital outputs
Safety classification	SIL 3, as listed in manufacturer documentation
Output voltage	24 V DC nominal; verify the applicable system documentation
Output current	Up to 500 mA per channel
Load rating	Up to 12 W for specified resistive or inductive loads
Lamp load	Up to 4 W
Short-circuit protection	Yes
Maximum internal voltage drop	2 V at 500 mA load
Short-circuit current	0.75–1.5 A
Line-break detection current	0.5–9.5 mA
Maximum output leakage current	350 µA
Maximum reset-state output voltage	1.5 V
Undervoltage trip threshold	≤ 16 V
Maximum test-signal duration	200 µs
5 V DC current consumption	130 mA
Additional 24 V DC current consumption	180 mA
Rack space requirement	4 TE
System association	HIMA H41/H51 and related documented control-system configurations; verify exact compatibility

Confirm all electrical ratings against the applicable F3331 datasheet and hardware revision before installation.



Main Features and Engineering Advantages

Eight-channel digital output control

The F3331 provides eight output channels for switching compatible field loads. It can serve as the interface between safety-control logic and devices such as relays, solenoid valves, and other appropriately rated actuators.

Short-circuit protection

The documented output design includes short-circuit protection. The specified current figures should not be interpreted as permission to operate continuously under fault conditions; load sizing and protective measures must follow the manufacturer’s instructions.

Output diagnostics and line monitoring

The module supports output-signal readback and line monitoring. These functions can help identify wiring faults or discrepancies between commanded and observed output states, subject to the configured application and supported diagnostic conditions.

Safety-related operation

The F3331 is listed as a SIL 3 safety-related output module. The achieved safety integrity of a complete function depends on the entire safety loop, including controller architecture, field wiring, connected devices, application logic, and validation.

Compact rack integration

Its four-TE space requirement supports installation in compatible HIMA I/O racks. Confirm the rack’s mechanical layout, power budget, and system-specific compatibility before replacing an existing module.

System Compatibility and Integration Requirements

Before ordering or installing the HIMA F3331, verify:

• Controller and rack: Confirm that the target HIMA system supports the module and its hardware revision.
• Field supply: Verify the nominal 24 V DC output supply and its permissible operating range in the applicable documentation.
• Load characteristics: Check the load’s steady-state current, inrush current, inductive characteristics, and power demand.
• Wiring resistance: Observe the documented maximum permissible line resistance, including the supply and output conductors.
• Diagnostics: Confirm that the connected load and wiring arrangement support the diagnostic functions required by the application.
• Safety requirements: Check the approved safety architecture and application-specific validation requirements.
• Replacement details: Compare the existing module label, connector arrangement, and hardware revision before substitution.

Do not assume that two eight-channel HIMA output modules are interchangeable simply because their channel counts match.



Installation and Connection Notes

The F3331 requires a compatible rack and field-wiring arrangement. Its documented four-TE width helps establish the mechanical space requirement, but the applicable hardware manual should be used for the complete mounting and connection details.

Recommended checks include:

1. Record the installed module’s full designation and revision.
2. Isolate relevant power supplies and apply the site’s lockout/tagout procedure.
3. Verify field voltage, load current, wiring polarity, and connector pin assignments.
4. Check the power budget for both the logic supply and field-load supply.
5. Confirm that the selected load is within the channel’s current and power ratings.
6. Perform the prescribed functional tests and safety validation before returning equipment to service.

For inductive loads, follow the manufacturer’s requirements for suppression and load connection. Do not introduce external components that could affect diagnostic behavior without confirming their suitability.



Detailed Product Overview

Output switching in safety-related control systems

The F3331 is an eight-channel digital output module that interfaces control-system commands with compatible field loads. Its documented 500 mA channel rating and 12 W load rating for specified resistive or inductive loads provide the starting point for electrical selection.

The actual suitability of a channel depends on more than its nominal current rating. Engineers must consider load startup behavior, inductive energy, cable resistance, supply conditions, and the module’s diagnostic requirements. These checks are particularly important when outputs operate actuators or other devices that influence a safety function.

Monitoring and fault detection

The module’s documented diagnostic capabilities include output readback and line monitoring. These features can support fault detection, but the diagnostic coverage achieved in an installation depends on the wiring, connected load, configuration, and applicable system design.

A line-break detection range is not a universal guarantee that every open circuit will be detected under every load condition. Check the minimum load and other conditions specified by the manufacturer before relying on line diagnostics.

Replacement and lifecycle maintenance

When maintaining an existing HIMA system, identify the module by its complete designation and verify the hardware revision. Compare the original and replacement wiring arrangements, check the power-supply requirements, and validate the connected loads before commissioning.

The module’s SIL 3 classification should be treated as a component-level specification, not proof that an entire safety instrumented function meets SIL 3. The complete system must satisfy its applicable design, verification, and validation requirements.



Applications and System Role

The HIMA F3331 is intended for digital output switching in compatible safety-related control installations.

Typical application contexts include:

• Process safety systems: Switching appropriately rated field devices in approved safety functions.
• Valve control: Operating compatible solenoid valves within specified electrical limits.
• Relay and actuator control: Providing discrete output commands to suitable interface devices.
• Plant shutdown systems: Supporting output switching within a validated shutdown architecture.
• Legacy system maintenance: Replacing an existing F3331 in a compatible HIMA installation.

These examples do not establish suitability for every safety function. Verify the load, electrical interface, system configuration, and safety requirements for the actual application.



Frequently Asked Questions

What is the HIMA F3331?

It is an eight-channel, safety-related digital output module for compatible HIMA control systems.

How many output channels does the F3331 have?

The module has eight digital output channels.

What is the maximum output current per channel?

The documented rating is up to 500 mA per channel, subject to the specified load and operating conditions.

What load types can it operate?

Documentation specifies resistive and inductive loads up to 500 mA and 12 W, plus lamp loads up to 4 W. Confirm compatibility with the particular load before connection.

Does the F3331 support short-circuit protection?

Yes. The documented design includes short-circuit protection. The module and connected circuit must still be operated within the manufacturer’s specified limits.

Is the F3331 SIL 3 rated?

Manufacturer documentation lists the F3331 as a safety-related SIL 3 output module. The complete safety function must be assessed and validated independently.

What is the rack space requirement?

The documented requirement is four TE. Verify the exact rack and installation instructions for the target system.

What should be checked before ordering a replacement?

Confirm the full model designation, hardware revision, rack compatibility, field supply, output load ratings, wiring, and required safety functions.



Procurement Checklist

For a quotation or replacement request, prepare:

• Model: HIMA F3331
• Module type: Eight-channel safety-related digital output
• Required quantity
• Existing module label and hardware revision
• HIMA controller and rack information
• Field supply voltage and connected-load details
• Connector and wiring information
• Required condition and delivery requirements

Confirm the exact order designation against the installed module and applicable documentation before purchase. This is particularly important when replacing a safety-related output module, where electrical compatibility alone does not establish suitability for the approved safety configuration.
