Description
Core Product Summary
The HIMA DI3201 (official designation X-DI3201, order code 985210201) is a 32-channel digital input module designed for HIMA HIMax and related safety systems. It acquires 24 V DC discrete field signals from devices such as emergency-stop buttons, limit switches, proximity sensors and relay contacts, and transmits the validated status to the safety controller.
The module supports safety applications up to SIL 3 and includes per-channel diagnostics for open-circuit and short-circuit detection. It is configured with HIMA SILworX engineering software and is intended for installation in HIMax system racks.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Safety digital input module |
| Manufacturer | HIMA |
| Model | X-DI3201 (DI3201) |
| Order Code | 985210201 |
| Number of Channels | 32 digital inputs |
| Nominal Input Voltage | 24 V DC |
| System Compatibility | HIMax X-series / F-series safety controllers |
| Safety Capability | Up to SIL 3 (IEC 61508 / IEC 61511) |
| Diagnostics | Open-circuit, short-circuit detection |
| Configuration Software | SILworX |
| Protection Class | IP20 (cabinet installation) |
| Mounting | Slot-in module for HIMax baseplate / rack |
Engineering Selection Highlights
- High-density 32-channel digital input module for safety instrumented systems.
- Designed for 24 V DC field signals commonly used with emergency stops, limit switches and process interlocks.
- Supports safety integrity up to SIL 3 according to IEC 61508 and IEC 61511.
- Integrated diagnostics detect open circuits and short circuits to improve fault visibility.
- Compatible with HIMA HIMax safety controllers and engineered with SILworX software.
- Suitable for cabinet installation (IP20) in process industry safety applications.
- Hot-swap capability is supported in appropriate HIMax rack configurations.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Safety Controller | HIMA HIMax (X-series / F-series) | Module installs in system rack / baseplate |
| Engineering Tool | HIMA SILworX | Required for configuration, filtering and diagnostics |
| Field Signals | 24 V DC discrete (dry contact or active) | Typical devices: E-stops, limit switches, proximity sensors |
| Termination | Compatible HIMA terminal assemblies / boards | Field wiring via dedicated termination hardware |
| Power | Supplied via system backplane | Follow HIMA rack power guidelines |
| Safety Architecture | Supports redundant HIMax configurations | Suitable for SIL 3 applications when applied correctly |
Dimensions, Mounting & Connection Notes
The X-DI3201 is a slot-in module for HIMax system racks or baseplates. Field signals are connected via associated HIMA terminal assemblies or termination boards. Installation is intended for control-cabinet environments (IP20). Status indication is provided by front-panel LEDs. Module replacement (including hot-swap where supported by the rack configuration) must follow HIMA procedures and safety system rules.

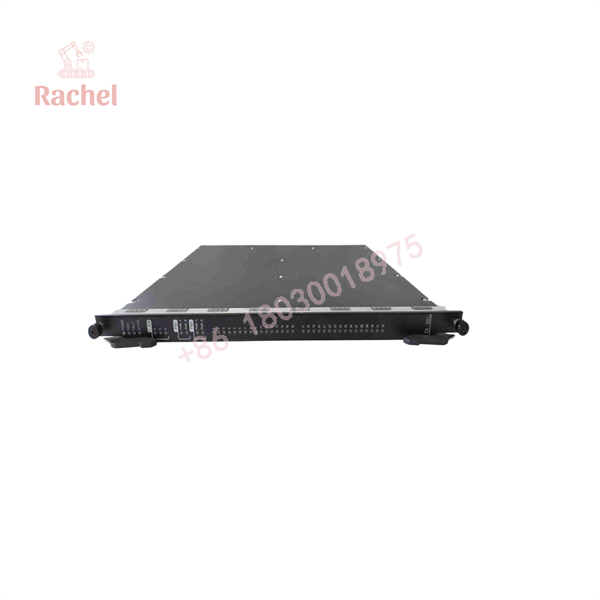

X-DI3201

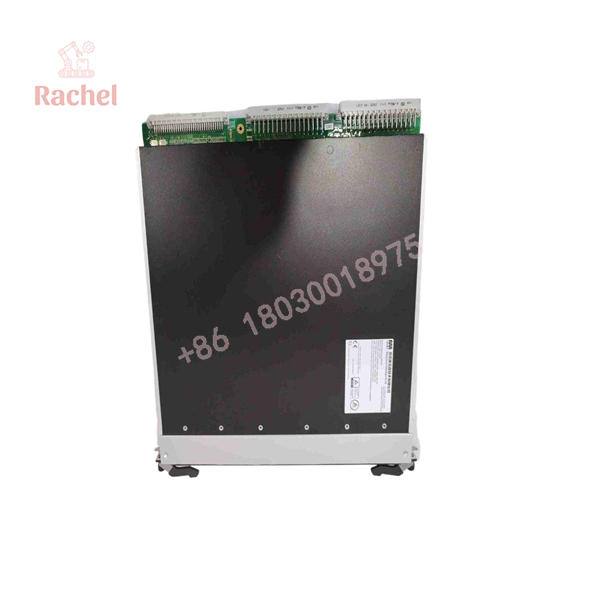

X-DI3201
Detailed Product Overview
The HIMA DI3201, officially designated X-DI3201 with order code 985210201, is a 32-channel digital input module for HIMA HIMax safety systems. It is engineered to acquire discrete 24 V DC field signals and present them reliably to the safety logic solver.
Typical field devices connected to the module include emergency-stop buttons, limit and position switches, proximity sensors, and relay contacts from safety-related equipment. The module processes these signals and transfers the validated channel status to the HIMax controller via the system backplane.
Key functional characteristics include:
- 32 digital input channels for high-density signal acquisition.
- Nominal 24 V DC input rating suitable for standard industrial discrete signals.
- Diagnostic functions that detect open-circuit and short-circuit conditions on the input circuits.
- Compatibility with HIMA SILworX configuration software for parameter setting, filter times and diagnostic handling.
- Support for safety applications up to SIL 3 when applied within a correctly engineered HIMax system.
The module is intended for installation in HIMax system racks inside control cabinets (IP20). Power is supplied through the backplane. Front-panel LEDs provide local status indication for the module and channels. In appropriate rack configurations, the module supports hot-swap replacement to minimize impact on unrelated safety loops.
Correct application requires adherence to HIMA system design guidelines, proper selection of termination hardware, and configuration of the safety application in SILworX. The module forms part of a complete safety instrumented system and must be used in accordance with the relevant safety standards and the manufacturer’s documentation.
Applications & System Role
The DI3201 / X-DI3201 functions as a high-density digital input interface in safety instrumented systems. It collects critical binary signals used in emergency shutdown (ESD), burner management, fire & gas, and process interlock applications in oil & gas, chemical, power generation and other process industries.
FAQ
What is the HIMA DI3201?
It is the HIMA X-DI3201 (order code 985210201), a 32-channel 24 V DC digital input module for HIMax safety systems.
How many input channels does it have?
The module provides 32 digital input channels.
What is the nominal input voltage?
24 V DC.
Is the module suitable for SIL 3 applications?
Yes, it is designed for use in safety instrumented systems up to SIL 3 when applied correctly within a HIMA HIMax architecture.
Which software is used for configuration?
HIMA SILworX engineering software.
What diagnostics are available?
The module supports detection of open-circuit and short-circuit conditions on the input channels.
