Description
Core Product Summary
The HIMA F3501030 (order code 982200416) is a compact, high-performance safety-related controller belonging to the HIMA HIMatrix F35 product family. Engineered for use in distributed safety-instrumented systems (SIS), it provides reliable control and monitoring for high-integrity applications such as emergency shutdown (ESD) systems and fire and gas protection.
The unit features integrated I/O interfaces within a self-contained modular architecture, allowing it to process digital inputs, analog inputs, and counter signals locally. System configuration, programming, and safety logic management are performed using the HIMA SILworX engineering tool. Designed for deployment in demanding industrial environments—including the petrochemical, power generation, and general automation sectors—the controller complies with rigorous functional safety standards to ensure secure processing and reliable fault tolerance.
Key Technical Specifications
| Specification Parameter | Verified Value / Detail |
| Product Type | Compact Safety Controller / PLC |
| System Family | HIMatrix F35 Series |
| Part / Order Number | F3501030 (982200416) |
| Operating Voltage | 24 V DC |
| Input/Output Interfaces | Integrated Digital Inputs (DI), Analog Inputs (AI), Digital Outputs (DO), and Counters (CO) |
| Communication Ports | 2x 10/100Base-T Ethernet, Serial/Modbus communication interfaces (FB1, FB2, FB3) |
| Programming Software | SILworX |
| Operating Temperature Range | 0°C to +60°C |
| Safety Integrity Level | Certified for functional safety up to SIL 3 (IEC 61508) |
| Hazardous Area Approvals | ATEX (Ex II 3 G Ex nA II T4 X) |
Detailed Product Overview
The HIMA F3501030 acts as a versatile edge controller within modern automation networks, combining processing power and integrated signal handling into a single compact footprint. Its capacity to handle mixed I/O configurations directly on the unit minimizes the need for extensive external signal conditioning modules, streamlining layout requirements in space-constrained control cabinets.
Communication capabilities are built around dual Ethernet interfaces alongside serial connection slots, facilitating safe ethernet-based peer-to-peer data exchange and seamless connection to higher-level supervisory control and data acquisition (SCADA) systems or engineering workstations running SILworX. The controller’s certified SIL 3 architecture ensures that any internal hardware or software faults are managed deterministically, forcing controlled outputs into a safe state when anomalies are detected.

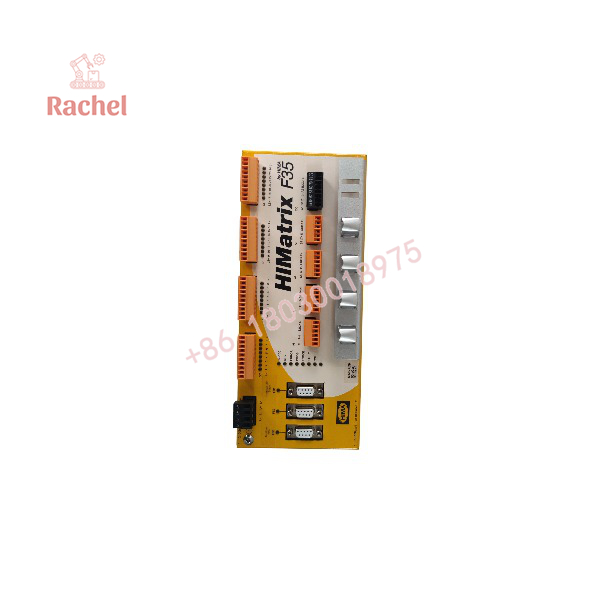

F3501030 (982200416)

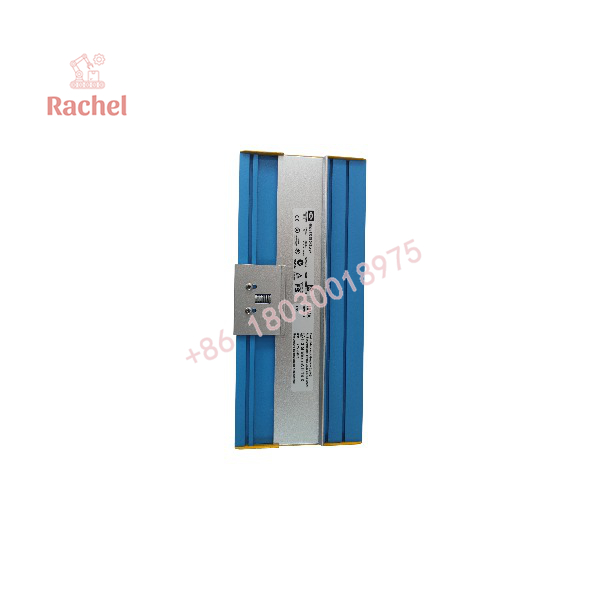

F3501030 (982200416)
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Controller Platform | HIMA HIMatrix F35 Series | Designed as an autonomous or distributed node within the HIMatrix system architecture. |
| Engineering Tool | HIMA SILworX Software | Mandatory for hardware configuration, logic design, and safety application deployment. |
| Network Infrastructure | 10/100Base-T Ethernet / Modbus | Utilized for controller communication, diagnostics, and network integration. |
| Power Supply | 24 V DC nominal industrial supply | Requires a stable power source complying with system electrical specifications. |
Dimensions, Mounting & Connection Notes
- Mounting Method: DIN-rail mountable compact metal housing with integrated plastic faceplate components.
- Field Terminations: Equipped with removable terminal blocks to facilitate efficient wiring, maintenance, and module replacement.
- Physical Ports: Standard RJ45 Ethernet connectors and DB9 serial connection interfaces positioned for accessibility.
- Environmental Limits: Designed for operation within a temperature range of 0°C to +60°C in non-condensing industrial environments.
FAQ
What is the HIMA F3501030?
The HIMA F3501030 (order number 982200416) is a compact, SIL 3 certified safety controller from the HIMatrix product family, built for distributed safety instrumented systems.
Which software is used to program this controller?
It is programmed and configured using the HIMA SILworX engineering environment.
What safety rating does the F3501030 hold?
It is certified for functional safety up to Safety Integrity Level 3 (SIL 3) in accordance with IEC 61508 standards.
What communication interfaces are available on the module?
The controller includes dual 10/100Base-T Ethernet ports and serial communication connections.
Can the module be installed in hazardous locations?
Yes, it carries ATEX approval (Ex II 3 G Ex nA II T4 X) for use in designated hazardous industrial environments, subject to the conditions specified in the official technical manual.
