Description
Core Product Summary
The HIMA F35 is a compact, safety-related programmable controller within the HIMatrix product family, engineered for critical industrial automation and railway applications. Certified for functional safety up to SIL 3 (IEC 61508) and PL e (EN ISO 13849-1), this standalone controller handles safety-critical interlocking, monitoring, and shutdown sequences in demanding process environments.
Housed in a rugged metal enclosure designed for standard DIN/panel mounting, the F35 integrates a versatile mix of onboard I/O: 24 digital inputs, 8 digital outputs, 8 analog inputs, and 2 high-speed counters. System communication and engineering configuration are driven by dual Ethernet ports supporting safeethernet protocols, alongside modular support for fieldbus options like PROFIBUS-DP. It operates on a standard 24 V DC industrial supply and is fully certified for deployment in Zone 2 hazardous areas.
Key Technical Specifications
| Parameter | Specification Value |
| Product Type | Safety-Related Programmable Controller |
| System Series | HIMatrix F3 Series |
| Safety Integrity & Compliance | SIL 3 (IEC 61508, IEC 61511, IEC 62061), PL e / Cat. 4 (EN ISO 13849-1) |
| Digital Inputs (DI) | 24 non-galvanically isolated channels (24 V DC sink logic, Type 1) |
| Digital Outputs (DO) | 8 non-galvanically isolated channels (common ground L-, up to 2 A switching) |
| Analog Inputs (AI) | 8 channels (12-bit digital resolution) |
| High-Speed Counters | 2 independent 24-bit counter channels (supporting 5 V / 24 V levels up to 100 kHz) |
| Communication Interfaces | 4 x RJ-45 Ethernet ports (10/100Base-T with integrated switch); D-sub serial ports (PROFIBUS / Modbus) |
| Operating Voltage | 24 V DC nominal (-15% to +20% tolerance) |
| Power Consumption | Max. 9 A (under full load); Idle approx. 0.5 A |
| Enclosure Rating | IP20 (metal housing) |
| Operating Temperature Range | 0 °C to +60 °C (Temperature Class T4 for Zone 2) |
| Dimensions (W x H x D) | 257 x 114 x 97 mm (without plugs) |
| Unit Weight | Approx. 1.2 kg |
Detailed Product Overview
The HIMA F35 functions as an intelligent safety controller capable of executing localized safety logic independently or as part of a distributed safety network. Its onboard 24 digital inputs sample field contact states and convert them internally into precise analog measurements before applying configurable software thresholds, allowing enhanced diagnostics over standard discrete inputs. The 8 analog input channels feature 12-bit resolution to monitor continuous safety parameters such as pressure, temperature, or level.
In addition to standard discrete processing, the unit includes two independent 24-bit counter inputs configurable for frequency counting, rotational speed tracking, or 3-bit Gray code absolute encoder decoding. Program execution and system configuration are managed via engineering environments such as SILworX or ELOP II Factory. The controller communicates safety-relevant data securely across Ethernet architectures using HIMA’s proprietary safeethernet protocol while isolating diagnostic and standard plant data streams.

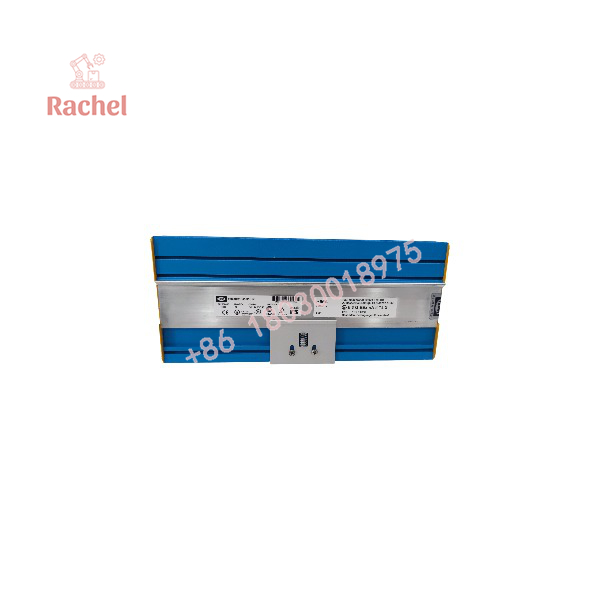

F35

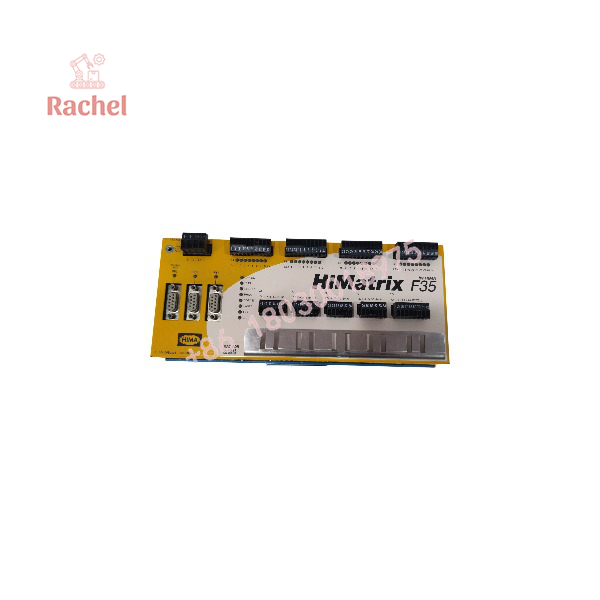

F35
Dimensions, Mounting & Connection Notes
- Physical Dimensions: Measures 257 mm wide x 114 mm high x 97 mm deep (excluding plug connectors and earthing hardware).
- Weight: Approximately 1.2 kg.
- Mounting Configuration: Compact metal housing engineered for panel or DIN rail mounting inside control cabinets, providing IP20 protection.
- Wiring Terminations: Uses removable plug-in screw or clamp terminal blocks for field signal wiring, keeping power, ground, and I/O segregated.
- Grounding and Shielding: Requires a low-impedance connection to the structural frame ground via the dedicated earthing screw to satisfy EMC noise immunity requirements.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Network Architecture | safeethernet protocol over 10/100Base-T Ethernet | Integrates natively into distributed HIMatrix safety loops via dual-port switch layouts. |
| Engineering Software | SILworX or ELOP II Factory | Required for application programming, hardware configuration, and safety validation. |
| Power Supply Requirements | 24 V DC power source with safe insulation (IEC 61131-2) | Must be paired with an external 10 A time-lag (T) protection fuse. |
| Hazardous Area Mounting | Zone 2 hazardous locations | Requires installation inside an enclosure meeting minimum IP54 ratings appropriate for the environment. |
| Fieldbus Expansion | PROFIBUS-DP and Modbus master/slave options | Expandable via integrated D-sub serial interface ports depending on the exact model variant. |
FAQ
What is the HIMA F35?
The HIMA F35 is a compact, programmable safety-related controller from the HIMatrix family, built for SIL 3-rated safety applications in industrial automation.
What inputs and outputs does the F35 provide?
It features 24 digital inputs, 8 digital outputs, 8 analog inputs, and 2 high-speed counter channels.
What safety certifications does the controller hold?
It is certified by TÜV for applications up to SIL 3 (IEC 61508), Category 4, and PL e (EN ISO 13849-1).
Can the F35 be used in hazardous locations?
Yes, it is rated for installation in Ex Zone 2 hazardous environments when housed in an approved protective cabinet.
What programming software is compatible with the F35?
Depending on the model variant, it supports configuration and programming via SILworX or ELOP II Factory software tools.
