Description
Core Product Summary (Brand / Model / Key Attributes)
The HIMA F60 MI 24 01 (MI 24 01) is a plug-in input module for the modular HIMatrix F60 safety controller system. It provides 24 individually configurable channels that can operate either as analog current inputs (0/4…20 mA) or as digital inputs for proximity switches (NAMUR / EN 60947-5-6), safety proximity switches, or resistor-wired contacts.
The module is TÜV-certified for safety-related applications up to SIL 3 (IEC 61508, IEC 61511, IEC 62061), Category 4 and PL e (EN ISO 13849-1). It installs in slots 3–8 of the F60 subrack and is suitable for use in Ex Zone 2.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product type | Configurable mixed analog/digital input module |
| System | HIMatrix F60 modular controller |
| Number of channels | 24 (individually configurable) |
| Analog mode | 0/4…20 mA current inputs (internal shunts) |
| Digital mode | Proximity switches (EN 60947-5-6 / NAMUR), safety proximity switches, or contacts with resistors |
| Configuration | Per channel – analog or digital (not simultaneous on same channel) |
| Safety certifications | SIL 3 (IEC 61508/61511/62061), Cat. 4 / PL e |
| Operating voltage | 24 VDC (−15 % … +20 %) |
| Mounting | F60 subrack slots 3–8 |
| Hazardous area | Suitable for Ex Zone 2 |
| Part number | 98 2200115 |
Detailed Product Overview
The MI 24 01 is a versatile input module designed for the HIMA HIMatrix F60 modular safety system. Each of its 24 channels can be independently configured in the engineering tool (SILworX or ELOP II Factory) to function either as a 0/4…20 mA analog current input or as a digital input suitable for NAMUR proximity switches, safety proximity switches, or dry contacts wired with appropriate resistors.
Because the analog inputs use internal shunts, they are current-only and cannot be used for voltage measurement. Analog and digital functions are mutually exclusive on a given channel; the selected mode is set during configuration and determines the channel’s behavior in the safety application.
The module occupies one slot in the F60 subrack (positions 3 through 8). Slots 1 and 2 are reserved for the power supply and CPU modules. Multiple MI 24 01 modules can be installed in a single subrack to increase input capacity. Sensor supply outputs are provided for powering passive sensors or proximity switches.
The module carries full TÜV certification for use in safety instrumented systems up to SIL 3 and is approved for installation in Ex Zone 2 when the F60 system is mounted in a suitable enclosure. All safety-related diagnostics and reaction logic are handled by the F60 CPU; the MI 24 01 itself performs signal acquisition and local diagnostics.

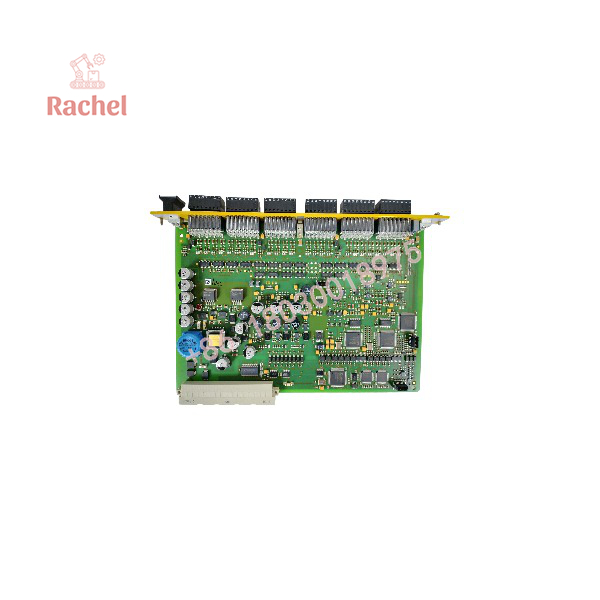

F60 MI 24 01

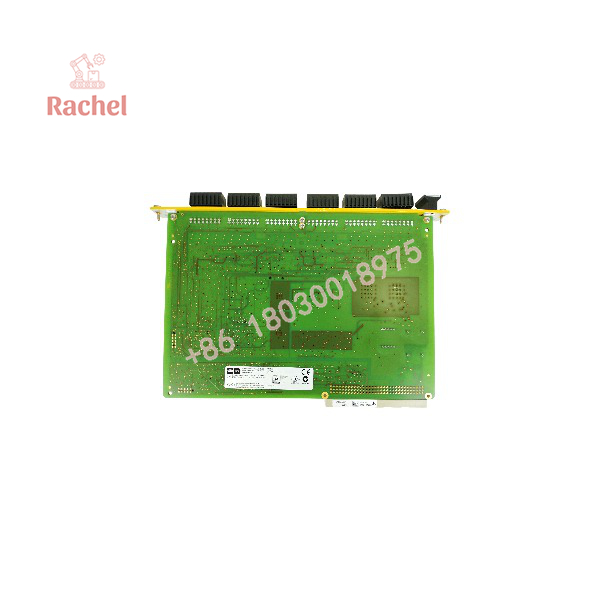

F60 MI 24 01
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Host system | HIMatrix F60 modular controller | Requires F60 subrack, PS module, and CPU |
| Slot positions | 3–8 | Slots 1–2 reserved for power supply and CPU |
| Engineering tools | SILworX or ELOP II Factory | Channel configuration performed in the tool |
| Sensor supply | Provided on the module | For proximity switches and passive sensors |
| Analog signals | 0/4…20 mA only | Internal shunts; not suitable for voltage inputs |
| Hazardous area | Ex Zone 2 | Enclosure must meet required IP and ATEX conditions |
Engineering Selection Highlights
- 24 channels configurable individually as 0/4…20 mA analog or NAMUR/digital inputs maximize flexibility in a single module slot.
- Internal shunts simplify current measurement wiring for analog channels.
- Supports proximity switches according to EN 60947-5-6 and safety-rated proximity switches.
- SIL 3 / PL e certification allows use in high-integrity safety applications.
- Compatible with F60 subrack slots 3–8; multiple modules can be installed.
- Suitable for Ex Zone 2 installations when system enclosure requirements are met.
- Sensor supply outputs available for passive field devices.
Dimensions, Mounting & Connection Notes
The MI 24 01 is a standard plug-in module for the F60 subrack. Field wiring is connected via the front connectors; pin assignments are grouped by channel and include sensor supply, signal, and ground terminals. Exact pin-out tables are provided in the official HIMA manual HI 800 209. The module is installed by sliding it into the subrack guide rails and securing it. Observe the special conditions for Ex Zone 2 mounting given in the manual and the system declaration of conformity.
FAQ
What is the HIMA F60 MI 24 01?
It is a 24-channel plug-in input module for the HIMatrix F60 system. Each channel can be configured as either a 0/4…20 mA analog input or a digital input for proximity switches or contacts.
Can analog and digital signals be mixed on the same module?
Yes. Each of the 24 channels is configured independently. However, a single channel cannot operate in both modes at the same time.
What types of digital sensors are supported?
Proximity switches according to EN 60947-5-6 (NAMUR), safety proximity switches, and contacts wired with suitable resistors.
Is the module SIL 3 certified?
Yes. It is TÜV-certified for safety-related applications up to SIL 3 (IEC 61508, IEC 61511, IEC 62061), Category 4 and PL e.
Where is the module installed?
In slots 3–8 of an F60 subrack. Slots 1 and 2 are reserved for the power supply and CPU modules.
Does it support voltage inputs?
No. The analog channels are current inputs only (internal shunts).
Verification & Troubleshooting Notes
Confirm that each channel is correctly configured in the engineering tool for the intended signal type (analog current or digital). Verify sensor supply wiring and polarity for proximity switches. Check that the F60 system power supply is within the 24 VDC tolerance.
Diagnostic information from the module is reported to the CPU and can be evaluated in the safety application. In case of channel faults, refer to the error codes and diagnostic bits described in the HI 800 209 manual. Ensure the subrack enclosure meets the requirements for any applicable hazardous-area installation.
