HIMA F8627X Communication Module H41q H51q Systems

Description

Product Introduction & Engineering Value

F8627X is the Ethernet communication interface used with HIMA H41q/H51q controller systems. It provides the communication path between the central module and external Ethernet-based systems while supporting safety-related SafeEthernet communication and standard data exchange.

The X revision is significant. HIMA documentation states that F8627X has the same basic functions as F8627, while the additional functions are supported with operating-system version 4.x or higher. That makes firmware compatibility an important part of replacement planning.

Technical Specifications

The original HIMA product documentation specifies a 100Base-T RJ-45 interface and identifies F8627X for SafeEthernet and OPC-based communications. It also documents ELOP II Ethernet programming and Modbus-TCP slave functionality on the X version.

Field Application & the “Trench” Experience

A common F8627X replacement scenario occurs when an older H51q safety system remains operational but loses its Ethernet communication path to a supervisory or engineering workstation. The central CPU may still execute its application correctly.

Replacing the communication module, however, is not simply a matter of inserting another board.

The technician needs to verify the F8627X revision, operating-system compatibility, Ethernet configuration, communication partners, and SafeEthernet architecture. HIMA documentation specifically associates with the F865x central modules through the backplane bus.

Niche application scenarios

• Emergency shutdown system communications: SafeEthernet data exchange between HIMA safety controllers.
• H41q/H51q engineering access: ELOP II TCP connection for controller programming and diagnostics.
• Process safety supervisory interface: Modbus TCP or OPC-based exchange with external control and monitoring systems.

Transparency SOP: QA & Testing

For New Surplus or Refurbished inventory, I would use this receiving procedure:

1. Verify the label — Confirm rather than F8627 or F8628X.
2. Inspect the hardware — Check the front panel, RJ-45 connector, PCB, mounting hardware, and module contacts.
3. Check revision information — Record hardware and operating-system information where available.
4. Power-up test — Verify normal startup and diagnostic LED behavior using an appropriate H41q/H51q test environment.
5. Ethernet test — Establish communication through the 100Base-T interface.
6. Protocol test — Verify the required protocol, such as SafeEthernet, Modbus TCP, or ELOP II TCP.
7. System integration test — Confirm communication with the applicable F865x central module.
8. Document the results — Record revision, test configuration, communication tests, and warranty.

A simple Ethernet link test is not enough if the module is being purchased as a safety-system spare. The actual communication function required by the plant should be tested.

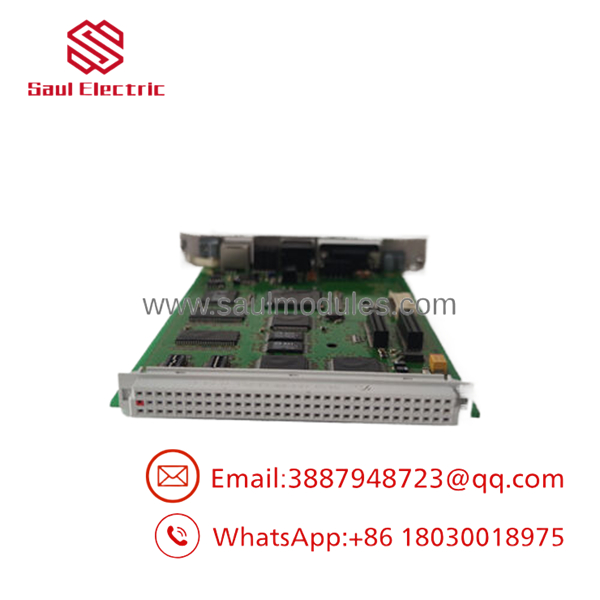

F8627X

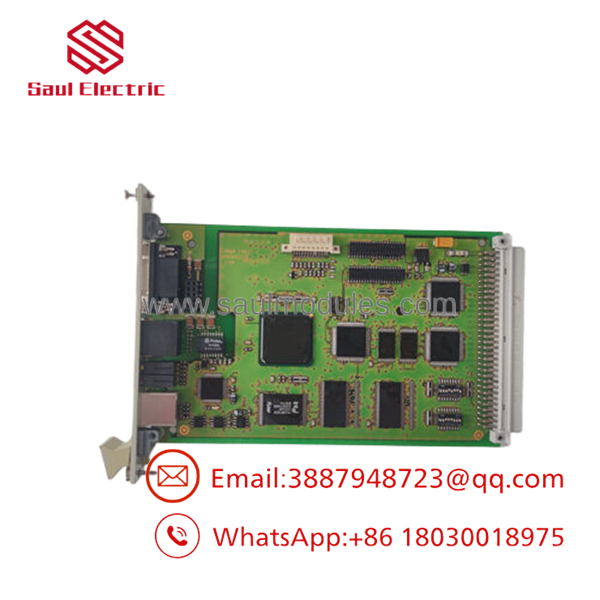

F8627X

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Confusing with F8628X

These modules are not interchangeable by default.

is associated with SafeEthernet/OPC and Ethernet-based communication, while F8628X is associated with Profibus DP slave functionality.

PRO TIP: Photograph the complete module label before ordering. The last character matters.

⚠️ Trap #2 — Ignoring the operating-system revision

The X revision added functions including Modbus-TCP slave and ELOP II programming via Ethernet. HIMA documentation notes that these newer functions require the applicable V4.x-or-higher operating-system level.

⚠️ Trap #3 — Treating as a standalone PLC

It is a communication module. The communication path runs from the H41q/H51q central module through the backplane to and then into the Ethernet network.

⚠️ Trap #4 — Assuming a successful Ethernet ping proves system compatibility

Basic network connectivity does not prove that SafeEthernet, Modbus TCP, OPC, or ELOP II communication is correctly configured. Test the actual application protocol required by the system.

Dynamic FAQ

What is the HIMA ?

is a HIMA communication module for H41q/H51q systems, providing a 100Base-T Ethernet interface and supporting SafeEthernet, OPC, Modbus TCP, and ELOP II Ethernet functions depending on the operating-system version.

What is the difference between F8627 and ?

HIMA documentation states that has the same basic functions as F8627, with additional functions available on the X version when running the applicable V4.x-or-higher operating system.

Which HIMA systems use ?

The documented application is the H41q/H51q controller family. interfaces with the central module through the system backplane.

Does support Modbus TCP?

Yes. The X version supports Modbus-TCP slave, subject to the applicable operating-system version.

Can be used for ELOP II programming?

Yes. ELOP II TCP provides Ethernet-based communication between a programming workstation and the applicable HIMA central module. HIMA documentation identifies this function for .

What should I verify when buying New Surplus ?

Request photographs of the actual module, complete part-number markings, hardware/OS revision information, condition classification, Ethernet/protocol test details, and written warranty terms. For a safety-system spare, confirm compatibility with the installed H41q/H51q CPU before purchase.

Is discontinued?

At least one industrial spare-parts source currently lists as discontinued by the manufacturer. For a legacy H41q/H51q installation, maintaining tested spare inventory is therefore worth considering.
