Hitachi CPM-E2-E3 Excavator Main Controller Board

Description

Product Introduction

The Hitachi CPM-E2-E3 is a central machine control unit (ECU/PCB) engineered specifically for Hitachi EX series heavy excavators and construction equipment. Positioned within the main electrical cab enclosure, this logic board processes sensor telemetry (hydraulic pressure, engine RPM, operator joystick inputs) and drives proportional solenoids to control main pump swashplate angles, power-mode delivery, and hydraulic flow distribution.

Built for continuous operation in severe construction and mining environments, the CPM-E2-E3 module features heavy-duty PCB traces and protective conformal coating to guard against high vibration, dust ingress, and extreme cabin temperature swings. Replacing a faulting or water-damaged CPM-E2-E3 board clears persistent hydraulic error codes, eliminates engine stalling under heavy digging loads, and restores smooth electro-hydraulic response across all machine functions.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 10:00 AM on a high-stakes infrastructure project. A 30-ton Hitachi excavator suddenly bogs down and stalls the diesel engine every time the operator attempts to curl the bucket under load. Diagnostic checks reveal that the hydraulic pump swashplate is locked in maximum displacement because the CPM-E2-E3 main controller is failing to output proper proportional valve modulation signals due to degraded internal voltage regulation traces.

• Civil Earthmoving Operations – Main Pump Regulation – Prevents engine stalling by dynamically scaling hydraulic pump load based on real-time RPM feedback.
• Mining & Quarry Maintenance – Controller Replacement – Replaces aging, thermally fatigued controllers on high-hour EX series machines to eliminate erratic joystick responses.
• Equipment Rebuilds & Overhauls – Mid-Life Restorations – Provides a drop-in replacement controller during complete machine hydraulic and electrical rebuilds.

Field Case Study

A forestry contractor operating a Hitachi EX series excavator experienced intermittent “Hydraulic Pump Control Error” alarms whenever ambient cab temperatures rose past 35°C. Diagnostics confirmed heat-related failure on the driver ICs of the original CPM-E2-E3 controller board. A fully bench-tested replacement board was installed. After performing zero-point pump sensor calibration using the diagnostic tool, the excavator was returned to full production without a single recurring fault code.

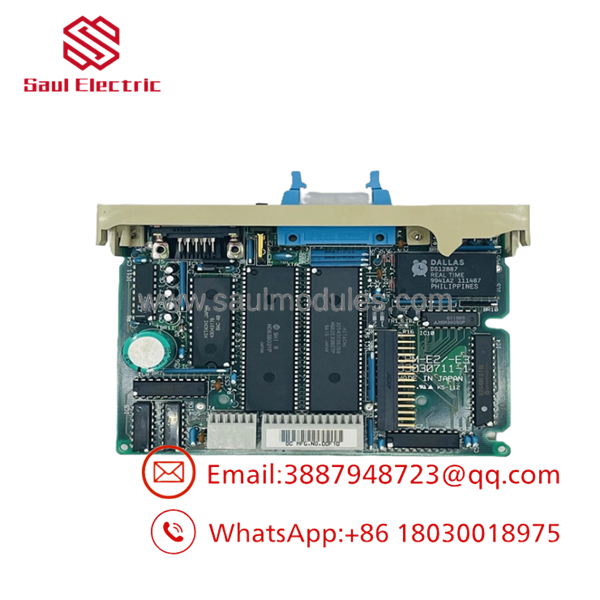

CPM-E2-E3

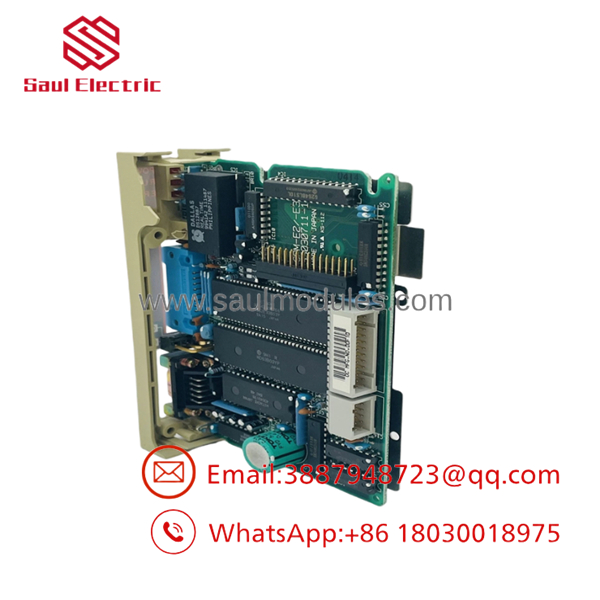

CPM-E2-E3

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual equipment-compatible test benches before they ship to your job site. Our 5-step bench verification process includes:

1. Inbound Visual & Optical Inspection: Detailed audit of header pins, solder joint integrity, capacitors, and trace pathways for thermal discoloration or pin corrosion.
2. Conformal Coating Audit: Verification that the protective coating is fully intact to prevent atmospheric moisture and dust damage.
3. Static Electrical Testing: Resistance and continuity checks across 24V power supply inputs, ground rails, and solenoid driver outputs to verify zero short circuits.
4. Live Bench Simulation: Board energization on specialized diagnostic rigs to verify sensor signal processing, CAN-bus handshake, and output driver actuation.
5. ESD-Safe Sealed Packaging: Deep cleaned, labeled with model number, and vacuum-sealed inside anti-static ESD shielding bags with custom foam protective boxing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Perform Pump/Engine Calibration After Swap: Simply swapping the physical board is often not enough. Always perform the standard pump pressure learning / engine speed calibration via the machine monitor panel or service software to ensure smooth, non-jerky hydraulic movements.
• ❗ Disconnect 24V Battery Master Switch First: Never plug or unplug the multi-pin wiring harness while the machine’s electrical system is energized. Voltage spikes during connector mating can ruin the new board’s sensitive input microcontrollers.
• ⚠️ Inspect Machine Harness Pins for Corrosion: Check the female cavities in the machine wiring harness before plugging into the new board. Water ingress or green/blue copper corrosion in the plug will cause intermittent signal drops and can short out driver circuits on the fresh controller.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Hitachi plug-and-play, or does it require programming?

A: The board drops directly into the physical mounting location and harness connectors. However, depending on your exact machine model and pump revision, you may need to execute a standard pump learning/calibration cycle via the operator monitor panel.

Q: How do I confirm is the right part for my machine?

A: Check the silk-screened label or metal nameplate on your existing controller enclosure. It should explicitly state . Match this designation with your machine’s parts manual.

Q: Are these replacement units brand new or pre-owned surplus?

A: We stock both New Surplus (unused OEM spares) and fully reconditioned, bench-tested surplus units. Every single board undergoes physical and live electrical verification before dispatch.

Q: What warranty comes with this Hitachi controller module?

A: All industrial and heavy equipment electronic replacement parts are backed by a comprehensive 12-month replacement warranty. If the exhibits any internal defect or throws persistent controller fault codes within one year, we replace it or issue a full refund.
