Hitachi LPF240A Industrial Controller Board Module

Description

Product Introduction

The Hitachi LPF240A is an industrial-grade control and logic interface board engineered for high-reliability automation and machinery systems. Designed to slide into standard industrial rack backplanes, this module conditions field I/O signals, executes localized control algorithms, and manages high-speed communications across the system backplane.

Built for continuous duty in demanding manufacturing and process control environments, the LPF240A features heavy-duty PCB traces, high-density edge connectors, and protective coating to resist vibration, dust, and electrical noise. Swapping a damaged or faulting LPF240A board clears persistent backplane bus errors, resolves I/O processing lockouts, and restores reliable system operation without needing a complete control system retrofit.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 2:00 AM on a critical production shift at an automated manufacturing facility. The main PLC cabinet throws a communications bus fault, halting the entire automated assembly line. Visual checks on the control rack reveal an unrecoverable red system fault light on the LPF240A controller module due to aging onboard capacitors after years of uninterrupted service.

• Automated Manufacturing Lines – System Logic Control – Maintains real-time coordination between field sensors, actuators, and central supervisory systems.
• Industrial Processing Plants – Signal Conditioning – Filters high-frequency electrical noise from long sensor cable runs before processing.
• Legacy System Upgrades & Maintenance – Drop-in Replacement – Replaces aging or failed logic modules in legacy Hitachi control racks without requiring expensive software recoding.

Field Case Study

An industrial processing facility experienced intermittent communication dropouts between the primary control rack and remote I/O drops during peak operating hours. Diagnostics traced the issue to thermal degradation on the internal transceiver components of the original LPF240A board. A fully bench-tested replacement board was installed during a planned 15-minute maintenance window. Upon re-powering the rack, backplane communications stabilized immediately with zero recurring packet drops.

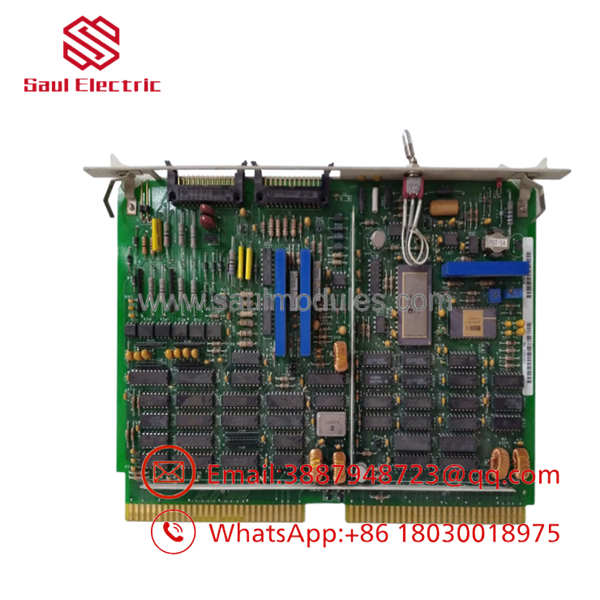

LPF240A

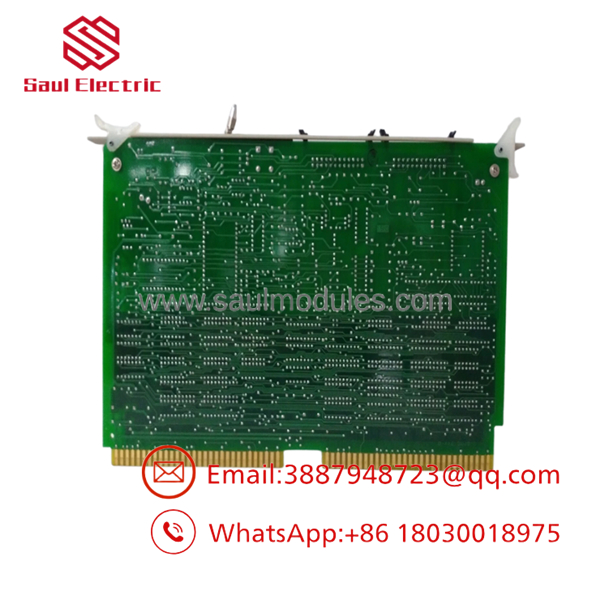

LPF240A

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual equipment-compatible test benches before they ship to your job site. Our 5-step bench verification process includes:

1. Inbound Visual & Optical Inspection: Detailed audit of edge connector fingers, solder joints, DIP switches, and onboard components for physical damage or heat stress.
2. Conformal & Moisture Seal Audit: Verification that protective coatings are intact to shield sensitive signal paths from harsh factory environments.
3. Static Resistance Checks: Multi-point resistance checks across power supply lines and communication bus pins to ensure zero internal short circuits.
4. Live Bench Simulation: Board energization inside compatible rack chassis to verify power-up self-test completion, I/O processing, and bus signal handshake.
5. ESD-Safe Sealed Packaging: Deep cleaned, labeled with part numbers, and vacuum-sealed inside anti-static ESD shielding bags with custom foam protective boxing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Match DIP Switches and Jumpers First: Before pulling the faulty board from the rack, take a sharp photo of all jumper configurations and DIP switch blocks. The replacement board must mirror these exact hardware jumper settings to match your system’s bus address and operating modes.
• ❗ De-Energize Rack Power Before Removal: Never insert or remove this card while the main system rack is energized. Hot-plugging non-hot-swappable cards can arc gold edge connector fingers and damage sensitive CMOS microcontrollers on the board.
• ⚠️ Inspect Rack Card Guides & Backplane Pins: Check the card cage guide rails for dust buildup and inspect the female backplane socket for bent pins before sliding the new board into place.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Hitachi control board hot-swappable?

A: No. Always disconnect power to the rack chassis or isolate the control circuit before removing or installing the board to avoid electrical arcing and component damage.

Q: How do I confirm is the correct replacement part for my system?

A: Check the silkscreened part number printed directly on the circuit board surface or on the side barcode label. It should explicitly state .

Q: What condition are these replacement boards supplied in?

A: We stock both New Surplus (unused factory spares) and fully reconditioned, bench-tested surplus units. Every module undergoes full visual and live electrical verification prior to shipping.

Q: What warranty coverage comes with this Hitachi module?

A: All industrial automation replacement parts are backed by a comprehensive 12-month full replacement warranty. If the board exhibits any operational defect within one year, we replace it or issue a full refund.
