HollySys FM801 DCS Controller

Description

Product Introduction & Engineering Value

The HollySys FM801 is a legacy main controller for the HOLLiAS MACS FM-series DCS. It is not an ordinary I/O card. The controller sits at the center of the DCS architecture, coordinating control functions and communications between the controller layer and distributed I/O. HollySys FM-series documentation specifically describes the control rack as capable of holding a redundant pair of FM801 controllers.

For maintenance teams supporting older MACS installations, FM801 remains relevant as a critical spare. However, this is a lifecycle-sensitive component: HollySys material indicates that FM801 is no longer produced and identifies FM802 as the replacement in later migration scenarios.

Technical Specifications

These controller specifications are published in HollySys MACS system documentation.

The FM-series hardware architecture uses a separate controller, power-supply, distributed-I/O, terminal-module, and cabinet structure. FM801 controllers are installed in the upper control-rack section of the FP040 cabinet.

Field Application & the “Trench” Experience

A failed FM801 can be much more disruptive than a failed field I/O module. If the controller is the active member of a redundant pair, the system may transfer control to the standby controller. That buys the maintenance team time—but it also creates a very specific window for replacement.

Consider an older plant running an FM-series MACS DCS. One FM801 begins reporting controller faults while its redundant partner continues operating. The maintenance team installs a replacement during the outage. The hardware swap itself is straightforward; the real concern is ensuring that the replacement controller belongs to the correct MACS generation and that the controller configuration and system software are compatible.

Typical applications include:

1. Legacy HOLLiAS MACS FM-series DCS control racks
2. Power-generation auxiliary control systems
3. Process-plant distributed control applications
4. Legacy FM-series systems requiring controller-level spare coverage

FM801 has also been documented in actual plant DCS applications, including FM801-based MACS systems used for plant environmental-control processes.

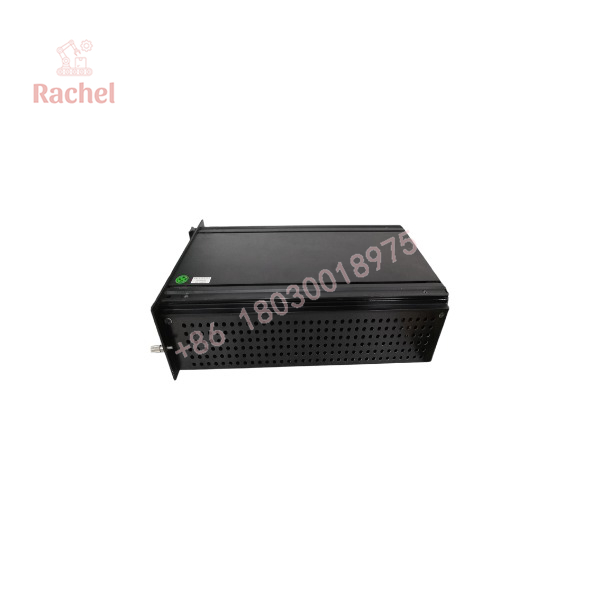

FM801

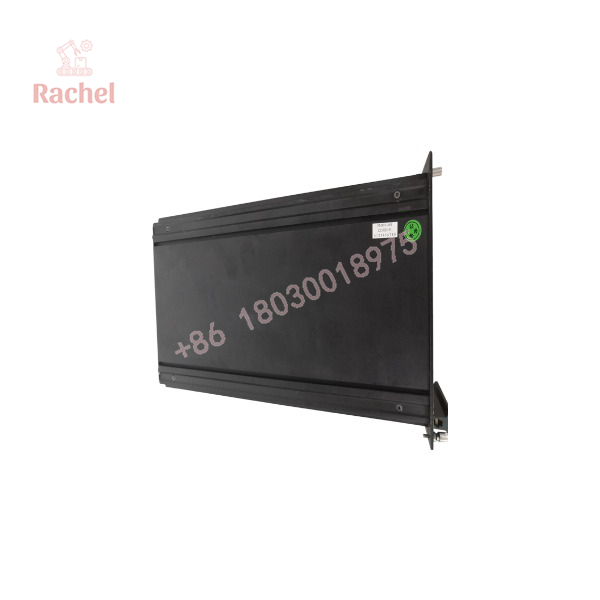

FM801

Transparency SOP: QA & Testing

For New Surplus or Refurbished FM801 inventory, QA should go beyond a visual inspection.

1. Hardware identification
Verify FM801, hardware revision, serial number, and all PCB/nameplate markings.

2. Physical inspection
Inspect the controller housing, connectors, PCB, mounting hardware, memory devices, and battery-related components where fitted.

3. Power-up test
Apply the specified 24 VDC supply under controlled conditions and verify normal controller startup.

4. Communication test
Where the appropriate test environment is available, verify the Ethernet and PROFIBUS-DP interfaces.

5. DCS functional test
The preferred test is installation in a compatible MACS environment to verify controller startup, redundancy behavior, communication, and execution of the appropriate control configuration.

6. Traceability
Record the hardware revision and test results. For legacy controllers, revision matching is important.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating FM801 as a generic CPU.
It is a MACS DCS main controller. Compatibility depends on the complete MACS architecture, not merely on the fact that the module uses an x86-compatible processor.

⚠️ Trap #2 — Ignoring the FM801/FM802 lifecycle transition.
HollySys documentation identifies FM801 as no longer produced and states that FM802 is used for replacement in the referenced migration path. Do not automatically substitute FM802 into an existing installation without checking the MACS version and migration requirements.

⚠️ Trap #3 — Forgetting redundancy configuration.
The FM-series control rack can contain a redundant pair of FM801 controllers. Verify whether the existing installation is simplex or redundant before ordering one or two spares.

PRO TIP: For an FM801 replacement RFQ, provide the FM801 hardware revision, MACS software version, controller-rack configuration, and a photograph of the existing controller label. Those four pieces of information substantially reduce compatibility risk.

Dynamic FAQ

What is the HollySys FM801?

The is a main controller module for the HOLLiAS MACS FM-series DCS. It performs controller-level processing and communications within the DCS architecture.

Is FM801 an I/O module?

No. FM801 is a main controller. The FM-series architecture uses separate distributed I/O modules and terminal modules.

Does FM801 support redundant operation?

Yes. The FM-series control rack can accommodate a redundant pair of FM801 main controllers.

What communications does FM801 use?

The documented FM801 architecture includes redundant industrial Ethernet (SNET) and a PROFIBUS-DP fieldbus interface (CNET). The cited HollySys system documentation specifies 10 Mbps for SNET and 500 kbps for CNET.

Is FM801 still manufactured?

HollySys system documentation identifies FM801 as no longer produced and describes FM802 as the replacement in the referenced upgrade path. For an existing FM801 installation, however, a genuine FM801 spare may still be the lower-risk maintenance choice when maintaining the original system configuration.

Is New Surplus FM801 acceptable?

Yes. For a legacy DCS controller, New Surplus can be an appropriate spare strategy provided the exact hardware revision, system compatibility, storage condition, and functional test status are confirmed.

What warranty should I request?

Request written warranty coverage for controller startup, memory operation, Ethernet/PROFIBUS-DP communication, and DCS-level functionality where testing is available. Also ask whether the actual FM801 supplied was powered and function-tested or only visually inspected.
