Nabtesco ARN30 Servo Amplifier VIGOSERVO AR Series

Description

Product Introduction & Engineering Value

The ARN30 is not a generic variable-frequency drive. It is a dedicated servo amplifier for the VIGOSERVO AR positioning system, combining motor control, positioning functions, feedback processing, and machine I/O. Its 1.5 kVA rating and 4.5 Arms continuous output make it the smaller member of the ARN15/30/60/135 amplifier family.

For replacement work, the important question is not simply whether the cabinet has a 200–230 VAC supply. The ARN30 must be matched to the compatible AR actuator, encoder arrangement, control wiring, and stored servo parameters. The documentation also specifies dedicated positioning functions and protective functions rather than treating the unit as a conventional speed-only drive.

Technical Specifications

The published manual specifies 1.5 kVA, 4.5 Arms continuous output, and 16 Arms maximum output for ARN30. It also lists 3-phase 200–230 VAC operation and transistor PWM control.

Field Application & the “Trench” Experience

A machine-tool maintenance team once faced a familiar legacy-drive problem: an AR-series rotary axis stopped completing its indexing sequence. The mechanical reducer and actuator checked out, but the servo amplifier was generating intermittent faults during acceleration.

The replacement decision was initially treated as a simple drive swap. It wasn’t. The team had to verify the ARN30 model, encoder configuration, actuator pairing, control I/O, and servo parameters before returning the axis to production. The original parameter settings were especially important because the AR system uses adjustable position-loop and speed-loop gains.

Practical applications include:

• CNC rotary indexing axes using AR-series servo actuators.
• Machine-tool positioning mechanisms requiring programmable angular indexing.
• Robotic rotary axes where absolute encoder feedback and controlled positioning are required.
• Legacy automated machinery using Teijin Seiki/Nabtesco VIGOSERVO hardware.

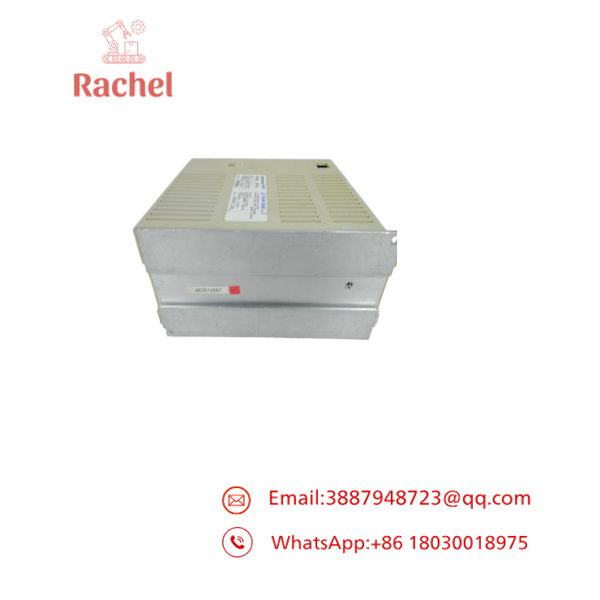

ARN30

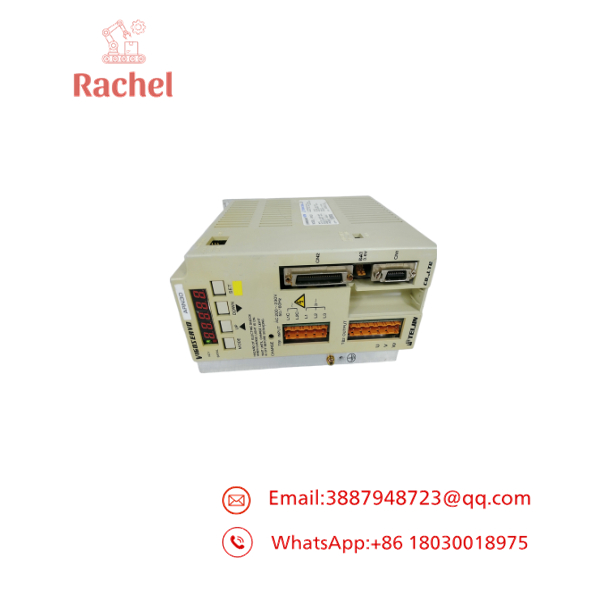

ARN30

Transparency SOP: QA & Testing

For New Surplus or Refurbished ARN30 inventory, a meaningful QA process should include:

1. Model verification — Confirm ARN30 identification and distinguish ARN30-A or other configuration variants.
2. Visual inspection — Check terminals, connectors, PCB assemblies, cooling surfaces, and enclosure condition.
3. Power-stage inspection — Check for visible capacitor damage, semiconductor stress, overheating, or contamination.
4. Control inspection — Verify switches, connectors, and control terminals against the applicable manual.
5. Functional testing — Where the correct AR actuator and test equipment are available, verify servo enable, positioning, feedback, alarm handling, and output operation.
6. Parameter review — Record applicable servo parameters before releasing the unit for field installation.

For this generation of servo hardware, a static bench power-up does not prove full operational compatibility.

The Veteran’s Tech Trap Guide

⚠️ ARN30 and ARN30-A are not labels to ignore.
Supplier inventories can list ARN30 generically while the physical unit carries a suffix such as . Confirm the exact nameplate before treating two units as interchangeable. A discontinued-parts listing specifically identifies ARN30-A as a 200–230 VAC, 3-phase servo drive with 4.5 Arms continuous and 16 Arms maximum output.

⚠️ Do not erase the old servo parameters.
The AR system has configurable position-loop gain, speed-loop proportional gain, speed-loop integral gain, electronic gearing, encoder mode, and other control parameters. Losing these settings can turn a straightforward replacement into a commissioning exercise.

PRO TIP: Photograph every connector and parameter screen before removing the failed amplifier. Record the actuator model at the same time.

⚠️ Check regenerative-braking wiring.
The AR documentation specifically addresses the RGEN/DCC connection and external regenerative resistance. Incorrect handling can result in an overvoltage alarm during regenerative operation.

Dynamic FAQ

Q1. What is the ARN30?

The ARN30 is a VIGOSERVO AR-series servo amplifier used with compatible AR-series servo actuators. It provides motor control, positioning, feedback handling, and machine-control I/O functions.

Q2. What is the ARN30’s output rating?

The published specifications list 1.5 kVA, 4.5 Arms continuous output current, and 16 Arms maximum output current.

Q3. What input power does ARN30 require?

The AR-series documentation specifies 3-phase AC 200–230 V, +10%/−15%, 50/60 Hz.

Q4. Can ARN30 replace an ARN60?

No. ARN60 has a substantially higher capacity and output-current rating. The amplifier must be selected according to the actuator and original machine configuration rather than by physical size alone.

Q5. Is ARN30 still a current-production drive?

ARN30 appears primarily in legacy/discontinued-equipment channels today. A parts listing identifies ARN30-A as discontinued by the manufacturer, so procurement should account for lifecycle risk and maintain an appropriate spare strategy.

Q6. How should New Surplus ARN30 inventory be authenticated?

Verify the manufacturer/model marking, configuration suffix, serial information, connector arrangement, physical condition, and—ideally—operation with a compatible AR actuator. New Surplus should mean unused original inventory, not merely a cleaned used drive.

Warranty: Warranty coverage depends on the supplier and stock condition. For refurbished ARN30 units, request the test scope and written functional warranty before purchase.
