Description
Product Introduction & Engineering Value
The Honeywell 05701-A-0361 is not an ordinary I/O card. It serves as the engineering interface for a System 57 gas detection rack, giving technicians access to commissioning, alarm checking, sensor zero/span adjustment, alarm inhibit functions, clock management, and system diagnostics. It also manages backplane serial communications and routes DC power to the rack backplane.
This makes the card important during both normal maintenance and fault diagnosis. Its location is fixed: Honeywell specifies installation in the right-hand slot of the System 57 rack. Removing or incorrectly positioning it can affect rack-level functions rather than just one detector channel.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 05701-A-0361 |
| System | Honeywell System 57 / 5701 |
| Card Type | Engineering Card |
| DC Supply | 18–32 VDC |
| Typical Power Consumption | 1.5 W |
| Rack Position | Right-hand slot |
| External Interface | RS-232 |
| Front Interface | Mini-DIN connection |
| Controls | Tactile push-buttons |
| Status LEDs | Power On / Unlocked |
| Backplane Function | Serial communications controller and monitor |
| Clock Function | Time/date reference |
| Dimensions | Approx. 132 × 25 × 170 mm |
| Weight | Approx. 152 g |
The published Honeywell manual specifies the 18–32 VDC supply range, approximately 1.5 W power consumption, RS-232 external engineering interface, backplane communications functions, and the right-hand rack position. Independent product listings corroborate the electrical and dimensional specifications.
Field Application & the “Trench” Experience
Consider a legacy gas detection rack serving a process area where several System 57 control cards are still operating normally. One day, the maintenance team needs to recalibrate a channel and discovers that the engineering interface no longer responds correctly.
The individual channel card is not necessarily the culprit.
The 05701-A-0361 is the common engineering interface for the rack. It provides access to alarm setpoint checking, zero/span adjustment, sensor-line monitoring, clock functions, and other maintenance operations. Honeywell also specifies self-validation of its circuitry, software operation, and backplane communications.
Specific application scenarios
- System 57 gas detection rack commissioning — Accessing configuration and commissioning functions across installed control cards.
- Catalytic detector calibration — Performing sensor zero and span adjustments and checking catalytic sensor current.
- Alarm maintenance — Checking and adjusting alarm setpoints and testing alarm-related functions.
- Legacy gas detection system troubleshooting — Monitoring rack communications and using the engineering interface to isolate control-card problems.

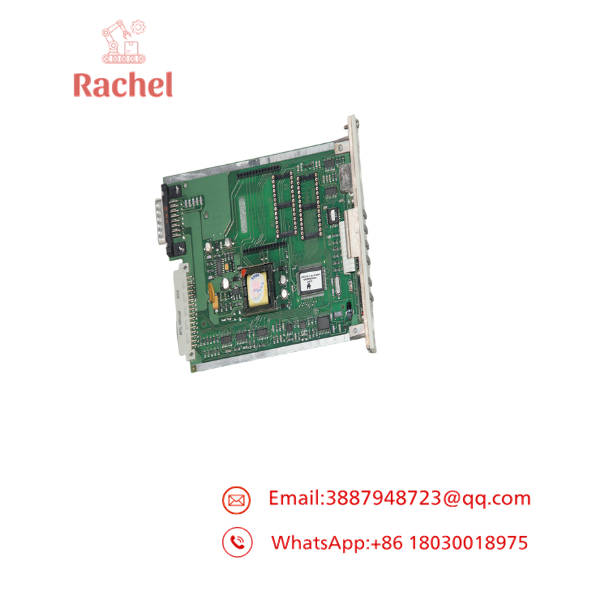

05701-A-0361

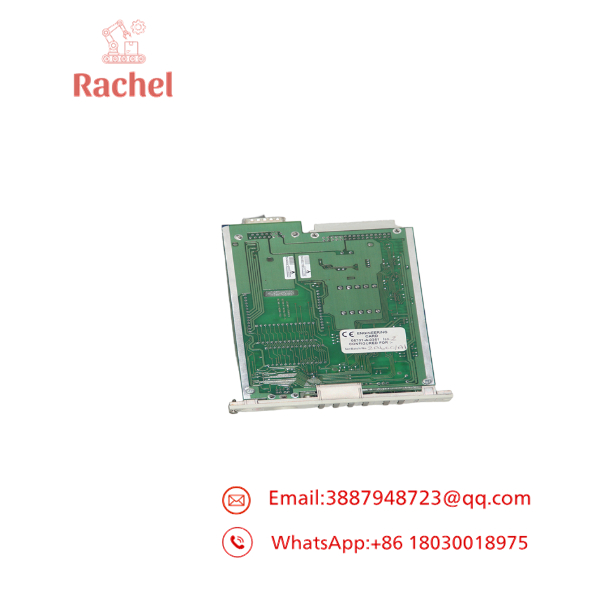

05701-A-0361
Transparency SOP: QA & Testing
For new-surplus or refurbished 05701-A-0361 inventory, testing should focus on rack-level functions rather than merely checking whether the LEDs illuminate.
1. Identification
Confirm the complete part number and inspect the PCB, front panel, connector, and hardware condition.
2. Power verification
Apply an appropriate DC supply within the specified 18–32 VDC range and confirm normal power indication.
3. Engineering interface test
Verify operation of the front-panel push-buttons and engineering interface.
4. Backplane communication test
Install the card into a compatible System 57 rack and verify communication with installed control cards.
5. Control-function test
Where the test setup permits, verify access to alarm checking, zero/span functions, inhibit functions, and clock operations.
6. Self-validation
Confirm the card’s internal diagnostic/self-validation functions and check for communication faults.
7. Final inspection
Record the hardware revision, test configuration, measured supply voltage, observed LED behavior, and functional-test results.
A power-on test alone is insufficient for this component because a major part of its function is rack-level communication and engineering access.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Putting the card in the wrong slot.
Honeywell explicitly specifies the Engineering Card for the right-hand slot of the System 57 rack. This is not a card that should simply be inserted into any available position.
PRO TIP: Photograph the rack before removing the original card. The slot position is part of the replacement procedure.
⚠️ Trap #2 — Treating it like a channel control card.
The 05701-A-0361 provides common engineering functions for the rack. It is not a substitute for the individual 5701 channel control cards.
⚠️ Trap #3 — Ignoring the Engineering Key/security function.
The System 57 engineering interface includes security-controlled functions. Honeywell documentation identifies an Engineering Key used to unlock functions that can alter control-card operation.
⚠️ Trap #4 — Assuming RS-232 is the whole story.
The front-panel interface is only one aspect of the card. The 05701-A-0361 also manages backplane serial communications and rack-level functions.
⚠️ Trap #5 — Buying a visually similar System 57 card.
The System 57 family includes multiple cards, including DC input, single-channel control, sensor-drive, and analog-output modules. Honeywell’s documentation lists the 05701-A-0361 separately as the Engineering Card.
Dynamic FAQ
What is Honeywell 05701-A-0361?
The 05701-A-0361 is the Engineering Card for Honeywell System 57/5701 gas detection racks. It provides a common interface for commissioning, operation, adjustment, and diagnostic functions across the rack’s control cards.
Where is the 05701-A-0361 installed?
Honeywell specifies that it is installed in the right-hand slot of the System 57 rack.
What is the operating voltage?
The published specification is 18–32 VDC, with typical power consumption of approximately 1.5 W.
What functions can technicians perform through the Engineering Card?
Depending on system configuration and security level, functions include catalytic sensor current monitoring/adjustment, alarm setpoint checking and adjustment, sensor zero/span adjustment, sensor-line monitoring, alarm inhibit control, and clock adjustment.
Does the 05701-A-0361 have an external communications interface?
Yes. Honeywell specifies an RS-232 external engineering interface, with a front-panel mini-DIN connection for equipment such as a serial printer, computer, or engineering key.
Is the 05701-A-0361 obsolete?
Multiple current industrial suppliers classify the part as discontinued or phased out, although replacement and surplus inventory is still offered.
Can new-surplus 05701-A-0361 stock be used as a replacement?
Yes, provided the part number and System 57 compatibility are confirmed. Because this is safety-related gas detection equipment, the replacement should be functionally tested in the appropriate rack before being returned to service.
What should I verify when buying refurbished stock?
Request the actual part-number photograph, hardware revision, physical condition, rack test results, engineering-interface test results, and warranty terms. A supplier’s claim that the card “powers on” is not equivalent to demonstrating functional System 57 operation.
What warranty should I request?
Warranty terms vary by supplier. Current third-party listings show examples of 12-month warranties, but that is supplier-specific and should be confirmed in the quotation.
