Honeywell 2MLF-AV8A 8-Channel Voltage Analog Input Module

Description

Product Introduction

The Honeywell 2MLF-AV8A is an 8-channel analog voltage input module designed for the MasterLogic-200 PLC platform. It converts field voltage signals into digital process values for closed-loop control, monitoring, alarming, and data acquisition. The module is widely used in process industries where transmitters, analyzers, and instrumentation provide voltage-based analog signals.

Unlike universal analog modules that support both voltage and current on the same hardware, the 2MLF-AV8A is dedicated to voltage measurement. That simplifies configuration and improves compatibility with existing ML200 installations. In our field experience, this module is commonly found in legacy Honeywell control systems that continue operating reliably years after their original commissioning.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A refinery shutdown starts with what appears to be a failed pressure transmitter. Maintenance replaces the transmitter. The reading never changes. They replace the wiring. Still nothing.

Three hours later they discover the analog input module has a damaged input channel after years of surge exposure.

That happens more often than people expect.

Typical Applications

Oil & Gas — Process pressure monitoring — Receives voltage outputs from pressure transmitters for continuous process control.

Chemical Plants — Reactor instrumentation — Acquires analog voltage signals from analyzers and control instruments.

Water & Wastewater — Pump station monitoring — Collects level and pressure measurements for PLC logic.

Power Generation — Auxiliary process monitoring — Interfaces with voltage-output transmitters and monitoring equipment.

OEM Process Equipment — Machine instrumentation — Provides stable analog acquisition for process variables within ML200 PLC systems.

Field Replacement Example

A pharmaceutical facility experienced intermittent analog input faults on one production skid. Operators initially suspected unstable field transmitters because the values drifted only during production. Oscilloscope measurements confirmed the transmitters were operating normally. The fault was eventually traced to one damaged channel on a 2MLF-AV8A module that had experienced repeated electrical surges over several years. After replacing the module and verifying channel scaling in SoftMaster, production resumed without modifying the PLC application.

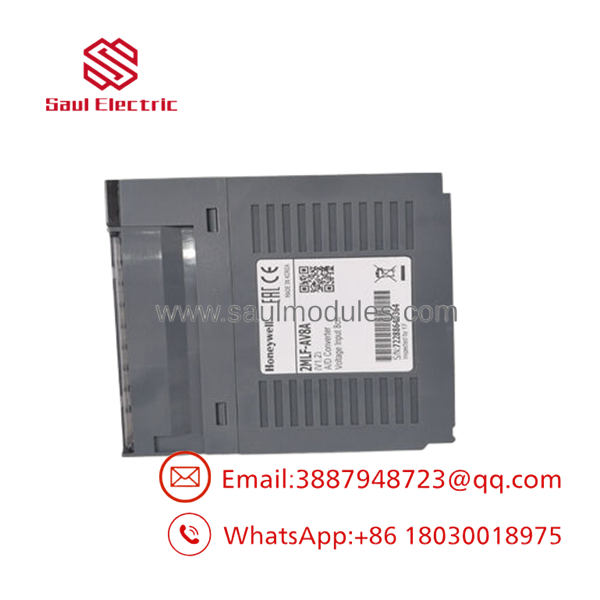

2MLF-AV8A

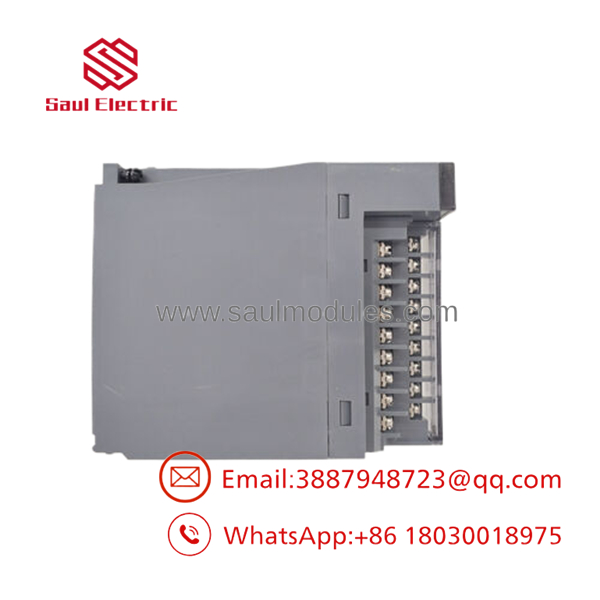

2MLF-AV8A

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Honeywell MasterLogic racks whenever practical.

• Inbound Inspection
  • Verify Honeywell labels and part numbers.
  • Inspect PCB, terminals, and connector pins.
  • Check for counterfeit markings or previous repair work.
• Live Rig Testing
  • Install the module in a MasterLogic-200 rack.
  • Verify CPU recognition.
  • Inject calibrated voltage signals into all eight channels.
  • Confirm stable digital conversion across the operating range.
• Electrical Parameter Checks
  • Verify power consumption.
  • Measure A/D conversion accuracy.
  • Test every input channel individually.
• Firmware Verification
  • Confirm compatibility with the installed ML200 CPU firmware.
  • Record hardware revision during inspection.
• Final QC & Packaging
  • Complete functional verification.
  • ESD-safe packaging.
  • Shock-resistant shipping protection.
  • Serial number traceability.

The Veteran’s Tech Trap Guide

⚠️ Don’t connect a 4–20 mA transmitter directly to this module.
The 2MLF- accepts voltage signals only. Current-loop transmitters require the 2MLF-AC8A or appropriate signal conversion.

⚠️ Verify channel scaling after replacement.
Each input channel can be configured independently. A mismatched voltage range often looks like a failed transmitter when it’s simply an incorrect parameter setting.

❗ Remember there is no channel-to-channel isolation.
Isolation exists between the field terminals and PLC power supply, but not between individual analog channels. Grounding problems can affect multiple measurements simultaneously.

⚠️ Label the field wiring before removal.
An 18-point terminal block can be disconnected quickly, but reconnecting voltage inputs incorrectly can create hours of troubleshooting during startup.

Frequently Asked Questions (FAQ)

Q1. What signals does the 2MLF- support?

It accepts 1–5 VDC, 0–5 VDC, 0–10 VDC, and ±10 VDC analog voltage inputs. Each channel can be configured independently.

Q2. Can this module read 4–20 mA transmitters?

No. For current-loop applications, Honeywell specifies the 2MLF-AC8A analog current input module.

Q3. Does the module support hot swapping?

No. Honeywell does not recommend removing or installing the module while the PLC rack is energized. Shut down the rack and follow the ML200 maintenance procedure before replacement.

Q4. Which engineering software is used?

The module is configured using Honeywell SoftMaster, where input ranges, channel parameters, and analog scaling are assigned.

Q5. Why is this module still in demand?

Many MasterLogic-200 systems remain in continuous service across process industries. Plants typically replace failed I/O modules rather than redesign entire control systems, making tested surplus inventory valuable.

Q6. What warranty is commonly offered?

Most industrial automation suppliers provide a 12-month functional warranty on fully tested New Surplus or professionally refurbished modules. Warranty terms vary by supplier.

Q7. What should be verified before installation?

Verify the ML200 CPU firmware, configured input ranges, channel scaling, terminal wiring, grounding, and field signal type before energizing the system. Always verify terminal assignments and wiring against the official Honeywell documentation before commissioning.
