Honeywell CC-PAIH02 Analog Input Module 16-Channel

Description

Product Introduction

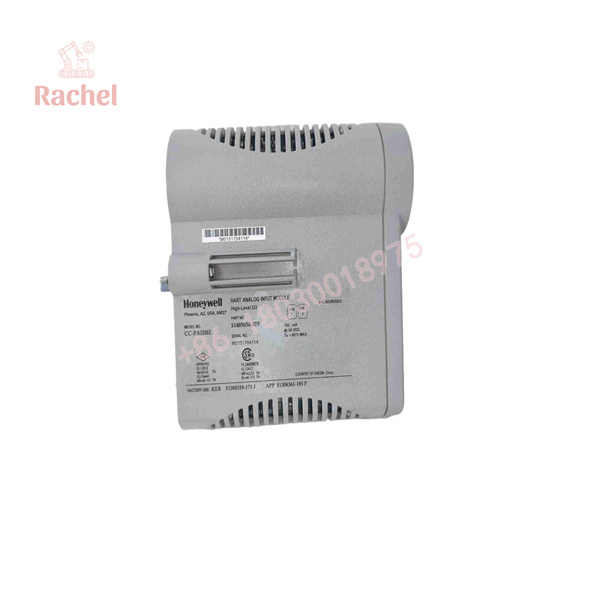

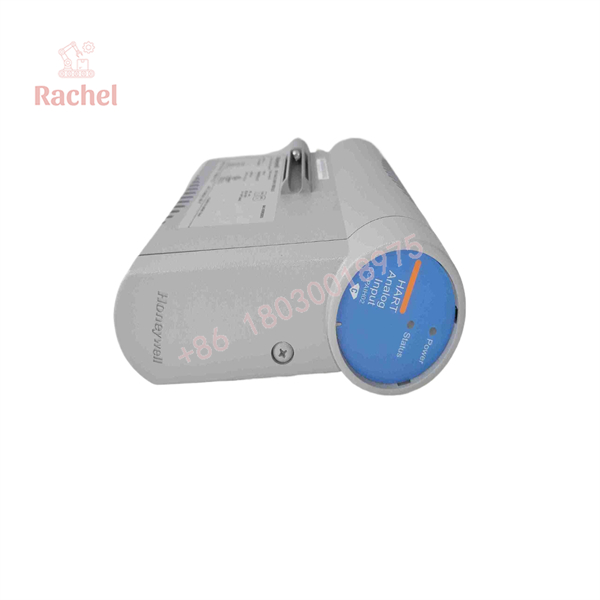

The Honeywell CC-PAIH02 is a 16-channel high-level analog input module engineered for Honeywell Experion Process Knowledge System (PKS) architectures utilizing Series C hardware. Deployed heavily in oil and gas, chemical processing, and power generation facilities, this card reads critical field instrumentation signals such as pressure, temperature transmitters, and flow meters.

Unlike legacy TDC3000 input cards, the Series C form factor on the CC-PAIH02 integrates direct I/O termination with horizontal mounting design, significantly reducing cabinet footprint. Built-in HART multiplexing capabilities allow engineers to pull secondary diagnostic data and device configurations directly through the control system without breaking loop wiring.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s a turnaround week at a major refinery, and during final loop checks prior to startup, an analog input card on the primary fractionator unit lets out a faint puff of magic smoke due to an accidental 120V cross-wire on Channel 4. The whole commissioning schedule grinds to a halt. When you are looking at millions of dollars in delayed feedstock processing, waiting weeks for a factory backorder is not an option. You need a direct drop-in Series C card on your bench right now.

Specific Applications:

• Refining & Petrochemical: Continuous multi-loop monitoring of pressure, level, and flow transmitters on distillation columns.
• Power Generation: Boiler feed-water flow monitoring and exhaust temperature profiling.
• Chemical Processing: Exothermic reactor temperature and pressure safety loops.

Field Case Study:

A Gulf Coast chemical plant suffered an intermittent channel drift issue across a legacy CC-PAIH02 module tracking critical reactor feed pressures. Plant instruments were calibrated, but erratic scaling persisted due to degraded internal analog multiplexers on the aging card. Instrument techs dropped in a pre-tested surplus CC-PAIH02, verified HART tag communication via Experion Station, and restored stable process feedback in under 30 minutes, preventing an unscheduled unit shutdown.

CC-PAIH02

CC-PAIH02

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Honeywell Series C test racks. Here is our rigorous multi-step inspection and bench-testing protocol:

1. Visual & Terminal Inspection: Inspect the plastic housing, locking mechanisms, and gold-plated backplane connector pins for oxidation, stress cracks, or pin bending.
2. Cold Resistance & Isolation Check: Verify channel-to-channel isolation barriers and check internal power rail pins for short circuits using a precision multimeter.
3. Chassis Power-Up & Self-Test: Insert the card into a live Series C test chassis powered by a C300 controller node to monitor firmware handshake and module health LEDs.
4. Precision Loop Calibration: Inject calibrated 4mA, 12mA, and 20mA signals across all 16 channels simultaneously. Verify that Experion Quick Builder software reads exact scale counts without channel crosstalk or drift.
5. HART Communication Verification: Probe input channels with a HART communicator or asset management software to guarantee bi-directional pass-through commands function correctly.
6. Anti-Static Sealing: Pack the verified module in heavy-duty ESD shielding bags surrounded by custom anti-vibration foam.

The Veteran’s Tech Trap Guide

⚠️ Mind the Series C Electronic Marshalling Terminations!

Series C architecture uses I/O Termination Assemblies (IOTAs) distinct from the I/O module itself. When replacing a CC-PAIH02, ensure the IOTA field wiring plug is fully seated and locked down. A loose IOTA latch will cause intermittent “Bad PV” alarms across multiple channels simultaneously.

❗ Check HART Enable Configurations in Quick Builder!

If you are swapping a standard non-HART card or upgrading node configurations, verify your software channel configuration in Experion Quick Builder. Enabling HART pass-through on a channel wired to a non-HART transmitter can throw configuration mismatch faults in your system logs.

⚠️ ESD Precautions on Series C Pins:

Always wear a grounded wrist strap when handling Series C modules. The surface-mount analog conversion chips on these boards are highly sensitive to electrostatic discharge; touching the exposed rear pins without grounding can blow internal input buffers instantly.

Frequently Asked Questions (FAQ)

Q: Is the Honeywell CC-PAIH02 hot-swappable?

A: Yes. Series C modules are designed to be inserted and removed under power (hot-swappable) within an approved Series C chassis, provided the system configuration supports redundant or non-critical loop handling during the swap.

Q: Does this card supply loop power to field transmitters?

A: The CC-PAIH02 module measures current loops, but actual field power sourcing depends on the specific Series C IOTA (I/O Termination Assembly) variant installed behind it. Always verify whether your IOTA provides passive or active loop power wiring.

Q: Can I use this card with non-HART field instruments?

A: Absolutely. While the CC-PAIH02 supports HART protocol pass-through for smart transmitters, it functions perfectly fine as a standard, high-precision 4–20 mA analog input card for legacy or non-HART field devices.

Q: Why choose pre-tested surplus over buying new from automation distributors?

A: Honeywell mature-lifecycle parts often face extended factory lead times or require costly system migration paths. A pre-tested surplus CC-PAIH02 gives you immediate drop-in compatibility with your existing Experion database without requiring software or hardware redesigns.

Q: What kind of warranty comes with this module?

A: Every unit undergoes full bench testing on live loops and is backed by a comprehensive 12-month replacement warranty covering any operational or hardware defects.
