Honeywell CC-PAIN01 Series C Analog Input Module

Description

Product Introduction & Engineering Value

When a process controller needs dependable analog measurements without HART instrument communication, the Honeywell CC-PAIN01 provides 16 channels of 4–20 mA input acquisition for Experion PKS Series C systems. Its 16-bit analog-to-digital converter and 50 ms input scan rate support routine process measurements from compatible two-wire and self-powered transmitters.

The module also provides individually protected transmitter field-power current-limiting circuits for specified non-incendive applications. Replacement planning should account for the installed IOTA, redundancy configuration, field wiring, and controller configuration—not just the module’s model number.

Technical Specifications

The following parameters are taken from Honeywell’s Experion Series-C I/O Specification, document EP03-490-520, Section 5.4.

Compatibility note: The CC-PAIN01 is a current-input module without HART functionality. Its input specification differs from that of the CC-PAIH51, which supports HART. Confirm the installed IOTA and application requirements before selecting either model.

Field Applications and Maintenance Scenarios

Consider a representative process plant troubleshooting situation: several flow measurements begin fluctuating during a production run. The maintenance team checks loop current at the field terminals, inspects termination connections, and reviews controller diagnostics before deciding whether the input module needs replacement.

If the CC-PAIN01 is confirmed faulty, the replacement process should include verification of the 4–20 mA loop, the correct termination assembly, channel assignments, and post-installation readings. Replacing the module without checking the field circuit could leave the original fault unresolved.

Typical application scenarios include:

• Boiler feedwater flow monitoring: Collecting transmitter signals used for process monitoring and control.
• Chemical dosing skid instrumentation: Reading compatible current-output pressure and flow transmitters.
• Cooling-water system monitoring: Acquiring analog measurements from pumps, heat exchangers, and associated process instrumentation.

These are representative applications, not verified customer installations.

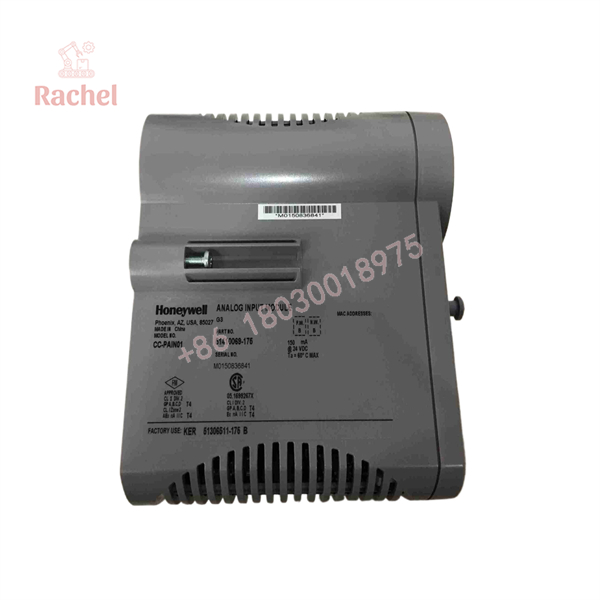

CC-PAIN01

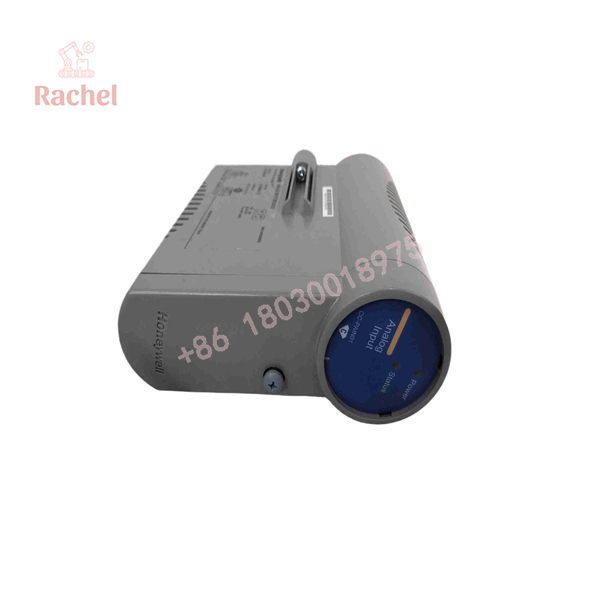

CC-PAIN01

Quality Assurance and Testing

For replacement inventory, use a documented inspection process appropriate to the product’s declared condition.

1. Verify identity

Inspect the model label, part number, connectors, and housing. Record visible damage or evidence of previous repairs.

2. Verify electrical function

Where test facilities permit, evaluate module diagnostics and representative 4–20 mA input readings against an appropriate test reference. Check each channel included in the stated test scope.

3. Document the results

Record the test date, tested functions, observed results, unit traceability where available, and any limitations. State the warranty and return conditions in writing.

These steps describe a recommended QA procedure. They do not establish that any particular CC-PAIN01 unit has been tested or certified.

Replacement Pitfalls to Avoid

Pitfall 1: Confusing CC-PAIN01 with CC-PAIH51

Both handle 16 channels of high-level current input, but the CC-PAIN01 does not provide HART communication. If the application requires HART device status or configuration access, verify the correct module before ordering.

Pitfall 2: Overlooking the IOTA

Honeywell specifies CC-TAIN01 for nonredundant installations and CC-TAIN11 for redundant installations. Confirm the existing termination assembly and system design rather than assuming the module can be fitted to any Series C IOTA.

Pitfall 3: Ignoring field-loop conditions

An unstable reading may result from transmitter power, loose wiring, grounding, or a faulty field instrument rather than the input module. Check the loop before condemning the hardware. Follow site-approved isolation, ESD, and replacement procedures.

Frequently Asked Questions

Q1. What is the Honeywell CC-PAIN01 used for?

It acquires 16 single-ended 4–20 mA signals from compatible field transmitters for process monitoring and control in Honeywell Experion Series C systems.

Q2. Does the CC-PAIN01 support HART instruments?

It does not provide HART communication. It can acquire the analog current signal from a compatible transmitter, but HART-specific diagnostic and configuration access requires an appropriate HART-capable solution.

Q3. Can the CC-PAIN01 operate in a redundant configuration?

Yes. Honeywell documents the CC-TAIN11 as the redundant IOTA option for this module. Confirm the installed hardware arrangement and approved system configuration before replacement.

Q4. What should I provide when requesting a replacement quotation?

Provide the full model number, available nameplate details, installed IOTA model, required condition, quantity, and destination country. For critical applications, include the system configuration requirements and any applicable delivery deadline.

Q5. How can I verify new-surplus authenticity?

Request photographs of the actual unit, its labels, available traceability documentation, and a written condition declaration. New surplus typically refers to unused inventory outside the normal current-production supply chain; the label alone does not prove authenticity or functional condition.

Q6. Does a refurbished CC-PAIN01 include a warranty?

That depends on the supplier. Obtain written confirmation of the warranty period, covered failures, exclusions, and return process. Ask for functional test results if they are required for your site’s procurement or quality procedures.
