Honeywell CC-TAID01 16-Channel Analog Input IOTA

Description

Product Introduction & Engineering Value

The Honeywell CC-TAID01 provides the field termination interface for compatible Series C analog input modules. It supports current and voltage measurement configurations, including differential inputs, with wiring arrangements selected according to the installed I/O module and the requirements of each field circuit.

For maintenance teams, the key distinction is that CC-TAID01 is an IOTA, not a standalone analog input electronics module. Replacing it requires checking the installed I/O module, terminal wiring, jumper settings, and redundancy arrangement before returning process signals to service.

Technical Specifications

Technical basis: Honeywell’s Experion Series-C I/O Specification, document EP03-490-520, Version 1.5. Signal ranges and input characteristics depend on the installed I/O module and jumper configuration; they should not be interpreted as independent electronic specifications for the IOTA itself.

Functional design details

• Field termination: Provides the connection point between field instrumentation wiring and the associated I/O electronics.
• Signal configuration: Jumper settings determine whether supported channels use current or voltage inputs and whether the specified differential configuration is enabled.
• Field power distribution: The Series C IOTA architecture provides module power and supports field-power functions according to the applicable assembly design.
• Redundancy options: CC-TAID11 is the corresponding redundant IOTA listed by Honeywell. Redundancy requires a compatible system configuration, not simply a different termination assembly.
• Installation format: The nominal 9-inch assembly size is relevant when checking cabinet space and existing hardware layout.

Field Applications and Replacement Scenarios

Illustrative engineering scenario, not a verified customer installation.

Resolving inconsistent transmitter readings

Imagine a process unit where several pressure transmitters begin showing unstable readings after maintenance work in a control cabinet. The initial checks identify field wiring and grounding as possible causes. The team then discovers that the installed analog input termination assembly has damaged terminals and undocumented jumper changes.

Replacing the CC-TAID01 may resolve a termination-related fault, but it will not automatically correct an incorrect grounding arrangement, a wiring error, or a configuration mismatch. The replacement procedure should include:

1. Recording the existing terminal assignments and jumper positions.
2. Verifying the installed I/O module and the intended single-ended or differential configuration.
3. Inspecting field wiring, cable shields, and grounding against the approved drawings.
4. Installing the correct assembly under the site’s electrical isolation procedure.
5. Verifying channel readings and alarm behavior before returning the process to normal operation.

Application scenarios

1. Pressure and flow measurement in process units

Provides field termination for compatible analog input channels receiving signals from pressure transmitters, flow transmitters, and other instrumentation.

2. Chemical dosing systems

Supports analog measurement circuits used to monitor process variables in dosing skids, provided the installed module supports the required signal range and wiring arrangement.

3. Differential signal acquisition

Can be used where a compatible Series C analog input module is configured for differential measurement and the field circuit requires the corresponding termination arrangement.

Quality Assurance: New Surplus and Refurbished Stock

The condition of a replacement IOTA should be documented separately from its compatibility with the control system. A physically clean assembly is not proof of electrical integrity or authenticity.

Recommended supplier verification procedure:

1. Identify the assembly. Request a clear photograph of the Honeywell label, model number, revision markings, and any available part number.
2. Inspect the hardware. Check terminal blocks, connectors, mounting points, and the circuit board for corrosion, damage, or evidence of unauthorized repair.
3. Review traceability. Ask for available sourcing records and a written condition statement identifying the item as new surplus, used, or refurbished.
4. Confirm compatibility. Match the assembly to the installed I/O module and the required nonredundant or redundant configuration.
5. Document acceptance. Request applicable inspection or test records and obtain written warranty and return terms.

Important: These are recommended procurement checks, not a claim that a specific CC-TAID01 unit has passed testing or has been authenticated by Honeywell.

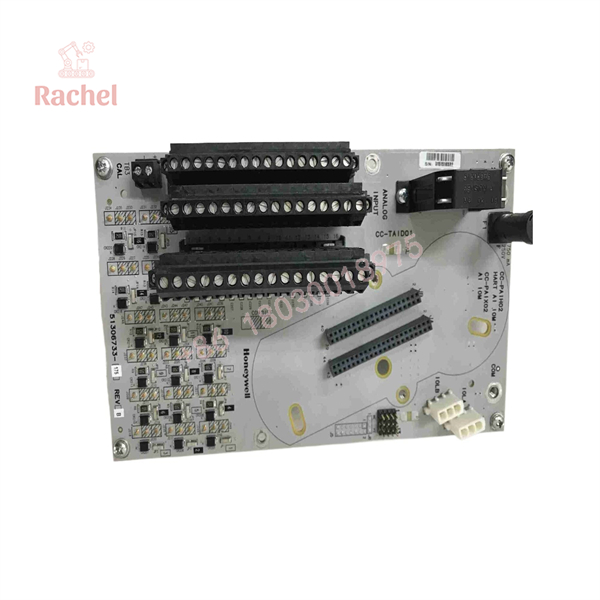

CC-TAID01

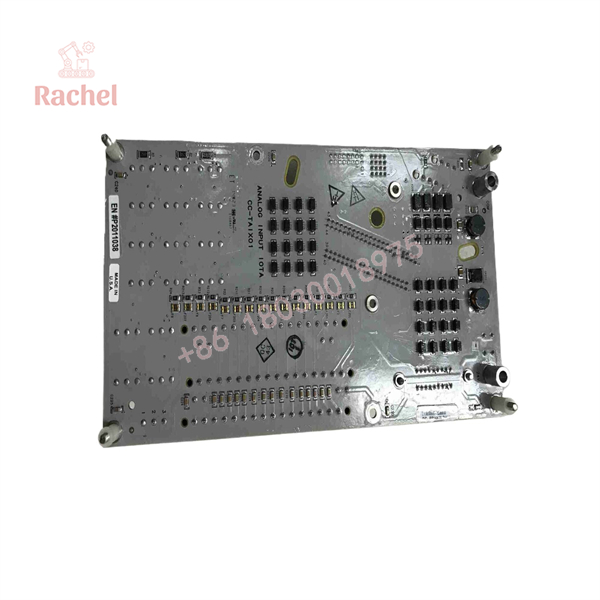

CC-TAID01

Replacement Pitfalls: Three Checks Before Ordering

Pitfall 1: Ordering an IOTA as though it were the I/O module

CC-TAID01 provides termination and interface functions. The associated I/O module contains the electronics responsible for acquiring and processing signals. If the fault is in the I/O module, replacing the IOTA alone may not solve the problem.

Pitfall 2: Overlooking jumper configuration

Honeywell documents jumper-dependent input configurations for compatible analog input modules. Incorrect jumper positions can change how a channel is wired or measured. Record the existing configuration and confirm the applicable wiring instructions before moving conductors or modifying jumpers.

Pitfall 3: Confusing CC-TAID01 with CC-TAID11

CC-TAID01 is the nonredundant 9-inch assembly; CC-TAID11 is the redundant 12-inch counterpart. Verify the installed carrier, module arrangement, cabinet space, and redundancy design before ordering. The part numbers should not be treated as interchangeable.

Part-number verification note: Third-party listings associate CC-TAID01 with different assembly numbers, including 51306733-175 and 51308353-175. The available Honeywell specification confirms the model and supported I/O configuration but does not establish that both numbers represent the same revision. For purchasing, use the complete identification on the installed unit and confirm the proposed replacement against Honeywell documentation or an authorized technical source.

Frequently Asked Questions

Q1. What is the Honeywell CC-TAID01 used for?

It is a Series C analog input termination assembly that provides field wiring connections for compatible Honeywell analog input modules in Experion PKS installations.

Q2. How many channels does the CC-TAID01 support?

It is specified for 16 analog input channels. The supported single-ended and differential configurations depend on the associated I/O module and the field wiring setup.

Q3. Which I/O modules are compatible with CC-TAID01?

Honeywell lists CC-PAIX01 and CC-PAIX02 among the compatible analog input modules. Other supported combinations should be checked against the applicable hardware and system documentation.

Q4. Can CC-TAID01 be replaced with CC-TAID11?

Not as an automatic like-for-like substitution. CC-TAID11 is the redundant counterpart. Confirm that the installed system is designed for redundancy and that the carrier and I/O configuration support the intended assembly.

Q5. How can I verify new-surplus authenticity?

Request photographs of the actual item, its identification label, available traceability records, and a written condition declaration. New surplus generally means unused inventory outside the manufacturer’s normal current distribution channel; it does not by itself prove original packaging or manufacturer warranty coverage.

Q6. What warranty is available for CC-TAID01?

Warranty coverage depends on the supplier and the condition of the specific unit. Obtain the coverage period, return policy, and defect-resolution procedure in writing before placing an order. Do not assume that a surplus or refurbished assembly carries the original manufacturer’s warranty.
