Honeywell CC-TUIO31 Universal Input Output Assembly

Description

Product Introduction & Engineering Value

The Honeywell CC-TUIO31 handles up to 32 channels of software-configurable points, removing the need to mix and match individual analog input, analog output, digital input, or digital output modules. Each point adapts to your field hardware requirements directly inside the Experion Control Builder software framework. This eliminates the common engineering bottleneck of running out of a specific point type right during commissioning phases.

This module features factory-applied conformal coating to prevent corrosion in humid or chemically aggressive environments. Because it operates as a non-redundant configuration, it offers a space-conscious footprint inside control cabinets where high-density field distribution is required but dual-line physical redundancy is not mandated.

Technical Specifications

Field Application & The “Trench” Experience

The “Trench” Story

During an emergency upgrade at an industrial water treatment facility, an installation team realized the field wiring layout had inverted the ratio of flow transmitters (analog inputs) to motorized control valves (analog outputs). Under standard I/O designs, this mistake requires tearing out physical cards and overnighting different assemblies. Instead, the team utilized the CC-TUIO31 IOTA baseplate. By modifying the channel definitions in the Experion software database, they reassigned the mismatched hardware channels within seconds. No physical rewiring or structural cabinet overhauls were required, keeping the project tracking strictly on schedule.

Specific Application Scenarios

• Lime Kiln Exhaust Monitoring: Safely manages fluctuating temperature, pressure, and damper feedback signals over a unified termination deck.
• Tank Farm Inventory Management: Collects tank level gauge inputs and safety high-level switch alerts onto a single panel asset.
• Cooling Tower Fan Control Arrays: Aggregates vibration sensor loops and variable frequency drive status feedback links simultaneously.

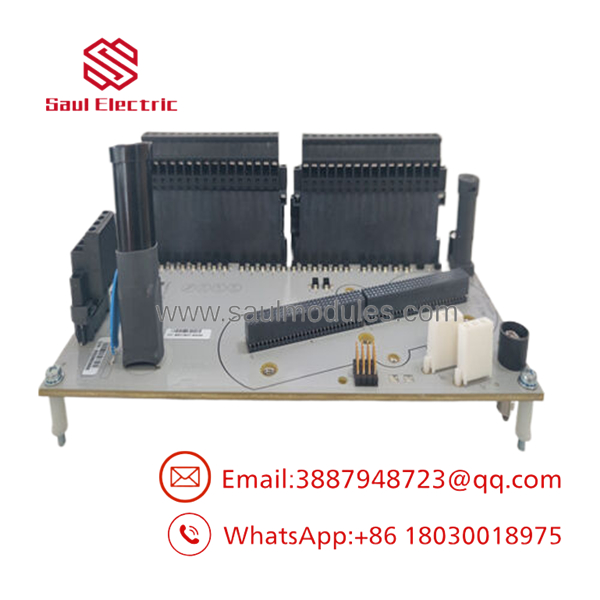

CC-TUIO31

Transparency SOP: QA & Testing

Our inventory engineering team qualifies every CC-TUIO31 through a systematic inspection pattern before packaging:

• Visual Microscope Inspection: We verify trace path integrity on the printed circuit board assembly and check for voids in the factory conformal coating layer.
• Terminal Block Stress Check: Every screw-cage mechanism on the two-level interface is checked for thread binding or physical housing stress.
• Loop Configuration Testing: We drive sample configurations through all 32 channels to verify successful transitioning across analog inputs, digital statuses, and output loops.
• High-Potential Isolation Test: A controlled 1500 VDC test verifies insulation resistance between the field connection planes and the logic interfaces.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ The Configuration Conflict: A common oversight when dropping in a replacement CC-TUIO31 is failing to match the channel configuration in the offline database before downloading to the module. If a channel expects an active 4-20mA loop but detects an unpowered dry contact field loop, the module will throw a persistent channel fault that can freeze upstream logic blocks.
• PRO TIP: When dealing with HART field devices, ensure your Experion system has the correct Device Description (DD) files loaded. The CC- passes pass-through HART digital data, but it cannot translate variables if the system database lacks the corresponding instrument profile.
• ⚠️ Baseplate Grounding Continuity: The CC- relies on direct mechanical contact with the cabinet mounting rail for proper grounding and shielding performance. Paint overspray or rust on the carrier rail can disrupt this connection, leading to signal drift or erratic analog readings on high-impedance loops.

Dynamic FAQ

• • A: Yes. This is the primary design function of the Universal I/O architecture. Every channel among the 32 available points can be independently designated as input, output, analog, or digital without interference.
• Q: Does this unit include the plug-in electronic I/O modules?
  • A: No, this model number represents the Termination Assembly (IOTA) baseplate infrastructure. The active processing electronic modules must be inserted onto this baseplate to complete the functional setup.
• Q: What does the “Coated” status specify for this model number?
  • A: It indicates a protective layer applied to the circuitry that shields sensitive elements from airborne contaminants, moisture, and chemical corrosion typical in refining or paper processing plants.
• Q: What type of tracking documentation is supplied with this New Surplus assembly?
  • A: Each assembly includes our internal test certificate certifying conformity to original 1500V isolation limits and standard 24 VDC loop operation specs, backed by our 12-month full-replacement warranty.
