Description
Product Introduction & Engineering Value
The ICS Triplex 9402 is a digital input module used within the AADvance safety and critical-control platform. It acquires discrete field signals and makes those states available to the AADvance controller for logic, interlocking, shutdown, and monitoring functions. The AADvance architecture was designed for both safety-related and other critical process-control applications.
This is not a generic 24 VDC input card. The 9402 belongs to a specific AADvance I/O architecture, so replacement work should include the controller configuration, associated termination assembly, module revision, and application safety requirements.
Technical Specifications
- Manufacturer: ICS Triplex
- Current Brand: Rockwell Automation / ICS Triplex
- Model: 9402
- Part Number: 9402-0001
- Product Type: Digital Input Module
- System: AADvance Controller
- Series: 9000 / 9400 I/O
- Backplane Voltage: 18–32 VDC
- Backplane Current Rating: 260 mA maximum listed for the 9402 module position
- Application: Safety and critical process control
- Installation: AADvance controller base/backplane
- I/O Type: Digital input
- Associated System: AADvance 9000/9100 architecture
Rockwell’s AADvance documentation lists the 9402 with an 18–32 VDC backplane voltage range and a 260 mA maximum electrical rating. These are backplane ratings, not field-input signal specifications, and should not be interpreted as the module’s field input voltage/current ratings.
Important specification distinction
This point matters during procurement: 9402 is the module designation; 9402-0001 is identified by supplier documentation as the associated part number.
Do not substitute a similarly numbered AADvance module such as 9432, 9451, or 9482. Those are different I/O functions. Rockwell’s documentation distinguishes the 9402 digital input module from the analog and output modules in the same family.
9402

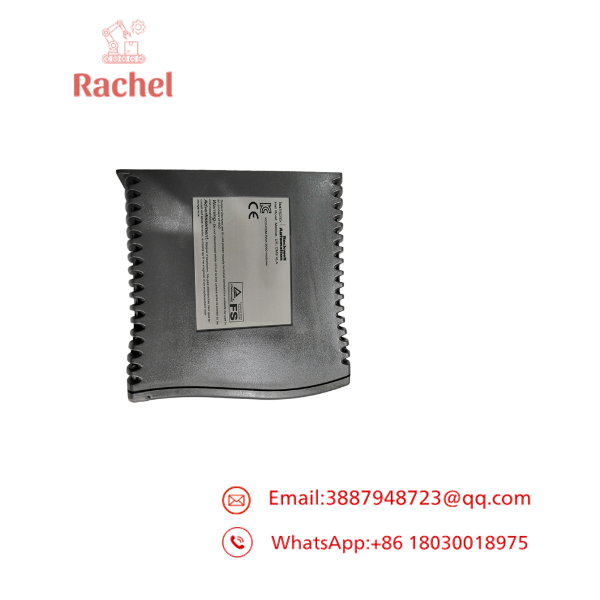

9402
Field Application & the “Trench” Experience
A safety controller in a process plant begins reporting an abnormal input condition from a field interlock. The field device tests correctly. Wiring continuity is good. The problem follows the I/O position when the suspected 9402 module is exchanged with a known-good unit.
The maintenance team replaces the module, but before returning the system to service, they verify the configured I/O point assignments and perform the required safety-system proof testing.
That last step is important. In a safety-related AADvance installation, replacing hardware is only part of the maintenance activity. The affected safety function must be verified against the approved application design and commissioning procedure.
Specific application scenarios
- Emergency shutdown input monitoring — Acquiring discrete status signals used by an AADvance safety application.
- Burner management systems — Monitoring permissives, trips, flame-related discrete signals, and equipment status.
- Process interlocking — Monitoring limit switches, pressure switches, valve feedback, and other discrete field conditions.
- Fire and gas applications — Integrating discrete alarm/status signals into a critical control architecture.
These application categories are consistent with published descriptions of AADvance deployments, including emergency shutdown, fire and gas, burner management, boiler/furnace control, and critical process control.
Transparency SOP: QA & Testing
For new-surplus or refurbished ICS Triplex 9402 inventory, testing should be performed in an appropriate AADvance environment.
- Identity check — Confirm the module designation and, where applicable, 9402-0001 part number.
- Visual inspection — Examine the housing, PCB, connector interfaces, and labeling.
- Revision capture — Record hardware and firmware identification.
- Backplane test — Install the module in a compatible AADvance test chassis.
- Power verification — Confirm operation within the applicable 18–32 VDC system supply range.
- Controller recognition — Verify that the AADvance controller correctly identifies the module.
- Digital-input simulation — Apply controlled field-state signals through the correct termination/interface hardware.
- Point verification — Confirm that each input changes state correctly in the controller.
- Diagnostic test — Check module and system diagnostics for faults.
- Documentation — Record test conditions and results.
QA warning: For a safety I/O module, “powers on” is not a meaningful functional acceptance test by itself.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing module rating with field-input rating.
The published 18–32 VDC / 260 mA figures for the 9402 in the AADvance system documentation relate to the module/backplane electrical rating. They should not automatically be used as the field input specification.
PRO TIP: Use the applicable AADvance I/O and termination documentation for the actual field wiring requirements.
⚠️ Trap #2 — Substituting another 9400-series module.
The AADvance family contains different digital and analog I/O modules. The 9402 is specifically identified as a digital input module.
⚠️ Trap #3 — Treating a safety-module replacement like an ordinary PLC swap.
After replacement, the affected safety function may require formal verification, proof testing, or controlled commissioning according to the site’s safety lifecycle procedures.
⚠️ Trap #4 — Ignoring the termination assembly.
The module is only one part of the AADvance I/O signal path. Confirm the associated termination assembly, field wiring, and point assignments before declaring the replacement complete.
⚠️ Trap #5 — Forgetting revision compatibility.
Legacy safety controllers can be sensitive to hardware and firmware revisions. Record the original module revision before purchasing a surplus replacement.
Dynamic FAQ
What is the ICS Triplex 9402?
The ICS Triplex 9402 is a digital input module for the AADvance Controller. It is part of the 9000-series AADvance I/O architecture.
What is the associated part number?
Supplier documentation identifies 9402-0001 as the part number for the ICS Triplex T9402 digital input module.
Is the 9402 an analog input module?
No. The 9402 is identified as a digital input module. AADvance also includes separate analog-input and output modules, such as 9432 and 9482.
What is the AADvance supply range?
Rockwell’s system documentation lists an 18–32 VDC backplane voltage range for the 9402 and a 260 mA maximum electrical rating. These values should not be mistaken for field-input specifications.
Where is the 9402 typically used?
AADvance systems are used in applications such as emergency shutdown, fire and gas, burner management, boiler/furnace control, and critical process control.
Can a refurbished 9402 be used in a safety system?
Potentially, but the module should be positively identified, tested in a compatible AADvance environment, and subjected to the site’s required safety verification and commissioning procedures.
What should I request when buying new-surplus 9402 stock?
Request photographs of the actual module, complete part number, hardware/firmware revision, storage condition, test report, and written warranty. For safety applications, specifically ask whether the supplier performed an actual I/O functional test.
Is new-surplus 9402 authentic?
“New surplus” should describe the condition, not prove authenticity. Verify the OEM markings, part number, revision, physical construction, and provenance. A supplier should be able to provide photographs of the actual unit rather than a generic catalog image.
What warranty should I request?
For surplus or refurbished safety I/O, obtain written warranty terms covering functional operation. Also clarify whether the supplier’s warranty excludes application-specific commissioning or safety-validation requirements.
