Description
Product Introduction
The ICS Triplex T8310 Trusted Expander Processor sits at the heart of distributed Trusted TMR Safety Instrumented Systems (SIS). Operating inside an Expander Chassis, it interfaces directly with the main T8110B Controller Processor setup, routing fault-tolerant voting logic, I/O scan data, and health diagnostics seamlessly across multiple racks without sacrificing system SIL 3 integrity.
Unlike standard remote I/O adapters that reduce a system to single-channel communications, the T8310 maintains full fault tolerance end-to-end. It processes fault-masked data across three isolated lockstep channels, allowing process industries to scale up high-density I/O configurations while guaranteeing zero single points of failure.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | ICS Triplex (Rockwell Automation) |
| Product Family | Trusted System |
| Model Number | T8310 |
| Module Type | Expander Processor (TMR) |
| Safety Integrity Level | IEC 61508 SIL 3 Capable |
| System Architecture | Triple Modular Redundant (3-3-2-0 Degraded Mode) |
| Power Dissipation | 25W (Maximum) |
| Hot-Swap Support | Yes, full active online replacement |
| Operating Temperature | -5°C to 60°C (23°F to 140°F) |
| Diagnostics | Onboard hardware voting, active optical links, status LEDs |
Application Scenarios & The “Trench” Experience
A offshore platform experiences an intermittent communication bus error on an auxiliary ESD expander chassis. The original processor module shows internal hardware voting mismatch alarms. An unexpected trip on the high-pressure separator loop means burning $250,000 per day in deferred production. Waiting four months for factory production isn’t an option—you need a verified, drop-in T8310 module to slot in live without dropping the main controller offline.
- Emergency Shutdown Systems (ESD): Manages safe trips and isolated blowdown logic across extended process trains.
- Fire & Gas (F&G) Protection: Coordinates voting logic across thousands of flame, toxic gas, and heat detectors in large refineries.
- Burner Management Systems (BMS): Provides uninterrupted expansion I/O links for multi-burner utility boilers.
- Turbomachinery Control (TMC): Maintains microsecond response times for trip solenoids and overspeed protection loops.
Transparency SOP: Quality Assurance & Testing
- Inbound Inspection: Inspect backplane multi-pin connectors for bent pins, verify integrity of OEM tamper seals, and clear static damage checks.
- Backplane Power-Up Test: Mount module into a live Trusted T8300 Expander Chassis to verify initial power rails, internal self-test routines, and front status LEDs.
- Triplicate Bus Diagnostics: Connect to a master T8110B processor cluster and run active handshake diagnostics on Channels A, B, and C simultaneously.
- Thermal Stress Chamber Test: Run full data transfer patterns at elevated temperatures to expose latent semiconductor degradation.
- Final ESD Wrapping: Shield unit in specialized anti-static bags and custom-cut foam shipping containers to prevent transport shock.

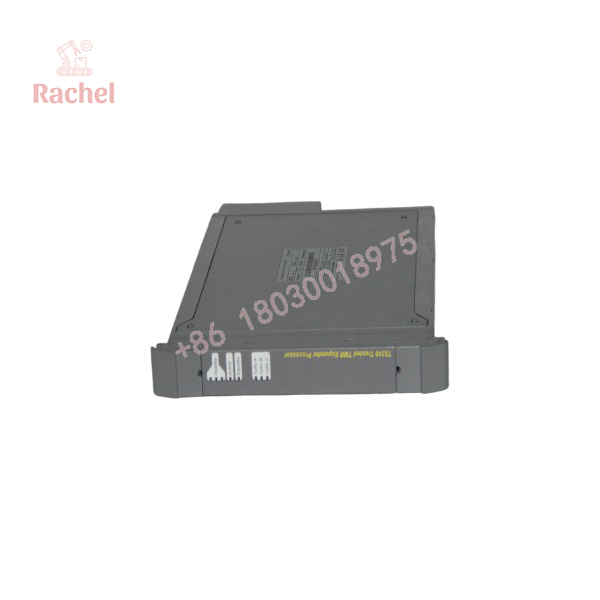

T8310

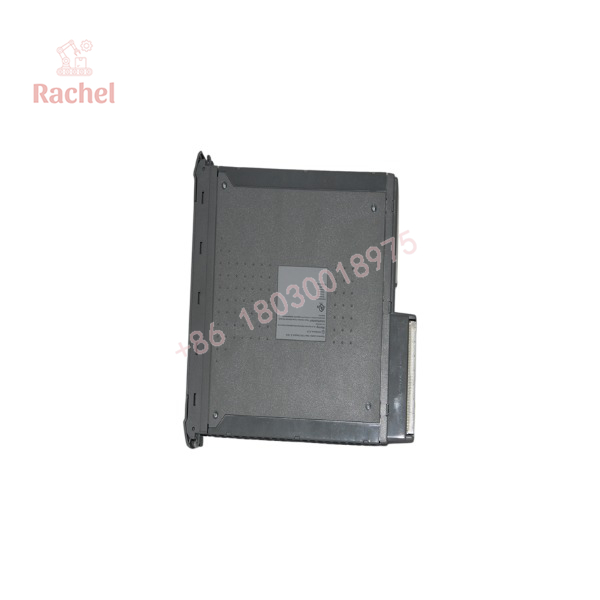

T8310
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Do Not Force the Module Latches: The top and bottom locking levers on the T8310 engage dense rear-bus mating pins. Applying brute force when sliding the card in will bend backplane pins. Guide the module evenly until the levers naturally catch.
- ❗ Firmware Alignment is Mandatory: Running a T8310 with a major firmware revision mismatch compared to your T8110B main processors will trigger a bus synchronization fault. Always verify system firmware in Toolset before performing an online slot swap.
- ⚠️ Observe Triple Link Integrity: Check that all three inter-chassis cable connections (Channels A, B, and C) are seated and locked. Running an expander on two channels leaves your safety loop vulnerable to a single point of failure if another fault hits.
- ❗ Slot Position Awareness: Expander Processors belong in dedicated processor slots on the Expander Chassis. Slotting a T8310 into an I/O module position can damage the backplane bus drivers.
Frequently Asked Questions (FAQ)
Q: Is the ICS Triplex T8310 hot-swappable in a live system?
A: Yes. The T8310 is designed for active online replacement. When inserted into a live, healthy Trusted system, it performs background health checks and synchronizes automatically without interrupting running process control.
Q: Can I run a single T8310 in an expander chassis, or do I need a redundant pair?
A: For full SIL 3 fault tolerance, a redundant pair of T8310 modules is installed in the chassis to provide fault-tolerant, uninterrupted expander bus communication.
Q: How does the T8310 handle internal component failures?
A: The module relies on internal Triple Modular Redundancy. If one internal processing path experiences a fault, the remaining two out-vote the failed path, report a diagnostic alarm, and keep the plant running.
Q: Why choose clean surplus T8310 modules over an OEM system upgrade?
A: Upgrading a legacy Trusted SIS rack often costs hundreds of thousands of dollars and requires extensive re-validation. Sourcing pre-tested surplus units extends system life for years at a fraction of the cost.
Q: What warranty is supplied with this surplus T8310 unit?
A: We back all surplus and fully tested industrial modules with a comprehensive 12-month replacement warranty.
