ICS Triplex 9451 Trusted System Logic Interface Module

Description

Product Introduction

The ICS Triplex 9451 (often designated as T9451) is a critical power distribution and interface module designed for the Rockwell Automation ICS Triplex Trusted Triple Modular Redundant (TMR) safety system. Engineered for high-integrity emergency shutdown (ESD), fire and gas (F&G) detection, and burner management systems (BMS), this module routes filtered DC power and diagnostic signals directly to the main processor and I/O bus cards across the chassis backplane.

In safety-critical installations, power stability is paramount. The 9451 isolates incoming system power rails to prevent external voltage spikes from reaching sensitive TMR processor logic. Featuring built-in auctioning diodes and real-time power rail monitoring, it ensures that even if one power feed fails completely, redundant power paths immediately carry the load without causing a voting trip or interrupting active safety functions.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2:30 AM on a deepwater offshore platform. A primary 24V power supply module on the main ESD rack experiences an internal capacitor failure, dropping Power Rail A. Without robust power auctioning on the backplane, the entire safety system could drop out, closing the subsea safety valves and causing a complete platform shutdown. The 9451’s internal auctioning circuit seamless transfers the full load to Power Rail B instantly, keeping the platform online while raising a maintenance alarm on the operator workstation.

• Offshore Oil & Gas Platforms – Emergency Shutdown Systems (ESD) – Distributes continuous redundant power to critical valve trip circuits and safety processors.
• Petrochemical Refineries – Toxic & Flammable Gas Detection – Maintains uninterrupted telemetry between gas sensors and TMR voting logic.
• LNG Import/Export Terminals – Cryogenic Tank Safety Interlocks – Ensures power rail integrity for high-availability containment monitoring.

During a routine overhaul at an onshore gas processing plant, an instrumentation crew discovered a loose terminal lead on a power bus bar that caused intermittent voltage dips. The ICS Triplex 9451 module successfully absorbed the voltage transients and kept the main processor rack powered up, avoiding an unexpected process trip during maintenance.

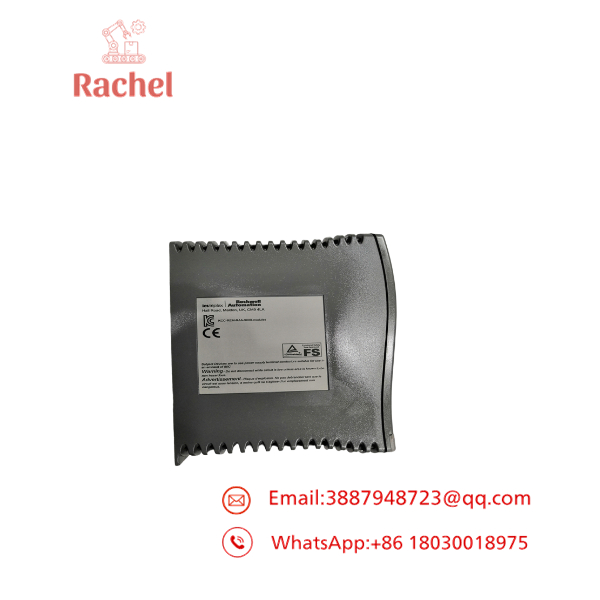

9451

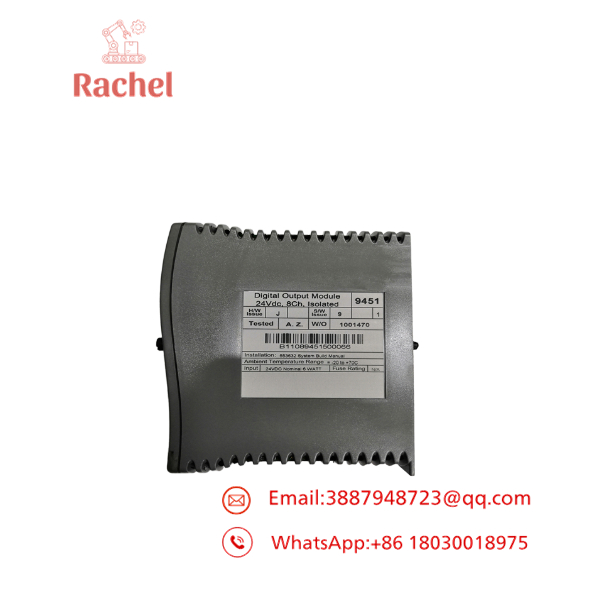

9451

Transparency SOP: Quality Assurance & Testing

We test every ICS Triplex 9451 module on actual Trusted rack hardware before dispatch. Here is our direct verification process:

1. Inbound & Conformal Inspection: We verify PCB solder joints, check for conformal coating degradation or heat discoloration, and inspect backplane pin alignment under magnification.
2. Backplane Power-On & POST: The module is seated in a powered ICS Triplex chassis to verify Power-On Self-Test (POST) routines and bus communication.
3. Dual-Power Rail Load Testing: Using precision DC load banks, we feed independent 24V power sources into Input 1 and Input 2 to test auctioning diode drop and verify seamless power crossover.
4. Diagnostic & LED Verification: We cycle power input levels above and below operational limits to verify that internal fault monitoring logic triggers front-panel LEDs and alerts the main processor correctly.
5. Anti-Static ESD Packaging: Cleared modules are thoroughly cleaned, protected against static discharge, and sealed in heavy-duty anti-static bags with custom foam block packing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do not force the module into the chassis slot! The high-density connectors on the rear of the Trusted chassis require straight alignment. Slide the 9451 evenly along the top and bottom card guides and engage both top and bottom ejector handles simultaneously. Forcing it will bend the backplane pin pins.
• ❗ Verify both 24V power sources before replacement. Before dropping in a replacement 9451, measure the incoming voltage at both terminal blocks with a digital multimeter. A dead primary or secondary power feed will immediately trigger a fault LED on the newly installed module.
• ⚠️ Check your field earthing bar. Ensure the chassis ground lug connected to the 9451 slot housing is tied securely to the cabinet’s safety earth ground. Poor grounding degrades the module’s transient surge suppression capabilities.
• ❗ Match software revision logs. Ensure your TriStation or system diagnostic tool recognizes the module slot assignment upon insertion to avoid unacknowledged hardware configuration alarms in the system event log.

Frequently Asked Questions (FAQ for Conversion)

Q: Can the ICS Triplex 9451 be replaced online while the safety system is running?

A: In a properly configured, fully redundant Trusted chassis setup, power distribution and I/O interface modules can be replaced online. However, always follow your plant’s specific Safety Instrumented System (SIS) bypass SOP before pulling any module from a live safety rack.

Q: What is the difference between the 9451 and standard single-input power modules?

A: The 9451 (T9451) is specifically designed with dual-redundant input power auctioning and enhanced filtering, allowing it to take power from two independent 24V sources and feed a unified, noise-free DC rail to the backplane.

Q: What does a red FAULT light on the front panel indicate?

A: A solid red FAULT light indicates either a complete loss of one input power feed, an internal auctioning diode short/open fault, or an out-of-spec internal rail voltage. Check incoming terminal voltages first using a multimeter.

Q: Are these units original ICS Triplex / Rockwell Automation manufacture?

A: Yes, 100%. We only supply original OEM ICS Triplex hardware. We do not sell reverse-engineered, unofficial, or third-party cloned safety cards.

Q: What warranty comes with this module?

A: All ICS Triplex 9451 modules sold by us come standard with a comprehensive 12-month operational warranty covering power stability, diode logic, and diagnostic functionality under normal operating conditions.
