Kollmorgen E33NCHA-LNN-NS-00 Hybrid Stepper Motor

Description

Product Introduction & Engineering Value

The E33NCHA-LNN-NS-00 is an E-Series hybrid stepper motor intended for applications where controlled positioning, repeatable motion, and substantial holding torque are required. Available part-number references associate it with a NEMA 34 mechanical configuration, four-wire parallel winding arrangement, and an approximately 8.8 Nm torque rating.

For a replacement project, the important issue is not simply whether the shaft will physically fit. The motor winding configuration, drive current, supply voltage, mechanical mounting, shaft geometry, and controller/drive compatibility all need to match the original installation. Treat the complete motor part number as the ordering reference.

Technical Specifications

The published figures above come from secondary industrial-part references rather than a currently accessible OEM datasheet. In particular, voltage/current and performance figures should be checked against the motor nameplate and the original machine documentation before commissioning.

Field Application & The “Trench” Experience

A useful example is an older CNC positioning machine in which one axis began losing position after extended operation. The maintenance team initially suspected the stepper amplifier because the controller reported intermittent following errors. The actual problem was a degraded motor winding connection and a replacement motor with a different winding configuration would have changed the drive-current requirement.

The E33NCHA-LNN-NS-00 is the kind of spare where the part-number suffix matters. Replacing it by frame size alone is not adequate. The maintenance engineer needs to compare the complete motor designation, winding arrangement, electrical ratings, shaft dimensions, connector or lead arrangement, and drive settings before installation.

Niche application scenarios

• CNC auxiliary-axis positioning: Controlled movement of tooling, fixtures, or auxiliary machine axes.
• Automated material-positioning equipment: Indexing mechanisms where repeatable incremental movement is required.
• Precision machine-tool mechanisms: Rotary or linear mechanisms driven through a screw, belt, or mechanical transmission.
• Legacy factory automation: Replacement of Pacific Scientific/Kollmorgen motion components where redesigning the machine is undesirable.

Third-party references also associate the E33NCHA-LNN-NS-00 with machine-tool and industrial motion applications.

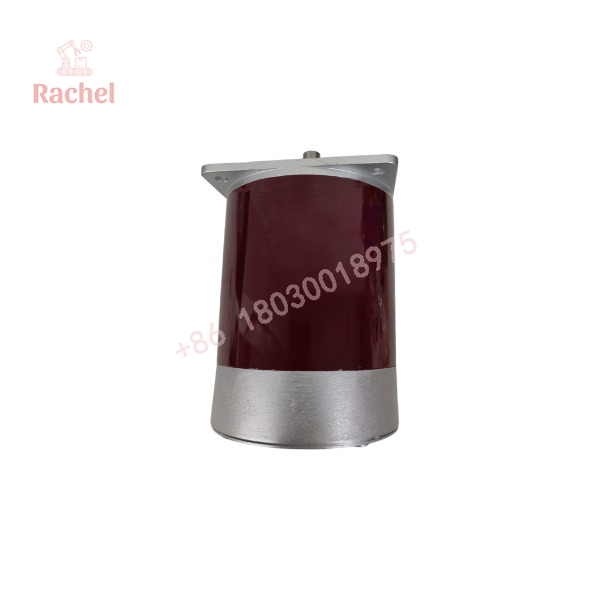

E33NCHA-LNN-NS-00

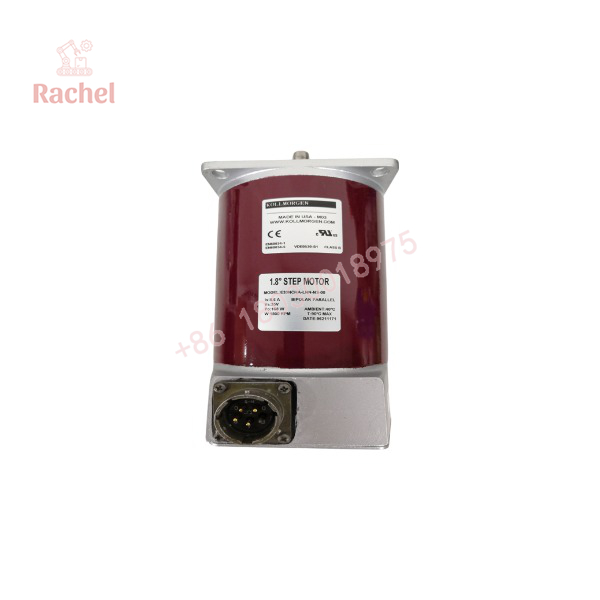

E33NCHA-LNN-NS-00

Transparency SOP: QA & Testing

For New Surplus or refurbished inventory, a useful incoming inspection sequence is:

1. Identity check — Confirm the complete E33NCHA-LNN-NS-00 marking, manufacturer label, shaft configuration, connector/lead arrangement, and physical construction.
2. Mechanical inspection — Check the shaft, mounting face, bearings, housing, leads, and mounting holes for impact damage, corrosion, or evidence of modification.
3. Electrical verification — Measure winding resistance and insulation condition against the applicable test criteria before connecting the motor to a drive.
4. Rotation test — Where test equipment permits, operate the motor using an appropriate compatible drive and verify smooth rotation without abnormal noise or excessive vibration.
5. Documentation review — Record the observed nameplate data and compare it with the customer’s removed motor before shipment.

Important: A powered rotation test is not, by itself, proof that a motor is suitable for the customer’s machine. Drive-current configuration and mechanical load conditions still have to be validated during installation.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Matching the frame but ignoring the winding.
A NEMA 34 replacement is not automatically electrically interchangeable. The E33NCHA-LNN-NS-00 is reported with a four-wire parallel winding configuration. The replacement drive settings must correspond to the actual motor winding and rated current.

⚠️ Trap #2 — Treating 24/48 VDC as a simple supply-voltage specification.
The published reference lists both 24 VDC and 48 VDC configurations together with different current figures. Do not apply a generic DC supply directly to the motor. The stepper amplifier determines the actual phase-current control and operating conditions.

PRO TIP: Before removing the original motor, photograph the nameplate, connector, cable routing, shaft coupling, and mounting orientation. Those four photographs can prevent a surprisingly expensive troubleshooting session.

⚠️ Trap #3 — Trusting online category labels.
Search results currently contain conflicting classifications for this exact part number, including motor, drive, electric machine, and even unrelated control-module descriptions. The stronger evidence points to an industrial stepper motor, but procurement should verify the physical part number and manufacturer marking before purchase.

Dynamic FAQ

Is the E33NCHA-LNN-NS-00 a PLC or I/O module?

No. Available part references identify it primarily as a Kollmorgen/Pacific Scientific E-Series hybrid stepper motor. Some reseller databases incorrectly categorize the part number as a drive or industrial control module.

What is the torque rating?

A secondary technical listing specifies approximately 8.8 Nm (6.5 lb-ft). This value should be confirmed against the motor’s nameplate or applicable manufacturer documentation for the exact configuration being supplied.

What frame size does it use?

The available reference identifies the motor with a NEMA 34 frame configuration, with a stated frame diameter of approximately 3.38 inches. Mechanical dimensions should be checked against the customer’s existing motor before installation.

Can I replace another NEMA 34 stepper motor with this model?

Not based on frame size alone. Compare torque, winding arrangement, phase current, voltage, shaft dimensions, mounting geometry, inertia, and the drive’s electrical requirements before approving a substitution.

Is this part available as New Surplus?

Availability varies by inventory source. New Surplus should mean unused original inventory rather than a newly manufactured replacement. For procurement, request photographs of the actual nameplate and packaging, confirm the complete part number, and establish the seller’s warranty terms before issuing a purchase order.

What warranty should I request?

For a critical production spare, request the warranty in writing and clarify whether it covers DOA, electrical failure, mechanical defects, and the return process. A commonly advertised warranty for this part is one year, but the warranty actually offered should be confirmed with the supplier before purchase.
