Product Introduction & Engineering Value
When an older machine loses a servo amplifier, replacing the drive is only half the job. The real challenge is preserving motor parameters, feedback scaling, and motion network configuration. The S21260-SRS provides a compact digital servo control platform for applications requiring accurate torque, speed, and position control.
Engineers maintaining legacy semiconductor tools, packaging machines, and precision assembly equipment often keep this drive as a critical spare because it matches existing Kollmorgen S200 architectures. Correct SynqNet configuration and servo tuning data are essential during replacement.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Danaher Motion / Kollmorgen |
| Model | S21260-SRS |
| Series | S200 |
| Product Type | Digital brushless servo drive |
| Input Voltage | 120 VAC / 240 VAC class |
| Continuous Output Current | 12 ARMS |
| Peak Output Current | 18 ARMS |
| Peak Output Power | Up to approximately 10 kVA |
| Feedback Interface | High-resolution encoder / Smart Feedback Device |
| Feedback Resolution | Up to 24-bit feedback |
| Communication Interface | SynqNet |
| Service Interface | RS-232 configuration port |
| Control Modes | Position, velocity, torque |
| Mounting Type | Panel mount |
| Cooling Method | Convection cooling / cabinet airflow |
The S21260-SRS supports high-speed digital servo control with an S200 architecture featuring high-resolution feedback processing and a velocity loop bandwidth up to approximately 800 Hz.
Field Application & The “Trench” Experience
A semiconductor inspection machine running a legacy SynqNet motion platform began producing intermittent axis following errors after years of continuous operation. Maintenance technicians initially suspected encoder wiring because the faults appeared only during rapid acceleration cycles.
During scheduled maintenance, engineers replaced the existing S21260-SRS servo drive with a tested spare unit. They restored the original motor parameters, verified SynqNet communication, checked encoder feedback polarity, and completed a controlled axis tuning procedure.
The machine returned to production without changing the motion controller software.
The field lesson: servo drive replacement is a configuration recovery task, not simply a hardware exchange.
Typical applications include:
- Semiconductor wafer handling stages requiring synchronized axes
- Electronic assembly machines with high-speed pick-and-place mechanisms
- Packaging equipment with coordinated rotary and linear servo motion
- Precision inspection systems using closed-loop positioning

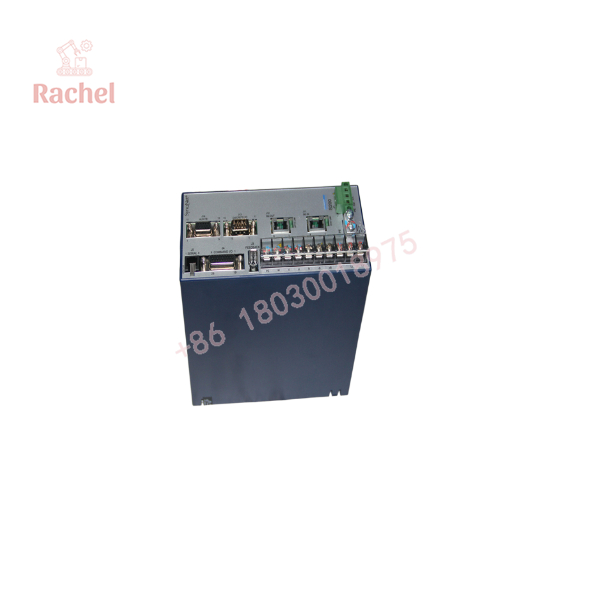

S21260-SRS

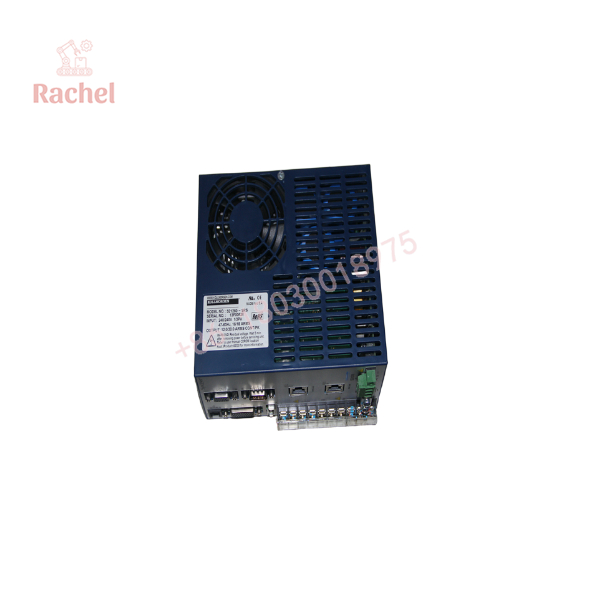

S21260-SRS
Transparency SOP: QA & Testing
A reliable S21260-SRS replacement should pass a structured evaluation process before being placed into production inventory.
Verification procedure:
- Visual and electrical inspection
- Confirm model and revision markings
- Inspect power terminals and communication connectors
- Check for abnormal heat damage or contamination
- Power testing
- Apply controlled AC input
- Verify startup sequence
- Check fault indicators and status communication
- Functional validation
- Test SynqNet communication
- Verify parameter access
- Confirm motor command response
- Validate feedback input operation
A servo drive that powers on is not necessarily ready for production service. Motion hardware requires functional verification.
The Veteran’s Tech Trap Guide
⚠️ Do not replace the drive without saving parameters
The S21260-SRS stores application-specific settings. Motor data, feedback configuration, current limits, and tuning values must be preserved before removing the original unit.
PRO TIP: Export the servo configuration file before shutdown whenever possible.
⚠️ SynqNet compatibility must be checked
The SRS version is designed for SynqNet-based motion architectures. A mechanically similar S200 drive without the correct communication option may not function as a direct replacement.
⚠️ Encoder feedback problems can mimic drive failures
Incorrect feedback wiring, damaged encoder cables, or incompatible feedback devices may create position errors even when the servo amplifier is operating correctly.
Dynamic FAQ
Q1. What is the Danaher S21260-SRS used for?
The S21260-SRS is a digital servo drive used for brushless AC servo motor control in precision automation systems. It provides position, velocity, and torque regulation.
Q2. Is the S21260-SRS part of the Kollmorgen S200 series?
Yes. The S21260-SRS belongs to the S200 servo drive family originally associated with Kollmorgen motion products.
Q3. What does the SRS suffix indicate?
The SRS version includes SynqNet communication hardware for networked multi-axis motion applications.
Q4. Can the S21260-SRS be replaced with another S200 drive?
Not automatically. Replacement depends on:
- Communication option
- Motor compatibility
- Feedback device
- Current rating
- Stored motion parameters
Q5. Are refurbished S21260-SRS drives tested before shipment?
A qualified refurbished unit should include power testing, communication verification, parameter checks, and functional inspection before being used as a production spare.
Q6. Is the S21260-SRS still available as a new OEM product?
The S200 series is considered a legacy motion platform. Current availability is generally through remaining inventory, new surplus stock, or tested refurbished sources.
Q7. What warranty should apply to a replacement S21260-SRS?
Warranty depends on supplier testing standards and product condition. Industrial automation spare suppliers typically provide limited functional warranty coverage for tested surplus or refurbished servo drives.
