KOLLMORGEN SERVOSTAR343 S3030 1-NA Servo Drive

Description

Product Introduction & Engineering Value

The KOLLMORGEN SERVOSTAR343 S3030 1-NA is a digital servo amplifier built for precise machine motion control where repeatability, tuning accuracy, and reliable motor feedback processing are critical. It manages torque, speed, and position commands between the automation controller and servo motor system.

For engineers maintaining legacy production equipment, this SERVOSTAR 300 series drive represents a practical replacement option when the original motion platform remains mechanically sound. Correct parameter transfer and feedback verification are the key steps for successful installation.

Technical Specifications

Field Application & The “Trench” Experience

A machine builder supporting an older semiconductor handling system faced repeated axis faults after a SERVOSTAR343 drive showed unstable positioning behavior during wafer transfer cycles. Production could not justify a full motion-control redesign because the mechanical assemblies and PLC system were still performing correctly.

The maintenance team replaced the failed amplifier with a verified KOLLMORGEN SERVOSTAR343 S3030 1-NA unit, transferred the saved drive parameters, confirmed encoder feedback scaling, and completed axis tuning checks. The equipment returned to operation without changing the original machine control architecture.

Common application scenarios include:

• Precision indexing systems in semiconductor and electronics assembly equipment
• Servo-controlled feed axes in CNC and machining platforms
• Automated handling systems requiring repeatable positioning accuracy

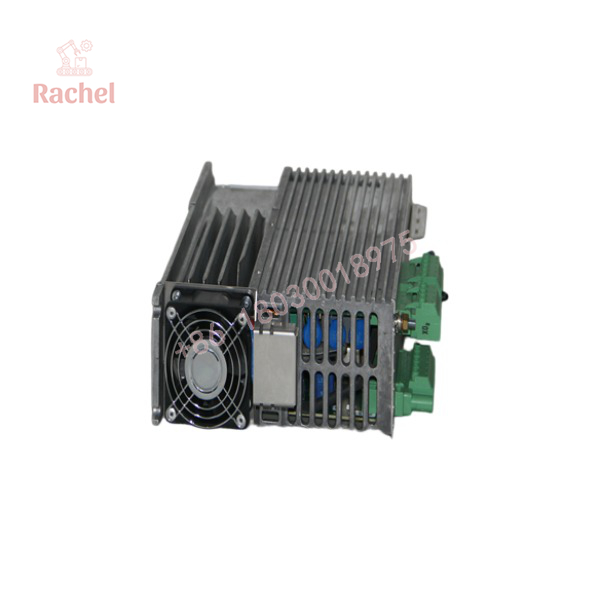

SERVOSTAR343 S3030 1-NA

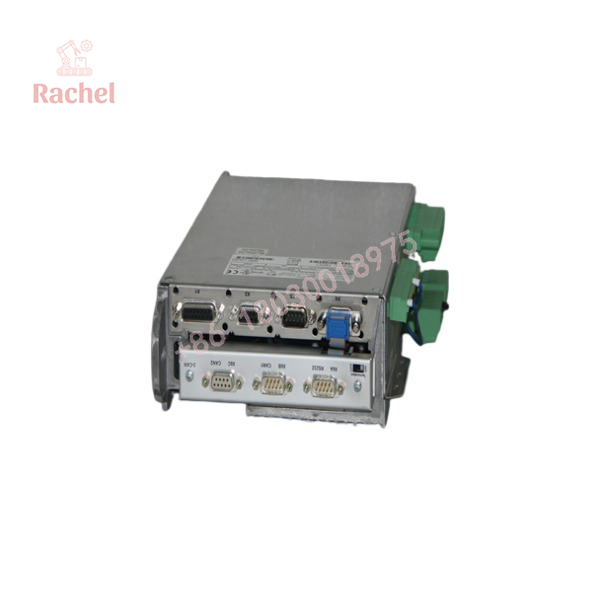

SERVOSTAR343 S3030 1-NA

Transparency SOP: QA & Testing

Before shipment, a SERVOSTAR343 S3030 1-NA unit should be evaluated through a documented inspection process:

Inspection Checklist

• Confirm model number, identification label, and hardware condition.
• Inspect connectors, terminals, cooling surfaces, and enclosure integrity.
• Check for corrosion, impact damage, or abnormal component wear.
• Perform power-up verification when suitable test equipment is available.
• Confirm display functions, fault reporting, and parameter access.
• Document test results before final packaging.

New surplus and refurbished industrial drives should be handled with traceable inspection records rather than visual checks alone.

The Veteran’s Tech Trap Guide

⚠️ Parameter Files Are the Real Asset

A servo drive replacement is not only a hardware swap. Incorrect motor constants, encoder settings, or tuning parameters can create following errors, vibration, or unexpected axis movement.

PRO TIP: Save the original SERVOSTAR configuration before removing the drive whenever possible.

⚠️ Do Not Assume Every SERVOSTAR343 Unit Is Identical

Part-number differences can represent changes in voltage range, feedback options, firmware, or hardware revision. Verify the complete ordering code.

⚠️ Feedback Wiring Errors Can Look Like Mechanical Problems

A reversed encoder channel or incorrect feedback configuration may appear as a motor or gearbox issue. Always validate feedback signals during commissioning.

Dynamic FAQ

Q1: What is the KOLLMORGEN SERVOSTAR343 S3030 1-NA?

The SERVOSTAR343 S3030 1-NA is a digital servo amplifier from the Kollmorgen SERVOSTAR 300 family used for controlling industrial servo motors in automated machinery.

Q2: Can this servo drive replace another SERVOSTAR343 model?

Replacement depends on the complete part number, electrical specifications, firmware compatibility, motor feedback type, and stored application parameters.

Q3: Does the SERVOSTAR343 require commissioning after installation?

Yes. Even when replacing an identical unit, engineers should verify drive parameters, motor identification data, feedback configuration, and motion tuning values.

Q4: How is a New Surplus SERVOSTAR343 S3030 1-NA verified?

Verification should include label inspection, hardware checks, electrical testing, and functional evaluation where possible. Authentic industrial surplus should have traceable inspection information.

Q5: What information should be provided when requesting a replacement?

Provide the full drive model number, machine application, motor model, input voltage details, controller type, and any available parameter backup files.

Q6: Is the SERVOSTAR343 S3030 1-NA suitable for legacy automation systems?

Yes. It is commonly considered for maintaining existing Kollmorgen-based motion systems where minimizing machine redesign and production interruption is a priority.
