Product Introduction
The Lam Research 810-068158-015 is a high-grade printed circuit board assembly engineered for semiconductor etch, deposition, and clean processing equipment. Operating inside the process module sub-rack, this card handles complex signal conversion, high-speed data routing, and interlock handshakes critical for maintaining chamber stability.
Designed specifically to perform under harsh semiconductor fab conditions, the 810-068158-015 features high-density layer isolation to protect sensitive logic paths from RF interference and high electrical noise. Its durable construction ensures stable loop response times during rapid process gas transitions and continuous chamber cycles.
Key Technical Specifications
| Parameter | Value / Description |
| Manufacturer | Lam Research Corporation |
| Part Number | 810-068158-015 |
| Board Assembly Type | Subsystem Control & Interface PCBA |
| System Compatibility | Lam Process Modules (Etch / CVD / ALD) |
| Operating Input Voltage | 5V / 24VDC (Rack Carrier Driven) |
| Interconnect Style | High-density edge pin connector / Ribbon headers |
| Board Material | Flame-retardant FR-4 with industrial conformal coating |
| Operating Temp Range | 10°C to +60°C (50°F to 140°F) |
Application Scenarios & The “Trench” Experience
It’s 2:45 AM, and an etch chamber halts midway through a critical production wafer lot due to an interlock communication timeout. The host tool software flags a sudden loss of sensor telemetry from the process bay sub-rack. Scrapping a lot of high-density wafers represents a massive financial hit, and diagnosing micro-fractures on a legacy circuit board while management tracks the downtime clock is every field engineer’s worst nightmare. Dropping in a bench-verified 810-068158-015 replacement board restores the interlock loop instantly, allowing the chamber to clear self-diagnostics and return to full operation before the morning shift change.
- Plasma Etch Systems – Interfacing mass flow controller feedback, vacuum sensor lines, and RF match unit interlocks.
- Deposition (CVD/ALD) Bays – Routing critical safety logic and thermal control loops in multi-zone heating modules.
- Wafer Transport Subsystems – Managing multi-point position feedback sensors across slit valves and robotic transfer arms.
Transparency SOP: Quality Assurance & Testing
We test every card on specialized signal rigs to verify performance before shipping.
- Inbound Optical Inspection: Microscopic evaluation of surface-mount components, trace continuity, edge connectors, and factory conformal coatings.
- Power Rail Integrity Check: Bench testing under regulated laboratory power to verify onboard logic rails and rule out dead shorts.
- Simulated Signal Handshake: Mounting to dedicated test fixtures to verify logic state switching, input/output response times, and bus communications.
- Thermal Signature Analysis: Thermal imaging under full simulated operational load to catch latent component hotspots or marginal drivers.
- Cleanroom-Safe Packaging: Cleaned, wrapped in ESD-shielding bags, and sealed in high-density anti-static foam containers.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Verify the -015 Revision Suffix: Pay strict attention to the dash number. Swapping an older -005 or -010 board for a -015 can lead to pinout mismatches or firmware incompatibilities on the main tool controller. Always match the -015 suffix.
❗ 2. Power Down Before Swap: Never hot-swap this card. The low-voltage logic gates on the 810-068158-015 will fry if exposed to inductive voltage spikes when seated into a live backplane card cage.
⚠️ 3. Inspect Card Edge Sockets: Before plugging in the replacement board, inspect the receiving socket in the tool rack. A damaged or carbonized socket pin from a previous board failure will instantly ruin your replacement unit.
❗ 4. Mandatory ESD Protection: Fabs are clean, but static will destroy delicate surface-mount ICs in seconds. Always use a connected, grounded ESD wrist strap when handling or installing this board.

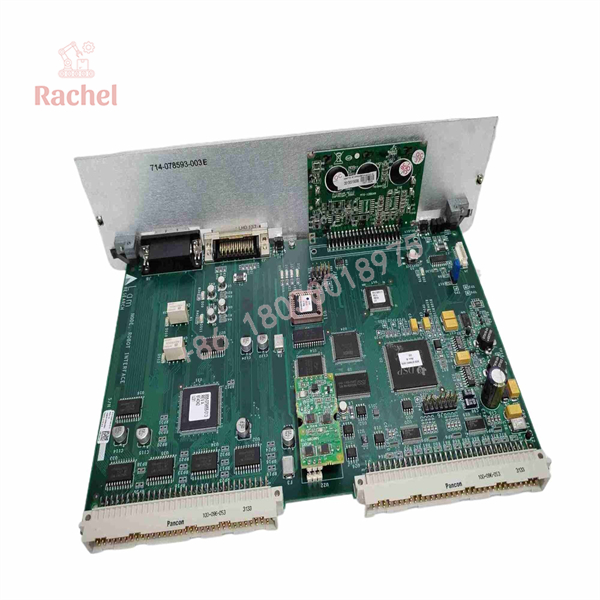

810-068158-015
Frequently Asked Questions (FAQ)
Q: Is the Lam Research 810-068158-015 hot-swappable?
A: No. Pulling or inserting this board while the sub-rack logic power is applied risks arcing the connector pins and damaging low-voltage onboard micro-logic. Always isolate power first.
Q: Can I replace a lower dash revision with this -015 card?
A: To be honest, only if specified in your tool’s OEM documentation. While the physical layout may look identical, component layout changes or trace routing revisions across dash numbers can trigger tool boot-up errors.
Q: Are these boards brand new or refurbished?
A: Due to the lifecycle stage of legacy Lam equipment, these boards are typically New Surplus (un-commissioned fab inventory) or fully refurbished and bench-certified units.
Q: What warranty is provided with this component?
A: All 810-068158-015 boards are covered by a 12-month full replacement warranty. If a board fails during normal operation within one year, we replace it or issue a full refund.
Q: Is onboard software calibration necessary after replacement?
A: Generally, no. This board functions primarily as a hardware communication and signal routing interface. System parameters and control logic are managed directly by the tool host software.
