Magnetek GPD506V-B004 GPD 506 AC Vector Drive 230V

Description

Product Introduction

The Magnetek GPD506V-B004 is a heavy-duty 230V AC vector drive engineered for high-precision motor control across industrial process lines. Manufactured under Magnetek’s collaboration with Yaskawa, this 1 HP (0.75 kW) drive delivers 4.0 Amps of continuous output power. It handles demanding low-speed torque requirements without dynamic slip, making it ideal for machinery that requires precise speed regulation under shifting load conditions.

Equipped with an onboard digital operator panel, multi-function programmable logic inputs, and internal dynamic braking transistors, the GPD506V-B004 interfaces smoothly into both standalone machine control panels and legacy PLC automation networks. When an aging GPD506 unit fails on an active line, finding a direct drop-in replacement avoids the high cost and downtime of mounting hardware alterations, control rewiring, and ladder logic reconfiguration.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

We once responded to a emergency service call at a custom printing and converting facility where a high-speed web tensioning drive dropped dead mid-run. The line threw an un-clearable hardware overcurrent alarm because an internal output transistor failed under heavy heat buildup. Every hour the press sat silent was burning over $5,000 in scheduled production time. Modern drives would have required changing out the cabinet layout and re-tuning the master tension PLC software over two days. Dropping in a bench-tested GPD506V-B004 restored the web line in under 45 minutes without modifying a single line of control code.

• Printing & Web Handling: Maintaining precise dynamic tension control across unwind and rewind reels.
• Packaging Machines: Driving index conveyors and metering feeds using programmable multi-step speed profiles.
• Machine Tool Spindles: Delivering high low-end torque for small precision milling and drilling axes.
• Pumps & Chemical Dosing: Running PID control directly on the drive for accurate flow rate regulation without PLC intervention.

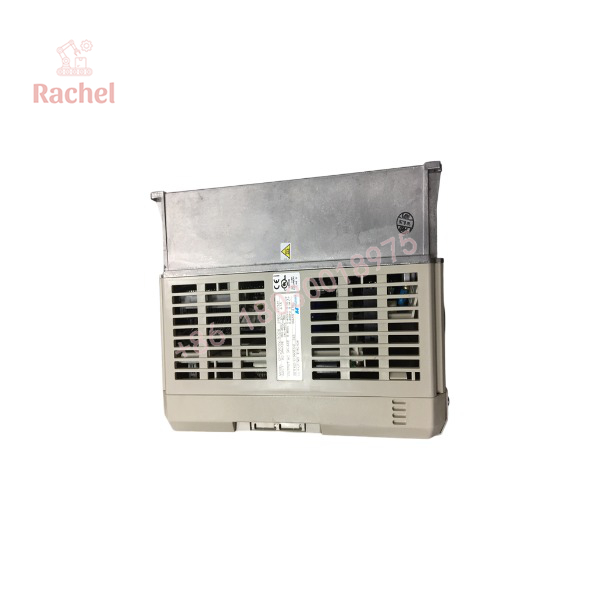

GPD506V-B004

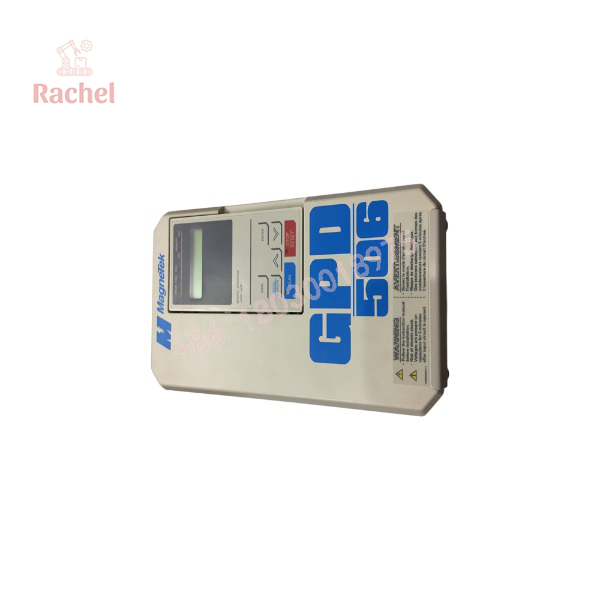

GPD506V-B004

Transparency SOP: Quality Assurance & Testing

We do not ship unverified industrial surplus. Every Magnetek GPD506V-B004 undergoes a mandatory 5-step engineering check before going into static-shielded storage:

1. Inbound Mechanical Audit: Inspect the cooling fan, terminal strip screws, internal capacitors, and housing plastics for heat stress, dust contamination, or physical cracks.
2. Cold Power Stage Checks: Test the 3-phase diode bridge rectifier and internal IGBT modules with an oscilloscope and multimeter to rule out short circuits.
3. Power-On Self-Test (POST): Apply 230VAC 3-phase input voltage to verify internal power rail health, digital operator screen response, and baseline logic parameter access.
4. Loaded Motor Test Run: Connect the drive to a test induction motor, running high-speed ramps, forward/reverse transitions, and 15-minute load runs while measuring phase current balance.
5. Clear & ESD Packaging: Reset parameters back to OEM factory defaults, clean external surfaces, record hardware serial tags, and wrap the unit in thick ESD protective shielding.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Phase Loss & DC Bus Undervoltage: If you power up a replacement GPD506V-B004 on a single-phase supply bench for testing, the drive will trip a PUV or PF fault. This unit expects a balanced 3-phase 200-230V input. Running single-phase without proper parameter adjustment or current derating will stress the input diodes and trigger nuisance faults.

❗ Copying Parameter Tables Before Swap-Out: If the display on your dead GPD506 drive still powers up, take five minutes to manually document or copy the parameter group constants (especially parameters n001 through n160). Yaskawa/Magnetek drives use specific motor code parameters for vector tuning. Skipping these means your replacement drive will trip on overcurrent (OC) or fail to develop full starting torque.

⚠️ Control Terminal Wiring (PNP vs NPN Logic): Pay close attention to the control circuit sinking/sourcing jumper (SINK/SOURCE configuration) on the main control terminal board. Wiring a 24V PLC output into a drive configured for sinking logic can fry the digital input optocouplers on the control board instantly.

Frequently Asked Questions (FAQ)

Q: Is the GPD506V-B004 drive identical to a Yaskawa G5 or V7 drive?

A: Magnetek GPD 506 drives were manufactured on Yaskawa’s core VFD hardware platform. While the parameter structure and internal hardware match Yaskawa specifications closely, always cross-reference exact part suffixes to ensure firmware terminal functions map identically.

Q: What does the “B004” suffix stand for in the part number?

A: The “B” indicates a 230V 3-phase input power stage design, and “004” indicates the rated output current capacity (4.0 Amps, corresponding to a standard 1 HP heavy-duty motor rating).

Q: Can I use this drive without an external braking resistor?

A: Yes, for standard acceleration and deceleration ramps. However, if your application involves high-inertia loads or rapid deceleration cycles, an external dynamic braking resistor must be connected to terminals B1 and B2 to prevent overvoltage (OV) trips.

Q: What is the main cause of failure for legacy GPD506 drives?

A: Thermal degradation of internal DC bus electrolytic capacitors and cooling fan lockups are the most common failure points in drives that have been operating continuously for 10+ years.

Q: What warranty coverage comes with this unit?

A: Every Magnetek GPD506V-B004 drive provided comes backed by a full 12-month operational replacement warranty from our component testing facility.
