MAN B&W 2101546-5 Engine Supervision Module

Description

Product Introduction

The MAN B&W 2101546-5 (also referenced as the M-Modul Supervision Module) is an essential processing component designed for MAN B&W electronically controlled diesel engine systems. Operating within the engine control cabinet architecture (such as MTP, MBT, MEG, and AP installations), this module acquires critical real-time operating parameters, performs fast signal conditioning, and handles telemetry handshakes between peripheral engine sensors and the main engine control unit.

Built specifically for high-vibration engine-room environments, the 2101546-5 features ruggedized solid-state circuitry that filters ambient electrical noise. It stands apart from general-purpose industrial PLC cards by running embedded, pre-configured MAN engine supervision routines. If your main engine remote control panel throws critical supervision bus alarms or fails signal validation on key pressure/temperature loops, replacing a degraded 2101546-5 module is often the immediate hardware resolution.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story

It is 03:30 AM in the middle of the Pacific Ocean. The Chief Engineer gets woken up by a high-priority bridge alarm: “ME Control System Supervision Bus Fail.” The main engine drops to slowdown mode automatically. Down in the Engine Control Room (ECR), the local operator panel shows communication loss on the supervision loop, and the LED status light on the MAN 2101546-5 card in cabinet ME-1 is flashing a hard red fault. Without valid engine supervision signals, the bridge cannot demand full ahead. The fix? Isolate power to the sub-rack, unclip the faulty board, re-verify jumper positions, snap in the spare 2101546-5 card, and restore power. Within 15 minutes, the communication handshake clears, and the engine steps back up to normal sea speed.

Application Scenarios

• 2-Stroke Marine Main Propulsion (ME / ME-C Series Engines): Functions as a local supervision node for parameters like scavenge air, exhaust valve positioning, and lube oil conditions.
• Auxiliary Engine Control Panels: Provides signal conditioning and supervisory monitoring on heavy fuel oil (HFO) auxiliary engines.
• Retrofit Engine Control Cabinets: Replaces aging Rev 1.0/1.1 boards in older MAN B&W control racks to eliminate intermittent bus noise faults.

Field Case Study

A 180,000 DWT bulk carrier experienced persistent “Supervision Bus Fault” trip warnings whenever main engine RPM exceeded 75% MCR. Inspection revealed thermal stress cracking around the power regulator circuit on the original 2101546-5 card. Installing a pre-tested surplus 2101546-5 card cleared the signal dropouts instantly, saving the operator thousands in off-hire penalties and port state inspection holds.

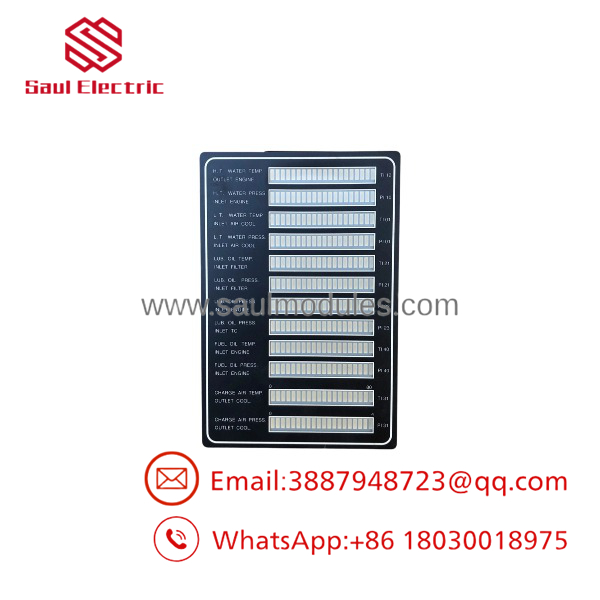

2101546-5

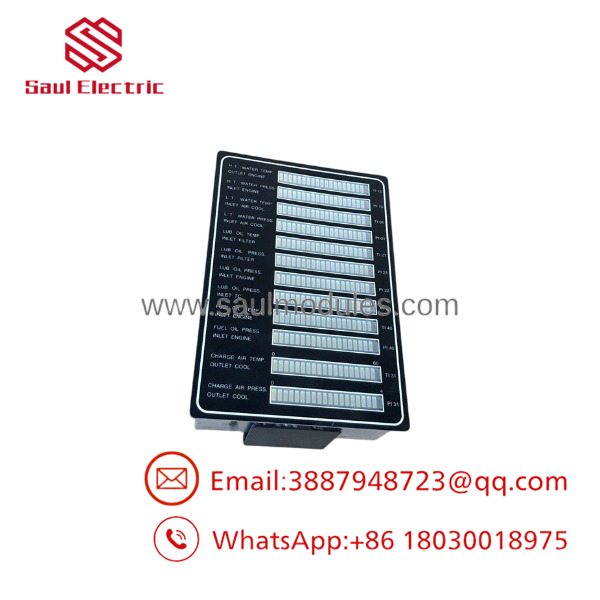

2101546-5

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual engine control test benches:

1. Inbound Visual & Counterfeit Verification: Inspection of OEM silkscreening, soldering mask integrity, component date codes, and board revision markings.
2. Thermal & Cold Solder Joint Check: Microscopic inspection of the backplane bus interface and input pin headers for thermal fatigue or oxidation from sea-air exposure.
3. Power-On Self-Test (POST): Applying 24V DC to verify onboard DC-DC converter output voltage rails and LED diagnostic boot sequencing.
4. Live Rig Loop Simulation: Inserting the card into a simulated MAN B&W control loop rack to test digital/analog I/O response and CAN bus communication handshakes.
5. Anti-Static Packaging: Sealed in anti-static ESD shielding bags with fresh desiccant packs prior to shipment.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Match Your Board Revision (Rev 1.2 vs. Earlier): Check the revision number printed on the PCB label. While Rev 1.2 is backward compatible in most MAN MTP/MBT racks, minor onboard jumper changes exist. Always match DIP switches/jumpers to the outgoing board.
• ❗ Never Pull Under Load: Power down the 24V DC supply breaker to the specific control rack section before removing this board. Hot-pulling can corrupt the supervisor EEPROM memory or cause transient voltage spikes across adjacent module buses.
• ⚠️ Grounding and Shielding Matter: Ensure the card’s retaining screws and rack ground straps are clean and tight. Poor earthing in the ECR cabinet causes ground loops, leading the 2101546-5 to report phantom sensor failures.
• ❗ Inspect the Terminal Socket First: Before seating the replacement, check the terminal block or rack connector pins for green copper corrosion or loose tension springs. A replacement card won’t fix a loose backplane pin.

Frequently Asked Questions (FAQ)

Q: Is the MAN 2101546-5 plug-and-play, or does it require parameter programming?

A: It is primarily hardware plug-and-play, provided hardware jumpers/DIP switch settings are copied from your original card. However, you should perform an I/O calibration check via the local operator panel after installation.

Q: What is the difference between MAN B&W, MAN Diesel & Turbo, and MAN Energy Solutions on these parts?

A: They are the same OEM lineage. Older cards carry “MAN B&W” or “MAN Diesel & Turbo” branding, whereas newer production runs fall under “MAN Energy Solutions.” The part number 2101546-5 remains identical.

Q: Why choose New Surplus / Reconditioned over buying direct from the OEM?

A: OEM marine engines often have long lead times for legacy electronics. Sourcing pre-tested surplus or reconditioned modules provides immediate off-the-shelf availability to meet tight vessel port calls.

Q: Can this card cause a main engine shutdown if it fails?

A: Depending on the engine control system configuration, a hard fault on the 2101546-5 module will trigger a system slowdown or transfer engine control to local manual backup mode to protect the propulsion system.

Q: What warranty is provided with this unit?

A: All supplied units come with a comprehensive 12-month replacement warranty, fully tested and ESD-packaged prior to dispatch.
