MAN 1142354-4 Main Engine Interface Controller Board

Description

Product Introduction

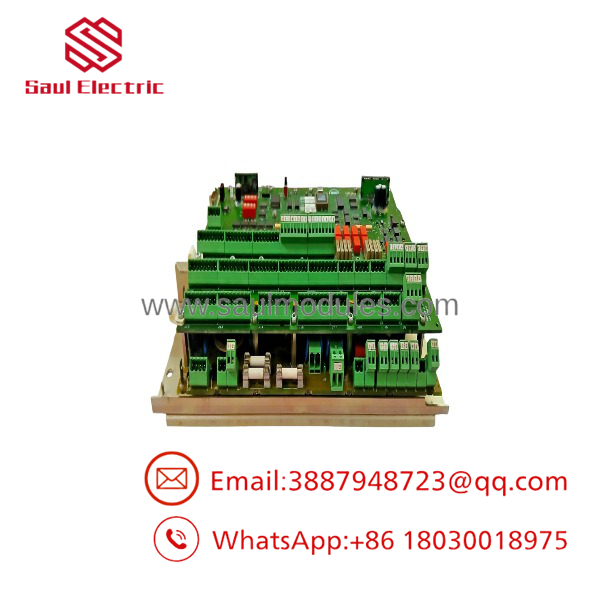

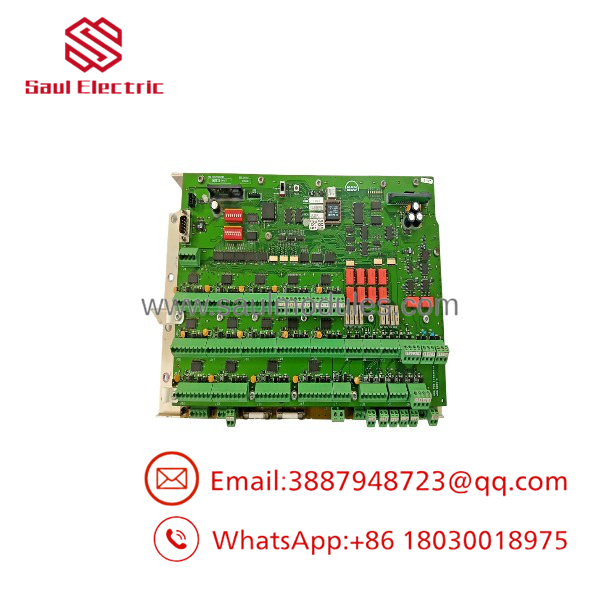

The MAN B&W 1142354-4 is an electronic control and interface PCB engineered specifically for MAN B&W marine diesel engines and heavy generator plants. Mounted inside local control panels (LCP) or main engine control cabinets, this board processes vital operational signals—including engine speed feedback, fuel rack positions, lubricating oil pressure limits, and bridge telegraph commands.

Built to comply with strict marine classification society standards (ABS, DNV, Lloyd’s Register), the 1142354-4 features heavy conformal coating to withstand salt spray, high engine room humidity, and severe diesel vibration. Swapping a failing board with this exact unit ensures immediate restoration of governor control and safety shutdown logic without expensive cabinet refits or engine-room wiring overhauls.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A 50,000 DWT bulk carrier was underway in heavy seas when the port main generator engine experienced erratic governor hunting followed by a sudden trip on “Speed Signal Loss.” The chief engineer identified thermal breakdown on an analog signal conditioning trace on the main control board (1142354-4). With the vessel approaching narrow harbor channels, regaining stable auxiliary power and engine speed governing was an absolute priority.

• Commercial Vessel Main Propulsion – Executing fuel injection timing, electronic governing, and safety trip logic on MAN two-stroke engines.
• Marine Auxiliary Generator Sets – Managing speed regulation and automatic load sharing across shipboard diesel generators.
• Offshore Rig Power Modules – Providing high-reliability engine monitoring under continuous high-load operations.
• Stationary Power Plants – Controlling heavy fuel oil (HFO) industrial power generation engines.

Field Case Study

During a scheduled drydock overhaul, a marine service engineer identified corroded terminal contacts and intermittent logic faults on an aging 1142354-4 board inside the engine control room (ECR) console. The vessel had an upcoming charter deadline. We dispatched a fully bench-tested, pre-inspected 1142354-4 module directly to the shipyard. The chief electrician transferred the wiring blocks, set the onboard configuration switches to match engine specs, and successfully completed sea trials that evening.

1142354-4

1142354-4

Transparency SOP: Quality Assurance & Testing

Marine electronics must not fail at sea. Every MAN B&W 1142354-4 board undergoes rigorous verification on specialized marine diagnostic test benches before dispatch.

1. Inbound Visual & Microscopic Audit: Inspecting PCB traces for salt mist corrosion, checking solder joints, auditing surface-mount components, and verifying conformal coating thickness.
2. Power Supply & Rail Regulation: Applying 24VDC auxiliary power across high and low voltage limits to test onboard DC-DC converters and voltage regulators.
3. Sensor Signal Simulation: Injecting simulated speed pickup pulses, temperature inputs, and pressure loops to verify analog-to-digital conversion accuracy.
4. Relay & Output Driver Stress Test: Driving synthetic loads across all relay output channels to confirm clean contact switching without voltage drops.
5. Marine ESD Packaging: Vacuum-sealing the verified board with anti-static ESD shielding and moisture absorber packs to prevent degradation during ocean freight.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Document DIP Switches and Potentiometer Settings: Before pulling the defective 1142354-4 board out of your ECR cabinet, take a high-resolution photo of all onboard DIP switches and multi-turn potentiometers. Replacement boards must be adjusted to match your specific engine model’s speed ranges and fuel limits.
• ❗ Inspect Power Supply Quality First: If the original board failed due to burned traces or shorted capacitors, check the output voltage ripple from your engine control cabinet’s 24VDC power supply. Excessive AC ripple or voltage surges from battery chargers will destroy the new board instantly.
• ⚠️ Never Touch Pluggable Terminals Under Power: Isolate the 24VDC power feed before disconnecting or reconnecting the green terminal blocks on this card. Arc-over across input sensing pins can fry onboard microprocessors.
• ❗ Verify Earth Ground Continuity: Marine control systems rely on clean shield grounding to eliminate high-frequency noise from heavy shipboard machinery. Ensure the board’s chassis mounting points land cleanly on an unpainted, uncorroded ground bus.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 1142354-4 board interchangeable across different MAN B&W engine models?

A: Hardware-wise, the core board is widely used across multiple MAN engine series. However, hardware jumpers, DIP switches, and potentiometer calibrations must be set specifically for your engine type (e.g., main propulsion vs. auxiliary gen-set).

Q: Can I replace this board while the engine is running?

A: No! Pulling a primary control board while the engine is running will trigger an immediate emergency trip, loss of governor control, or leave the engine completely unprotected against overspeed.

Q: Does this board come with the terminal connectors included?

A: Yes, our tested surplus and refurbished 1142354-4 units include verified pluggable screw terminal blocks for drop-in installation.

Q: How quickly can you ship this board for an urgent vessel in port?

A: We specialize in urgent marine supply. We provide same-day dispatch and express courier delivery directly to major port terminals worldwide to meet tight sailing schedules.

Q: What warranty coverage do you provide on marine electronic boards?

A: We back every MAN B&W 1142354-4 board—whether factory-sealed new surplus or bench-tested refurbished stock—with a complete 12-month functional replacement warranty.
