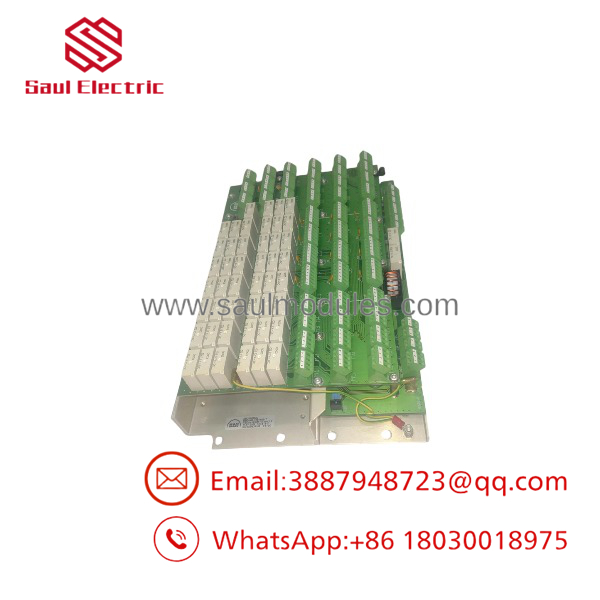

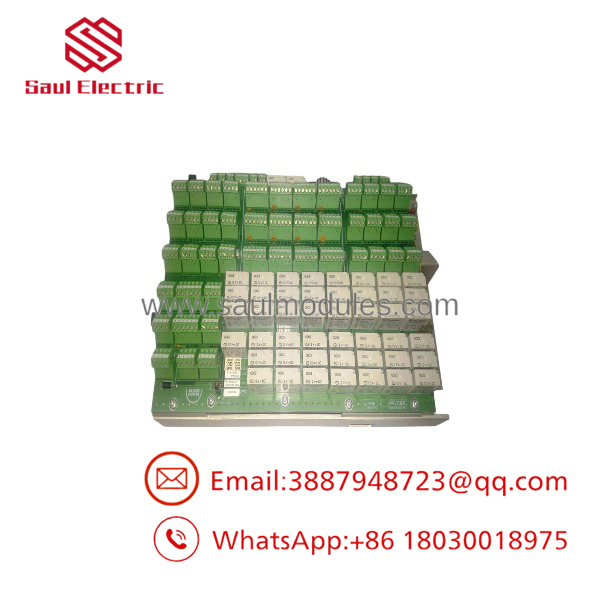

MAN B&W 3157168-7 Alpha Lubricator SBU Module

Description

Product Introduction

The MAN B&W 3157168-7 (commonly designated as the SBU or Switch Board Unit module) is a dedicated hardware processing card designed for MAN B&W two-stroke marine engines equipped with the Alpha Lubricator system. Installed inside the Alpha Lubricator Control Unit (ALCU) cabinet, this module drives the high-speed solenoid valves that inject cylinder lube oil directly into the engine liner during specific piston stroke windows.

Unlike general-purpose industrial relay cards, the 3157168-7 features specialized microsecond-level pulse modulation to handle precise mechanical oil injection. It interfaces directly with the Main Electronic Control Unit (MCU) and feedback sensors to monitor injection pressure and stroke timing. If your main engine local control panel triggers a “Cylinder Lubricator Feedback Fault” or “SBU Comm Failure,” replacing a failing 3157168-7 card is the primary hardware fix required to prevent liner scuffing.

Key Technical Specifications

3157168-7

3157168-7

Application Scenarios & The “Trench” Experience

The Trench Story

You are steaming through the Singapore Strait when the engine room console triggers a severe warning: “No. 4 Cylinder Alpha Lubricator Injection Fault.” The MCU immediately throttles engine load to protect the piston rings from dry running. Inspection of the ALCU cabinet reveals that channel 4 on the SBU card failed to deliver the required firing pulse to the injection solenoid, despite the MCU sending the command. Rather than taking the main engine offline for hours to troubleshoot board-level MOSFET components, the duty engineer isolates power to the ALCU rack, extracts the failing 3157168-7 card, matches jumper settings, and slides in a spare board. Within 12 minutes, the Alpha system re-synchronizes, cylinder feed clears, and the vessel resumes full sea speed.

Application Scenarios

• MAN B&W ME/ME-C Marine Propulsion Engines: Serves as the primary driver interface for electronic Alpha Lubricator injection pumps.
• Retrofit Alpha ACC Upgrades: Applied on older MC-C engines converted from mechanical lubricators to electronically controlled cylinder oil injection.
• Redundant ALCU Control Cabinets: Functions as the secondary or slave SBU module in dual-rack safety configurations.

Field Case Study

A 14,000 TEU container ship experienced intermittent “SBU Bus Fail” alarms during warm-weather tropical voyages. Thermal fatigue had caused micro-cracking around the power Darlington transistor pins on the 3157168-7 PCB. Installing a fully bench-tested surplus 3157168-7 module restored stable firing sequences, preventing excessive liner wear and saving tens of thousands of dollars in potential cylinder overhaul costs.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual engine control simulator racks:

1. Inbound Visual & Counterfeit Check: Inspection of OEM silkscreening, layer stack-up, solder mask integrity, and component revision stamps (e.g., REV 1.2 / 1.4).
2. Cold-Solder & Vibration Stress Inspection: Microscopic evaluation of the multi-pin backplane edge connectors and power output transistors for hairline cracks.
3. Power Rail Stability Test: Bench-testing with 24V DC input to verify onboard voltage regulator outputs and opto-isolator gate voltages.
4. Solenoid Load Simulation: Connecting the 3157168-7 to a test rig mimicking Alpha lubricator solenoid inductances to confirm crisp, high-frequency pulse switching under full load.
5. Anti-Static Packaging: Sealed inside high-grade ESD shielding bags with desiccants prior to shock-resistant shipping.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ De-energize the ALCU Rack Before Removal: Do NOT hot-swap this board! Pulling the 3157168-7 card with 24V power applied will cause inductive back-EMF spikes from the lubricator solenoids, which can instantly ruin the new card’s driver ICs.
• ❗ Verify Revision Jumper Configurations: Check the DIP switches and PCB jumper positions on your old board before installation. Revision updates (such as Rev 1.2 vs Rev 1.4) can alter default address configurations or sensor feedback polarities.
• ⚠️ Check Solenoid Resistance First: If a channel blew on your original SBU board, measure the resistance of the corresponding cylinder lubricator solenoid valve before installing the new card. A shorted solenoid coil (less than ~10-15 Ohms) will immediately destroy the output transistors on the replacement board.
• ❗ Inspect the Flyback Diodes: Always confirm that the external protection diodes across the solenoid wiring harness are intact. Missing flyback protection causes voltage spikes that lead to premature board failure.

Frequently Asked Questions (FAQ)

Q: What does “SBU” stand for on this MAN B&W module?

A: SBU stands for Switch Board Unit. It acts as the high-current interface board between the logic-level MCU and the heavy-duty solenoids of the Alpha Lubricator system.

Q: Are 3157168-7 boards with different document revisions interchangeable?

A: Generally yes, provided the sub-type (e.g., SBU-0240-C / 14.0240.0) matches. However, you must align the onboard configuration jumpers to match your specific engine’s cylinder count and sensor configuration.

Q: Can a faulty 3157168-7 board cause an automatic engine slowdown?

A: Yes. If the SBU board fails to execute lube oil injection or loses feedback signals, the Alpha MCU reports a critical cylinder lubrication failure, forcing the engine controller to drop RPM to prevent mechanical scuffing.

Q: Why source New Surplus marine automation cards instead of ordering from the OEM?

A: Lead times from the OEM for legacy 3157168-7 hardware can span weeks. Sourcing verified, pre-tested surplus stock allows immediate dispatch to your vessel’s next port of call, eliminating off-hire risks.

Q: What coverage comes with this module?

A: All supplied 3157168-7 modules undergo full rig testing and come backed by a comprehensive 12-month replacement warranty.
