MAN B&W 1881610-7 Marine Engine Controller Module

Description

Product Introduction

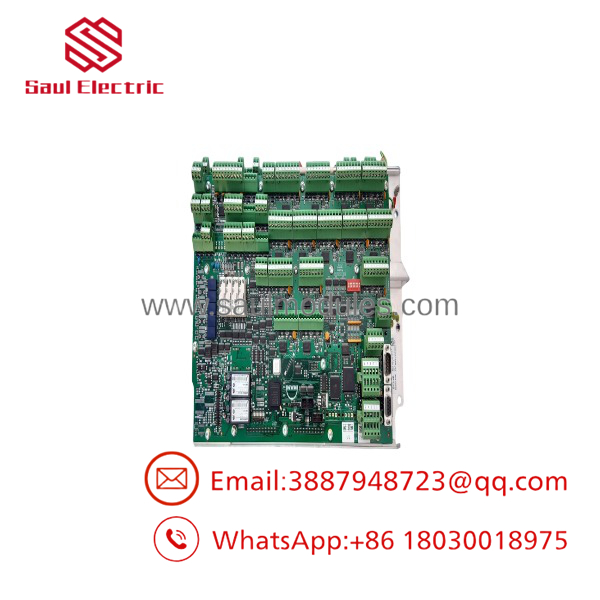

The MAN B&W 1881610-7 is an electronic interface and control card designed for MAN B&W marine diesel engines and large stationary power generation plants. Installed inside Local Control Panels (LCP), Engine Control Room (ECR) consoles, or main safety cabinets, this module serves as a critical bridge between bridge telegraph commands, engine pickups, and fuel injection actuators.

Built to withstand severe maritime environments, the 1881610-7 features a heavy marine-grade conformal coating that shields sensitive surface-mount components against salt air, high humidity, and engine room vibration. Replacing a degraded or damaged board with a drop-in 1881610-7 unit restores governor stability and emergency trip protection without requiring cabinet rewiring or software alterations.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A 180,000 DWT Capesize bulk carrier was navigating an international shipping lane when the main engine safety system threw a false “Speed Feedback Mismatch” alarm, causing the governor to hunt wildly between 60 and 85 RPM. The chief engineer traced the issue to thermal breakdown on an analog signal conditioning trace on the primary control card (1881610-7). To maintain safe maneuvering speeds into port, immediate board replacement was mandatory.

• Commercial Vessel Main Propulsion – Handling real-time fuel rack positioning, speed pickup signal processing, and electronic governor loops on two-stroke main engines.
• Marine Auxiliary Generator Plants – Managing speed regulation and load sharing across auxiliary diesel gen-sets.
• Offshore Support & Tug Vessels – Executing rapid engine speed response during dynamic positioning (DP) maneuvering.
• Industrial HFO Power Generation – Operating in heavy fuel oil stationary power stations as a central safety and speed interface node.

Field Case Study

During a port inspection, a container vessel’s main engine failed its mandatory remote stop test from the bridge console due to a stuck relay contact on an old 1881610-7 card. Facing a potential port-state detention, the vessel superintendent requested an urgent replacement module. We dispatched a fully bench-tested 1881610-7 board directly to the quay. The ship’s electrician transferred the green terminal connectors, matched the onboard DIP switch settings, and passed the classification society re-test in under two hours.

1881610-7

1881610-7

Transparency SOP: Quality Assurance & Testing

Marine automation electronics must deliver 100% reliability at sea. Every MAN B&W 1881610-7 module undergoes a systematic multi-step bench test before entering ready-to-ship inventory:

1. Physical & Optical Inspection: Microscopic audit of all PCB traces, solder pads, and edge connectors for thermal discoloration, salt mist corrosion, or component stress.
2. Power Rail Stability Check: Supplying 24VDC power across low (18V) and high (32V) thresholds to verify onboard DC-DC converter output voltage stability.
3. Sensor Pulse Simulation: Injecting simulated speed pickup signals and analog telemetry to confirm accurate signal conversion without drift or jitter.
4. Output Driver Burn-In: Testing output driver channels and relay contacts under full rated load to confirm zero-loss switching.
5. ESD & Marine Packaging: Cleaning terminal blocks and sealing the board in a heavy ESD moisture-barrier bag with fresh desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Photograph DIP Switches & Potentiometers: Before removing the old 1881610-7 module from your panel, take clear photos of all DIP switch positions and multi-turn potentiometer settings. Calibration values differ across engine models and governor types.
• ❗ Verify 24VDC Power Quality: If the original board suffered burnt traces or shorted capacitors, measure the AC ripple voltage coming from your cabinet’s 24V power supply. High ripple or faulty charger rectifiers can ruin the replacement module.
• ⚠️ Isolate Power Before Terminal Swap: Never unplug or re-seat the green screw terminal blocks while the 24VDC system is energized. Arcing across signal pins can destroy sensitive input logic ICs.
• ❗ Check Shield Grounding: Ensure signal cable shields ground strictly at one common earth bus in the panel. Floating or dual-grounded shields introduce high-frequency noise that causes speed reading fluctuations.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the MAN B&W 1881610-7 a direct drop-in replacement for earlier board revisions? A: Yes, the 1881610-7 shares identical backplate mounting footprints and terminal block pinouts with preceding sub-revisions in the 1881610 series.

Q: Does this module require software flashing after installation? A: In most hardware configurations, this module functions as an analog/digital interface board configured via onboard jumpers or DIP switches rather than software flashing.

Q: Are the green pluggable terminal blocks included with the board? A: Yes, our tested surplus and refurbished 1881610-7 units include verified terminal connectors for plug-and-play installation.

Q: How fast can this card be delivered to an active vessel in port? A: We offer same-day dispatch and worldwide express shipping direct to major port agent terminals to meet tight vessel departure schedules.

Q: What warranty is provided on this marine control module? A: Every MAN B&W 1881610-7 board—whether factory-sealed new surplus or bench-tested refurbished—includes a complete 12-month replacement warranty.
