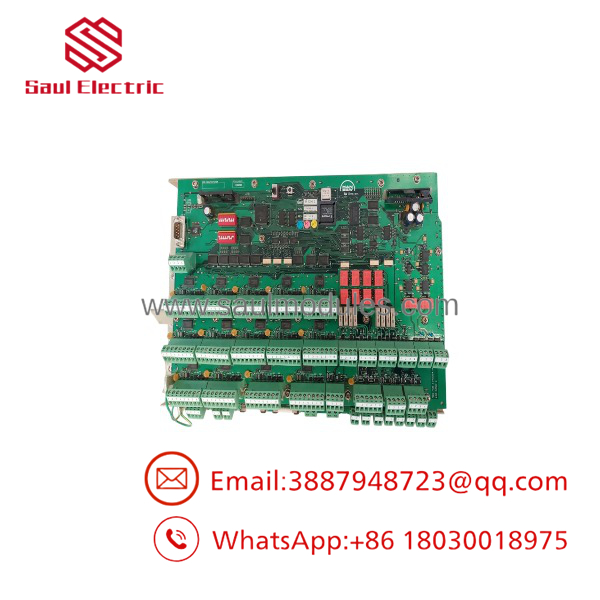

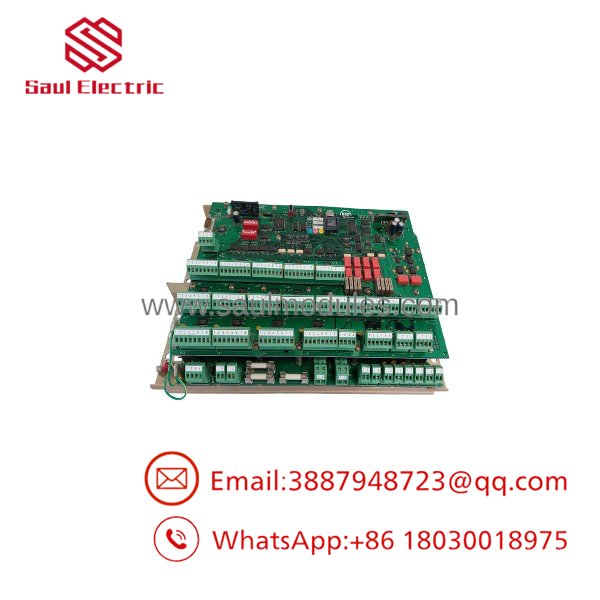

MAN B&W 73757985-01 Main Engine Controller Module

Description

Product Introduction

The MAN B&W 73757985-01 is a specialized electronic processing module engineered for MAN B&W marine propulsion and power generation engines. Deployed within the engine room control cabinets (such as SaCoS or CoCoS-based automation systems), this board acts as a central communication and signal processing node between remote control desks, local safety systems, and engine-mounted sensors.

Engineered to endure the intense vibration, electromagnetic interference, and elevated temperatures of shipboard machinery spaces, the 73757985-01 handles critical sensor monitoring and output command execution. Unlike off-the-shelf industrial PLCs, this board incorporates MAN’s proprietary engine safety logic directly into its architecture. Replacing a malfunctioning 73757985-01 board is the standard procedure when an engine cabinet displays persistent communication bus timeouts or phantom sensor trip alarms.

Key Technical Specifications

73757985-01

73757985-01

Application Scenarios & The “Trench” Experience

The Trench Story

It’s 01:45 AM during a tight pilotage transit through the English Channel. The duty engineer gets hit with a master engine control alarm: “Cabinet ECU Comm Failure.” The local operator panel loses telemetry from bank-A temperature and pressure loops, forcing the engine control software to drop into alarm backup mode. Down in the Engine Control Room (ECR), the status LED on the 73757985-01 module is blinking a hard system fault code. The root cause is thermal fatigue on the board’s internal power bus rail. Swapping out the faulted board with a pre-tested spare, re-aligning address DIP switches, and cycling 24V power restores the bus link in under 15 minutes, clearing the alarm before the vessel reaches the pilot station.

Application Scenarios

• MAN B&W Two-Stroke Main Propulsion Engines: Serves as a local I/O and communication processor node within the main engine control rack.
• Marine Four-Stroke Medium-Speed Generator Sets: Installed in local control panels (LCP) for auxiliary power generation units to manage engine safety interlocks.
• Engine Room Retrofits: Used as an exact-fit replacement card during control cabinet overhauls on older MAN diesel systems.

Field Case Study

A 5,000 TEU container ship suffered intermittent “Sensor Power Supply Failure” warnings on its auxiliary engine #2 control cabinet. Troubleshooting traced the issue to a failing voltage regulator on the original 73757985-01 card. Installing a fully tested surplus 73757985-01 module eliminated the voltage drops immediately, preventing an unplanned generator shutdown during port loading operations.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual engine control test racks:

1. Inbound & Anti-Counterfeit Inspection: Detailed check of original MAN PCB silkscreening, layer stack-up, solder mask integrity, and component date codes.
2. Thermal & Vibration Inspection: Microscopic inspection of high-density edge connectors and solder joints to detect hairline stress fractures caused by engine vibration.
3. Power Rail & Logic Validation: Applying 24V DC bench power to confirm onboard DC-DC converter stability and logic boot sequences.
4. Bus Communication Handshake Test: Inserting the card into a live test rack to verify CAN/RS-485 communication under maximum bus load without frame errors.
5. ESD Packaging & Moisture Protection: Sealed inside anti-static shielding bags with fresh desiccant packs before export-grade shipping.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Power Down Before Removal! Do NOT hot-swap this card. Always isolate the 24V DC supply breaker to the control cabinet section before pulling the board. Live pulling risks arcing the backplane pins and corrupting memory on adjacent modules.
• ❗ Match DIP Switches & Jumpers: Take a clear photo of the DIP switch bank and configuration jumpers on the outgoing card before you remove it. Address settings or bus termination resistors must be matched exactly on the replacement unit.
• ⚠️ Inspect Backplane Connectors: Before inserting the replacement 73757985-01, inspect the rack’s mating connector for bent pins, dust, or salt-air oxidation. Clean contacts with electrical contact cleaner if necessary.
• ❗ Verify Terminal Grounding: Ensure the rack grounding straps and module securing screws are tight. Poor earthing causes ground loops that lead to intermittent communication dropouts.

Frequently Asked Questions (FAQ)

Q: Is the MAN 73757985-01 board plug-and-play?

A: Physically yes, provided you copy all hardware jumper and DIP switch settings from your old board. Depending on your specific SaCoS/CoCoS system version, you may need to confirm node address recognition on the local display panel after powering up.

Q: Can this module be used across different MAN engine models?

A: Yes, the 73757985-01 module is utilized across multiple MAN B&W engine control architectures, provided the hardware revision level matches the rack requirement.

Q: Why buy New Surplus or Reconditioned stock instead of ordering direct from MAN?

A: Legacy board part numbers like 73757985-01 often carry long factory lead times or are listed as obsolete by the OEM. Sourcing verified surplus stock gets critical replacement parts to your vessel’s next port of call immediately.

Q: What causes this board to fail most frequently in the field?

A: Heat accumulation inside unventilated engine room cabinets, continuous low-frequency vibration, and 24V power supply voltage spikes are the primary causes of component failure on these boards.

Q: What warranty comes with this module?

A: Every 73757985-01 unit is fully bench-tested and backed by a 12-month replacement warranty.
