MAN B&W 685335-5 Electronic Control PCB Module

Description

Product Introduction

The MAN B&W 685335-5 is an electronic interface and control module engineered for MAN B&W two-stroke main propulsion engines and four-stroke marine generator sets. Installed within Local Control Panels (LCP), Engine Control Room (ECR) consoles, or primary engine safety racks, this module serves as a critical bridge between bridge telegraph orders, speed pickups, and fuel governor actuators.

Built to comply with strict maritime classification society standards (DNV, ABS, Lloyd’s Register), the 685335-5 features heavy conformal coating to shield sensitive surface-mount components against salt mist, engine room humidity, and severe diesel engine vibration. Replacing an aging or damaged board with a drop-in 685335-5 card restores RPM governing stability and emergency safety trip logic without needing cabinet panel alterations.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A 75,000 DWT container vessel was maneuvering into harbor when the main engine safety system threw a “Speed Pickup Mismatch” alarm, causing erratic fuel rack hunting. The chief engineer isolated the fault to thermal breakdown on an analog signal conditioning trace on the primary control card (685335-5). With vessel maneuvering restricted, swapping the card was an immediate operational priority.

• Commercial Vessel Main Propulsion – Handling real-time fuel rack positioning, speed pickup processing, and electronic governor loops.
• Marine Auxiliary Generator Plants – Regulating speed control and automatic load sharing across shipboard auxiliary diesels.
• Offshore Support Vessels (OSV) – Delivering low-latency engine response during dynamic positioning (DP) operations.
• Industrial HFO Power Generation – Operating in stationary heavy fuel oil power plants as a central safety and speed node.

Field Case Study

During a port-state control inspection, a vessel failed its mandatory remote stop test from the bridge console due to a stuck relay contact on an aging 685335-5 card inside the ECR cabinet. Facing potential vessel detention, the chief electrician requested a replacement unit. We dispatched a fully bench-tested 685335-5 module directly to the berth. The crew transferred the wiring blocks, set onboard configuration jumpers to match engine specs, and cleared classification society re-testing within two hours.

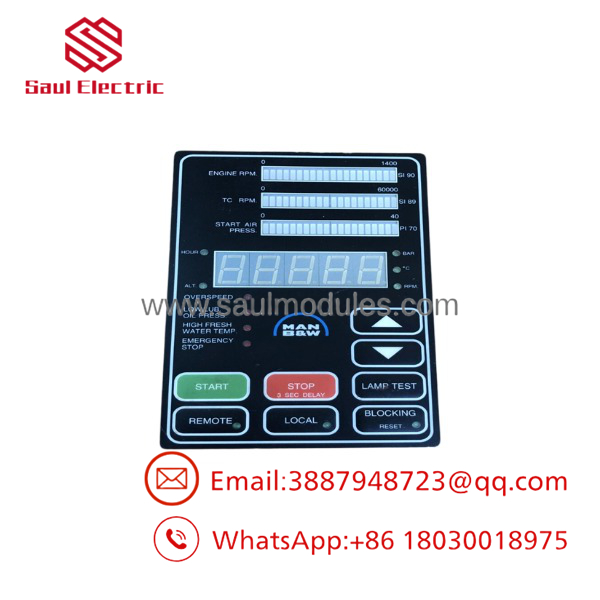

685335-5

Transparency SOP: Quality Assurance & Testing

Marine control electronics must deliver 100% reliability under continuous sea conditions. Every MAN B&W 685335-5 module undergoes a rigorous multi-step bench test before entering ready-to-ship inventory:

1. Microscopic Trace & Component Audit: Inspecting PCB traces, solder pads, and edge connectors under magnification for heat stress, salt mist corrosion, or component degradation.
2. Dual Power Rail Burn-In: Supplying 24VDC across minimum (18V) and maximum (32V) voltage limits to test onboard DC-DC converter and regulator stability.
3. Sensor Pulse & Analog Simulation: Injecting simulated magnetic pickup pulses and analog telemetry to confirm accurate signal conversion without drift.
4. Relay & Output Driver Stress Test: Driving synthetic loads across output channels and relay contacts to ensure zero-loss switching under load.
5. ESD Static Shield Packaging: Sealing the verified board inside heavy anti-static ESD moisture-barrier packaging with fresh desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Document Hardware Jumper & Switch Settings: Before removing the defective 685335-5 module from your panel, take a high-resolution photo of all onboard DIP switches and multi-turn potentiometers. Calibration settings vary between engine models and governor drive setups.
• ❗ Verify Cabinet 24V Power Quality: If the original board suffered shorted capacitors or burnt traces, measure the AC ripple voltage coming from your panel’s 24VDC supply. Excessive ripple from failing battery chargers can destroy the replacement module instantly.
• ⚠️ Isolate Power Before Connector Removal: Never pull or re-seat the pluggable green terminal blocks while the 24VDC system is energized. Arcing across input sensing pins can fry sensitive onboard microprocessors.
• ❗ Check Panel Earth Grounding: Ensure the card’s chassis ground points land cleanly on an unpainted, uncorroded ground bus to drain high-frequency EMI noise generated by engine sensors.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the MAN B&W 685335-5 board interchangeable across different MAN engine series?

A: Hardware-wise, the core board is widely used across multiple MAN engine series. However, hardware jumpers, DIP switches, and potentiometer calibrations must be aligned to match your specific engine model.

Q: Does this board require software re-flashing after installation?

A: No. In most hardware configurations, the 685335-5 functions as a hardware interface/conditioning module configured via onboard jumpers and switches rather than software flashing.

Q: Are the pluggable terminal blocks included with the replacement card?

A: Yes, our tested surplus and refurbished 685335-5 units come complete with verified pluggable screw terminal blocks for drop-in replacement.

Q: How fast can this card be shipped for an urgent vessel in port?

A: We specialize in urgent marine supply, offering same-day dispatch and express courier delivery directly to major port agent addresses worldwide.

Q: What warranty coverage is provided on this marine control module?

A: Every MAN B&W 685335-5 board—whether factory-sealed new surplus or bench-tested refurbished—includes a complete 12-month replacement warranty.
