Description
Product Introduction & Engineering Value
The MAN B&W 2101544-1 is identified as an OB Module, Revision 1.14, for MAN B&W marine automation equipment. It is a specialized spare rather than a general-purpose PLC module, so the exact equipment configuration and installed revision should be checked before substitution.
For vessel maintenance teams, the value is simple: having the correct board available can reduce troubleshooting time when an installed control-system module fails. Do not treat the part number alone as proof of interchangeability; verify the existing module’s revision, markings, connectors, and system documentation.
Technical Specifications
The publicly available records for this part are limited. The following distinction is important: confirmed identification data is separated from specifications that require verification against the installed system or OEM documentation.
- Manufacturer: MAN B&W
- Part Number: 2101544-1
- Module Type: OB Module
- Documented Revision: Rev. 1.14
- Controller Platform Listing: OB MODULE
- Equipment Domain: Marine automation
- Installation Context: MAN B&W control-system equipment
- Electrical Supply: Verify from vessel/system documentation
- I/O Configuration: Verify before replacement
- Communication Interface: Verify from the associated control-system documentation
- Firmware / Software Compatibility: Verify against the installed revision
- Connector / Pinout: Verify against the original module before installation
Current catalog and marketplace records identify the part number, module type, and revision, but do not provide enough reliable evidence to assign voltage, I/O count, communications protocol, dimensions, or current consumption. Those values should not be guessed for a marine control-system replacement.

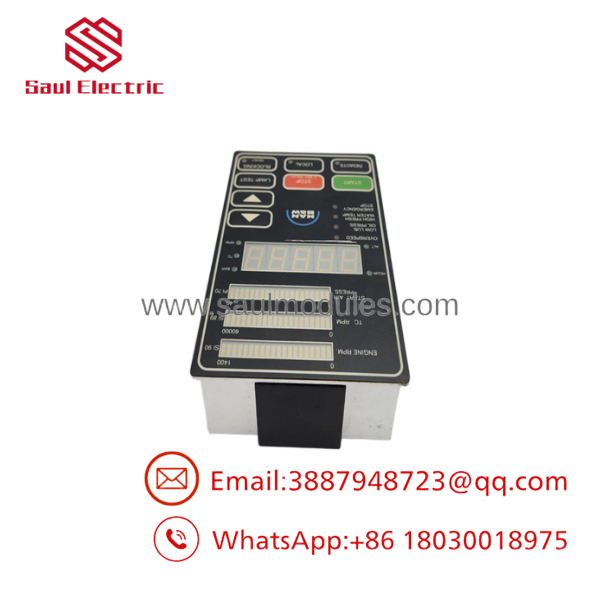

2101544-1 OB

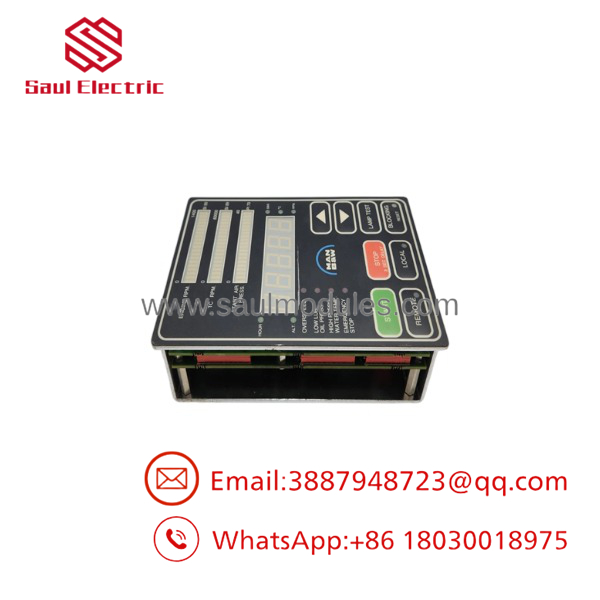

2101544-1 OB
Field Application & the “Trench” Experience
A realistic vessel-maintenance scenario looks like this: during troubleshooting of a legacy MAN B&W automation installation, a technician identifies a failed OB module and finds that the installed board is marked 2101544-1, Rev. 1.14. The spare cabinet contains a visually similar module, but its revision marking does not match. Instead of installing it immediately, the technician compares the complete part number, revision, connector arrangement, and system documentation.
That extra check matters. In marine automation, a board that physically fits is not automatically a valid replacement.
Niche application scenarios
- Main-engine automation panel replacement — replacement of a failed OB module during scheduled vessel maintenance.
- Engine-control cabinet spare holding — maintaining a dedicated 2101544-1 spare where an unexpected control-system failure could extend vessel downtime.
- Shipyard overhaul inventory — validating legacy MAN B&W automation boards before recommissioning an overhauled control cabinet.
The 2101544-1 also appears alongside other MAN B&W control modules, including the 2101546-5 MTP/MBT/MEG/AP module and 3157167-5.1 Master Control Unit, indicating that these parts are commonly cataloged within the same marine automation spare-parts ecosystem.
Transparency SOP: QA & Testing
For New Surplus or refurbished stock, a responsible inspection process should include:
- Part-number verification
Confirm the label reads MAN B&W 2101544-1. Record the complete revision marking, including Rev. 1.14 where applicable. - Physical inspection
Examine the PCB, connectors, terminals, mounting hardware, labels, and component area for corrosion, impact damage, contamination, or unauthorized repair. - Electrical inspection
Perform appropriate continuity, insulation, and power-rail checks without exceeding the module’s documented test conditions. - Functional verification
Where the correct MAN B&W test platform is available, verify operation against the applicable system documentation rather than relying solely on a visual inspection. - Traceability record
Photograph the identification label and record the tested revision and condition before shipment.
Important: A seller describing a unit as “new” or “surplus” is not, by itself, evidence that it is factory-new. Current marketplace records show both used units and surplus-sourced marine automation inventory for this part family, so procurement should request condition and test evidence before purchase.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Matching the number but ignoring the revision
A replacement marked 2101544-1 should not automatically be assumed equivalent if the revision differs from the installed unit. Rev. 1.14 is specifically documented for this part in current listings.
⚠️ Trap #2 — Assuming a visually identical board is interchangeable
Marine automation assemblies can contain boards with similar physical construction but different functions or system dependencies. Verify the complete identification and associated system documentation.
PRO TIP: Photograph the original module before removal. Capture the part number, revision, connector positions, wiring references, and any configuration markings. That record can be more useful than a generic product description when sourcing a replacement months later.
⚠️ Trap #3 — Treating “tested” as a complete system test
A basic bench power-up does not necessarily prove compatibility with the vessel’s installed control system. Ask exactly what was tested, under what conditions, and against which documentation.
Dynamic FAQ
Is MAN B&W 2101544-1 a PLC module?
It is identified in available records specifically as an OB Module, not as a standard Siemens, Rockwell, or other general-purpose PLC module. Its correct role should be determined from the associated MAN B&W system documentation.
What revision is associated with 2101544-1?
The part is currently documented in multiple listings as Rev. 1.14. Confirm the revision marking on the physical unit before ordering.
Can I replace another MAN B&W module with 2101544-1?
Not without verification. Part numbers such as 2101546-5 and 3157167-5.1 are separately identified as different MAN B&W modules, so they should not be treated as substitutes merely because they belong to the same automation environment.
Is a New Surplus 2101544-1 the same as a factory-new part?
Not necessarily. “New surplus” generally refers to unused inventory that may have entered the secondary market outside the original factory supply chain. Request photographs, label details, storage history when available, and test documentation.
What should I provide when requesting a replacement?
Provide the complete part number, revision, photographs of the identification label, photographs of connectors, and the vessel/control-system application. If available, include the equipment documentation or original spare-parts reference.
What warranty should I expect?
Warranty terms depend on the supplier and stock condition. Before purchasing, obtain the warranty period in writing and clarify whether it covers only DOA failure or includes functional failure after installation.
