MAN B&W FW 01 (FW 01.03.00) SaCoSone Control Module

Description

Product Introduction

The MAN B&W FW 01 (often labeled as FW 01.03.00 or part reference 11.98900-0073) is a central electronic I/O control module operating within the SaCoSone (Safety and Control System for One Engine) ecosystem. Mounted directly inside local engine control panels (LCP) or main engine control cabinets, the FW 01 module acts as a primary junction interface between field-mounted engine sensors and central display/governor processing units.

Featuring an extensive matrix of plugable green terminal blocks, the FW 01 processes analog sensor values (PT100/PT1000 temperature elements, 4–20mA pressure transmitters), digital alarm interlocks, and speed feedback signals. It communicates over redundant CAN bus lines to feed real-time engine telemetry directly into the vessel’s Engine Control Room (ECR) SCADA or alarm monitoring system (AMS).

Key Technical Specifications

Application Scenarios & The “Trench” Experience

While navigating a narrow passage, an offshore vessel equipped with MAN four-stroke propulsion engines suffered a sudden “SaCoSone System Bus Failure.” Secondary alarm channels on Engine #2 went completely dark, preventing the chief engineer from verifying exhaust gas temperatures and lube oil pressure. The culprit was a voltage regulator breakdown on the FW 01 module’s power input rail, causing a bus lockup. Dropping in a replacement FW 01 card restored field signal acquisition instantly without needing to modify the main SaCoSone parameters.

• MAN Four-Stroke Marine Gensets & Main Engines – Processing high-density temperature and pressure sensor data across L21/31, L23/30H, and L28/32H engine ranges.
• SaCoSone Local Control Panels (LCP) – Serving as the primary field I/O collecting point mounted on the engine skid.
• Offshore Platform Emergency Power Units – Monitoring critical safety trips, overspeed loops, and automated shutdown logic.

Field Case Study

A chemical tanker’s main engine control panel experienced severe vibration damage on an aging FW 01 board, cracking the CAN bus communication socket and causing intermittent lost-node faults. Facing port-state inspection delays, the ship’s electrician ordered a pre-tested replacement FW 01 module. The terminal strips were transferred directly without re-wiring individual leads, node ID switches were aligned, and the SaCoSone system cleared all CAN bus communication errors on the first boot cycle.

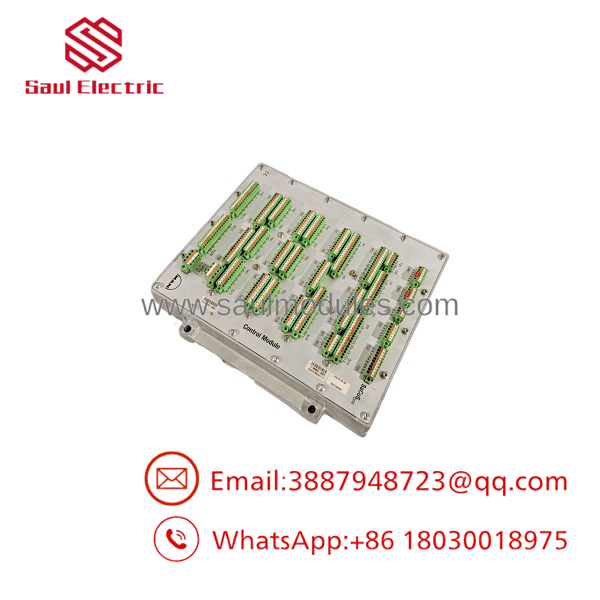

FW 01

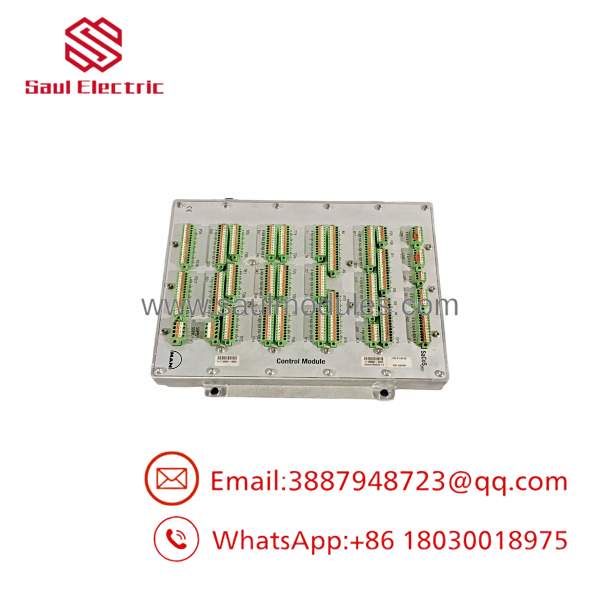

FW 01

Transparency SOP: Quality Assurance & Testing

SaCoSone modules must perform flawlessly under harsh engine room conditions. Every MAN FW 01 board undergoes a rigorous 5-step bench validation:

1. Microscopic & PCB Trace Audit: Inspecting solder pads, cage-clamp spring contacts, and onboard DC-DC power components for thermal fatigue or salt-air oxidation.
2. Dual-Power Supply Burn-In: Supplying 24VDC across Primary and Secondary supply terminals to verify automatic seamless failover between power channels.
3. CAN Bus Protocol Test: Connecting the board to a SaCoSone diagnostic bench simulator to verify clean packet transmission across CAN1, CAN2, and CAN3.
4. I/O Signal Simulation: Injecting precision resistance (PT100) and milliamp loops across all AI/DI channels to ensure analog-to-digital converter linearity.
5. ESD Static Shield Packaging: Sealing the verified board inside heavy anti-static ESD moisture-barrier packaging with fresh desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify Firmware/Hardware Revision Match: While “FW 01” designates the hardware base, ensure your sub-revision code (e.g., FW 01.03.00) matches the existing unit. Differences in revision can affect CAN bus register mapping on certain SaCoSone software versions.
• ❗ Never Disconnect Terminals Under Live Power: Always isolate both 24VDC power feeds before pulling the green spring-terminal strips. Pulling connectors live can induce inductive spikes that fry adjacent analog input channels.
• ⚠️ Check CAN Bus Termination Jumpers: The FW 01 board includes hardware termination settings for CAN bus channels. If replacing a end-of-line node module, verify that the CAN bus terminating resistor is switched ON; otherwise, bus reflection errors will compromise transmission.
• ❗ Maintain Shield Continuity: Ensure the main aluminum backplate of the FW 01 board is securely bolted to a clean, unpainted metallic earth point in the LCP to drain high-frequency noise generated by engine-mounted sensors.

Frequently Asked Questions (FAQ for Conversion)

Q: What does “FW” stand for in MAN SaCoSone terminology?

A: “FW” designates a Field Wiring or Field Module in the SaCoSone network topology, serving as the physical termination and signal conversion point for engine sensors.

Q: Can I swap an FW 01 card without re-programming software?

A: Yes. In the majority of SaCoSone installations, the FW 01 card functions as an I/O hardware device. As long as hardware jumpers, node address switches, and firmware sub-revisions match, the central SaCoSone controller will recognize it automatically upon power-up.

Q: Are the green pluggable terminal connectors included with the module?

A: Yes, our tested surplus and refurbished FW 01 units come complete with verified pluggable terminal blocks for fast drop-in installation.

Q: What is the typical lead time for urgent marine vessel deliveries?

A: We offer same-day dispatch and express worldwide shipping directly to port agent addresses to meet tight vessel sailing windows.

Q: What warranty coverage is offered on this SaCoSone module?

A: Every MAN B&W FW 01 module—whether factory-sealed surplus or bench-tested refurbished stock—is backed by a complete 12-month functional replacement warranty.
