Metso D201832 | Rack Power Supply Module

Description

Core Product Summary

The Metso D201832 is an IPSP rack power supply module used in Metso Automation (Valmet) MasterPiece 2001 distributed control systems. It is the unit that converts the incoming DC supply into the internal rail voltages the DCS rack needs: listings for the module specify 24 V DC and 5.3 V DC outputs, with the 5.3 V rail rated at 8 A, and identify the unit as a DC-to-DC power converter accepting an input range of 21–32 V DC.

The module is also referenced under the combined designation DDC8330-D201832, and an L-suffixed variant (D201832L) circulates in the spare-parts market — it appears both as a standalone supply and as the power module paired with ACN controllers such as the D202275 on a D202214 base. Because the power supply feeds the entire rack, a failed D201832 takes down every board it serves, which makes it a common critical-inventory spare. Before ordering, confirm the exact variant marking (base D201832 vs. D201832L) on the original unit’s label, as the two are listed separately in the spare market.

Key Technical Specifications

Engineering Selection Highlights

• Rack-level criticality: The IPSP module powers the MasterPiece 2001 rack’s internal rails; its failure disables every controller and I/O board in the rack, so it is typically held as a critical-inventory spare rather than replaced reactively.
• Dual output rails, 24 V and 5.3 V: The 5.3 V rail at 8 A serves the rack’s logic-level power needs while the 24 V rail supports I/O-level circuitry; replacement must reproduce both rails, since a unit with only one output cannot substitute.
• DC-to-DC conversion with 21–32 V input: The module derives its outputs from a battery or DC bus rather than directly from AC mains, which is the topology used in MasterPiece racks for supply continuity — verify the cabinet’s DC source is within the stated input range.
• Variant marking check: The D201832L variant is listed separately from the base D201832 across the spare market, and the L unit appears in documented pairings with the D202275 ACN controller. Match the suffix on the original unit’s label before ordering.
• Combined part designation: Units are labeled under the combined reference DDC8330-D201832 (and DDC8330-D201832L), so a parts list may cite either form; treat both as the same module family and match the full marking.

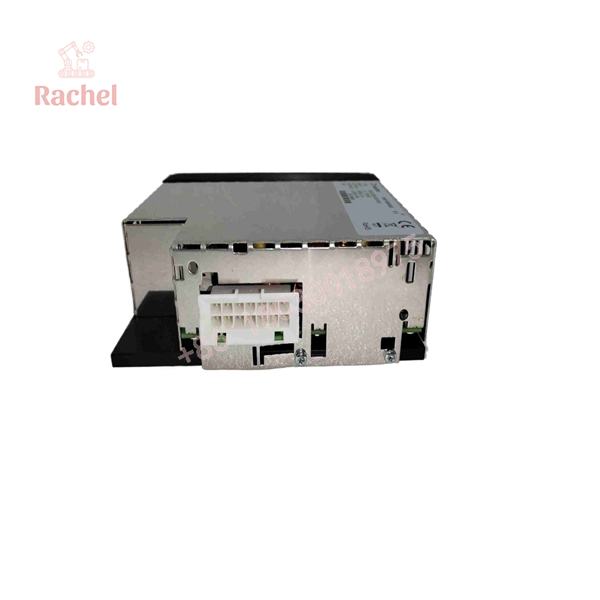

D201832

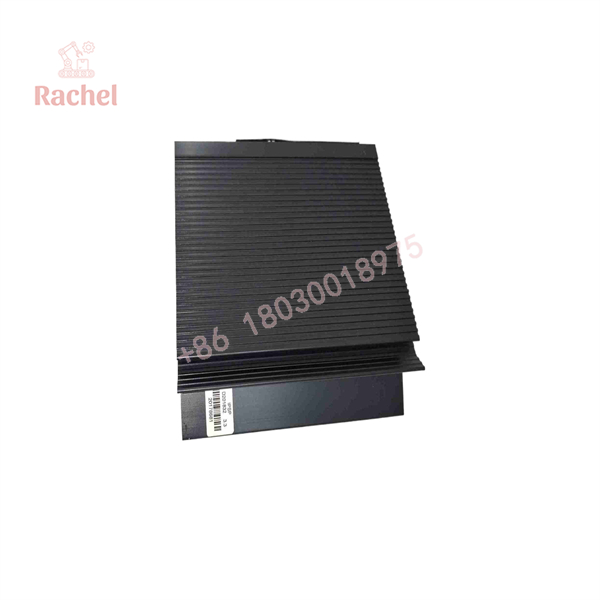

D201832

System Compatibility & Integration Requirements

Detailed Product Overview

The D201832 is the power supply module of the Metso MasterPiece 2001 DCS, and its engineering identity is defined by the conversion task it performs. The module is a DC-to-DC converter: it accepts a DC input in the 21–32 V range — typically from the cabinet’s DC distribution or battery-backed supply — and produces the rack’s internal operating rails, documented in listings as 24 V DC and 5.3 V DC, with the 5.3 V rail carrying an 8 A rating. This topology is characteristic of DCS racks designed for supply continuity, where the DC bus, rather than raw AC mains, is the primary energy source.

Its criticality comes from topology too. Unlike an I/O board, whose loss affects only its own channels, a power supply module failure removes power from the whole rack — controller, communication boards, and I/O together. For maintenance planning on legacy MasterPiece installations, this makes the IPSP module a natural first-priority spare: it is one part, it has no redundancy at board level in most cabinets, and its failure mode is the most severe in the rack.

Procurement for this part needs two specific checks. First, the variant suffix: the base D201832 and the D201832L are listed as separate items across the spare market, and documented assemblies pair the L variant with the D202275 ACN controller on a D202214 base. The suffix on the original unit’s label should govern the order. Second, the combined designation: units carry the reference DDC8330-D201832 (or -D201832L), so a site parts list may cite the supply under either the short Metso number or the full combined marking — both refer to the same module family, and the full label marking is the safest match key.

Finally, the electrical fit should be verified against the cabinet rather than assumed: the input source must lie within the 21–32 V DC window, and the replacement must provide both output rails at the documented ratings, since the rack’s boards draw on both. As with all legacy-platform spares, the authoritative identification is the original unit’s own label, read in place and matched exactly.

Applications & System Role

In a MasterPiece 2001 DCS architecture, the D201832 occupies the power backplane role: it takes the cabinet’s DC input and generates the regulated internal voltages that the rack’s controller and I/O boards run on. It is not a field-power interface but a system-power module — everything in the rack depends on it.

Typical fit scenarios follow from that position. Plants operating MasterPiece 2001 systems stock the IPSP module as the spare that restores an entire dead rack after a supply failure, and maintenance programs for these systems commonly treat the power module as the highest-priority spare in the cabinet, since a single unit outage affects all boards at once. The module also appears in ACN controller assemblies, where the D201832L supplies the controller mounted on its base — relevant when the spare is destined for a controller rebuild rather than a rack slot.

FAQ

What is the Metso D201832?
It is an IPSP rack power supply module for Metso/Valmet MasterPiece 2001 DCS systems, converting 21–32 V DC input into the rack’s internal 24 V and 5.3 V DC power rails.

What outputs does it provide?
Listings document a 24 V DC output and a 5.3 V DC output rated at 8 A, delivered as a DC-to-DC conversion from a 21–32 V DC input.

What does IPSP mean in this context?
The module is identified in the market under the IPSP designation as the rack’s integrated power supply; it may also appear labeled as DDC8330-D201832.

Is there an L variant of this module?
Yes, the D201832L is listed separately from the base D201832 and appears in documented assemblies paired with the D202275 ACN controller on a D202214 base. Match the suffix on the original unit’s label.

Why is this module held as a critical spare?
It powers the entire rack: if it fails, every controller and I/O board in the rack loses power, so sites running these systems typically stock it as a first-priority spare.

What should I verify before ordering?
The exact variant marking on the original unit’s label (base or L suffix, and the combined DDC8330 designation), plus the cabinet’s DC input range within the 21–32 V window.
