Metso A413125 AIU-8 Analog Input Module

Description

Product Introduction & Engineering Value

When a legacy DCS cabinet has one failed analog-input channel, the problem is rarely just the module itself. The field loop, transmitter, wiring, termination, and input configuration all have to be considered. The Metso A413125 AIU-8 provides eight analog input channels within the older Metso/Valmet automation architecture, making it a practical spare for maintaining existing I/O capacity.

The available documentation is largely aftermarket rather than current OEM technical literature. That matters. Several sellers agree on the AIU-8 designation and eight-input configuration, but detailed electrical characteristics such as individual input ranges and accuracy should be confirmed against the installed system documentation before engineering a substitution.

Technical Specifications

The 24 VDC / 30 mA figures above are specifically reported by Radwell for A413125. WiAutomation independently identifies the product as an analog AIU-8 DCS input PCB.

Engineering caution: I would not publish unsupported claims that A413125 universally accepts 4–20 mA, 0–10 V, thermocouple, or other specific signal types. Some aftermarket descriptions make broader claims, but the available evidence does not establish those ranges as an OEM specification for every A413125 revision.

Field Application & the “Trench” Experience

A realistic maintenance case is an older process-control cabinet in which one transmitter loop has stopped appearing correctly at the operator station. The technician verifies the transmitter output first, then checks field wiring and the termination path. If those remain good, the A413125 becomes a logical suspect because it is the eight-channel analog input interface between field instrumentation and the DCS.

The replacement should not be treated as a generic eight-channel AI card. Before installation, the technician should compare the part number, board markings, revision information, connector arrangement, and DCS configuration with the existing module. This is particularly important for discontinued Metso/Valmet hardware.

Specific application scenarios

• Pulp-and-paper process loops — acquiring continuous analog measurements from process instrumentation in legacy Valmet control systems.
• Chemical process measurement — interfacing transmitter signals used for pressure, flow, temperature, or level control where the installed AIU configuration supports the relevant signal.
• Minerals and process automation — maintaining legacy DCS I/O where replacement of the complete control platform is not part of the current shutdown plan.
• Plant spare-parts strategy — holding an A413125 as a direct hardware spare for an installed AIU-8 position.

An older electrical-repair catalog also lists METSO AUTOMATION A413125 as an “AIU-8 MODULE,” providing an independent historical reference for the model’s function.

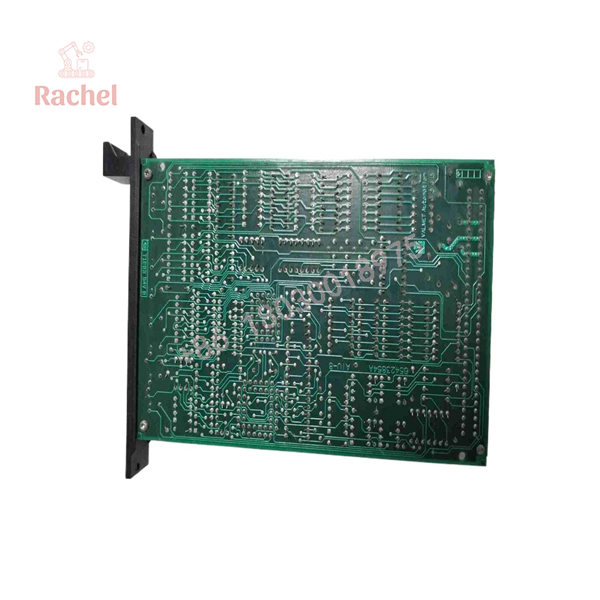

A413125

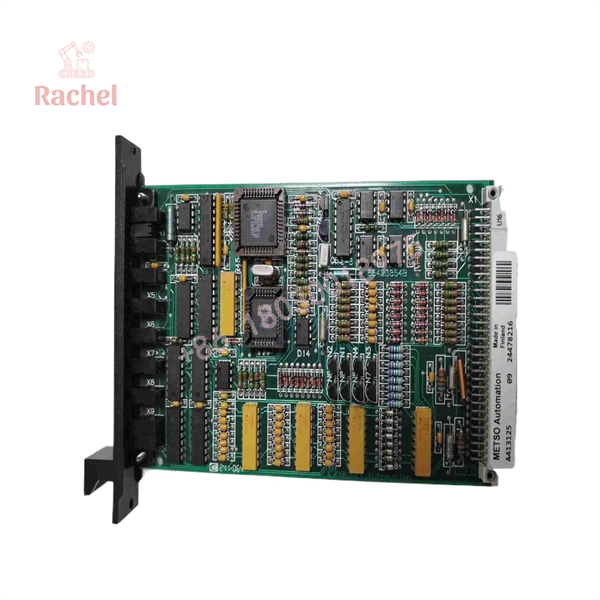

A413125

Transparency SOP: QA & Testing

For New Surplus or refurbished A413125 stock, the inspection should concentrate on identification and analog-input functionality.

1. Part-number check — confirm the PCB/module marking reads .
2. AIU identification — verify the board corresponds to the AIU-8 configuration.
3. Physical inspection — inspect connectors, PCB traces, components, solder joints, and mounting hardware.
4. Power inspection — check the 24 VDC supply requirement identified in the available product documentation.
5. Channel test — where a compatible Metso/Valmet test environment is available, apply known input signals and verify all eight channels.
6. DCS integration test — confirm that the host system recognizes the module and displays the expected channel values.
7. Documentation — record the exact revision, serial/identification information, test method, and condition before shipment.

Because Radwell currently identifies A413125 as discontinued by the manufacturer, verification of surplus and refurbished units is particularly important.

The Veteran’s Tech Trap Guide

⚠️ Eight channels does not mean eight universally configurable inputs.
Do not assume that every A413125 can accept every analog signal type simply because a seller describes it as an “analog input module.” Confirm the actual input configuration from the customer’s system documentation before connecting a field transmitter.

⚠️ Watch the exact board identification.
A413125 appears in the market alongside numerous other A413xxx Metso/Valmet boards. Similar-looking PCB assemblies can have completely different I/O functions. Match the complete part number and board markings rather than relying on physical appearance.

PRO TIP: Photograph the existing module before removal. Capture the A413125 label, revision information, connector side, and any secondary identification such as “AIU-8.” This is much more useful to a supplier than sending only the base model number.

⚠️ Do not accept unsupported specifications as engineering data.
One current aftermarket listing describes A413125 as a four-channel analog output module, which conflicts with multiple independent references identifying it as an eight-channel analog input module.
For procurement and technical documentation, the AIU-8 / 8 analog input identification is the better-supported description, while detailed electrical parameters should be verified separately.

Dynamic FAQ

1. What is the Metso A413125?

The A413125 is a Metso Automation/Valmet AIU-8 analog input module. Available industrial references identify it as an eight-channel analog input unit used in legacy DCS applications.

2. How many analog inputs does A413125 have?

The commonly documented configuration is 8 analog inputs. Radwell and several independent automation-part suppliers identify the A413125 as an AIU-8 module.

3. What power supply does A413125 use?

Radwell’s technical listing specifies 24 VDC and 30 mA for the A413125. These values should be checked against the installed system documentation before commissioning a replacement.

4. Is A413125 still manufactured?

Radwell currently lists the A413125 as discontinued by the manufacturer. Consequently, replacement sourcing may involve new surplus, never-used stock, or refurbished units.

5. Is A413125 a PLC CPU?

No. The better-supported identification is an AIU-8 analog input module, not a processor/CPU. Some low-quality aftermarket pages incorrectly describe the part as a processor module, so that claim should not be used for engineering documentation.

6. Can a New Surplus A413125 be used as a replacement?

It can be considered when the part number, revision, hardware configuration, and host DCS configuration match the installed module. For a discontinued I/O assembly, functional testing of all eight channels is preferable to a simple visual inspection.

7. What should I request before buying an A413125?

Request clear photographs of the front label and PCB, exact revision, condition, serial/identification information, available test report, and warranty terms. For refurbished stock, also ask whether all eight analog-input channels were tested.

8. What warranty should I expect?

Warranty depends on the supplier and condition. For example, Radwell states that its own warranty applies to its supplied product, while WiAutomation states that its new and refurbished products carry a 12-month WiAutomation warranty. Neither should be interpreted as an OEM Metso/Valmet factory warranty.
