Core Product Summary
The Metso FGV2001 is a specialized pneumatic fabric guide valve engineered for paper machines, pulp processing lines, and textile web handling systems. It regulates the air pressure applied to internal bellows systems, ensuring precise, continuous tracking and alignment of wet-end and dry-end conveyor fabrics, wires, and felts.
Constructed with durable stainless steel, the unit features a 1/2-inch nominal bore and a mechanical lever-and-paddle feedback mechanism that tracks fabric position dynamically. It manages pneumatic output shifts to correct lateral drift, mitigating web wrinkles, edge damage, or process interruptions during continuous high-speed production.
Key Technical Specifications
| Specification | Parameter Value |
| Product Type | Felt / Fabric Guide Valve |
| Brand / Series | Metso Automation / Fabric Guide Valve Series |
| Part / Model Number | FGV2001 |
| Construction Material | Stainless Steel |
| Nominal Bore Size | 1/2 inch |
| Operating Principle | Pneumatic fabric-position control (bellows pressure regulation) |
| Primary Application | Wet-end and dry-end paper machine wire and felt guiding |
| Approximate Weight | 2.59 kg (5.70 lbs) |
Detailed Product Overview
The Metso FGV2001 functions as a critical fluid-power control interface within industrial papermaking machinery. Maintaining proper alignment of multi-ton felts and fine synthetic forming wires prevents catastrophic tearing and uneven wear.
The device operates via a mechanical sensing arm that rides against the edge of the moving fabric. Any lateral deviation physically shifts internal spool or nozzle components, modulating pneumatic pressure lines connected to the guide roll bellows. This closed-loop mechanical-pneumatic feedback instantly steers the roll to re-center the fabric. Its robust stainless steel housing resists moisture, chemical washdowns, and aggressive process environments commonly encountered in pulp and paper mills.

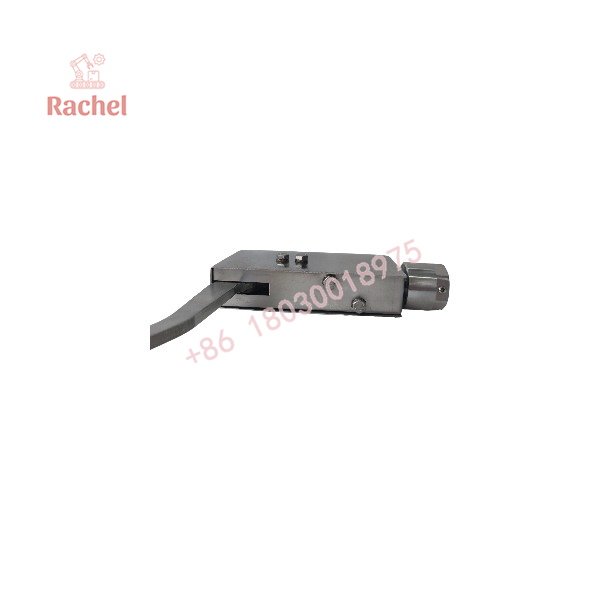

FGV2001

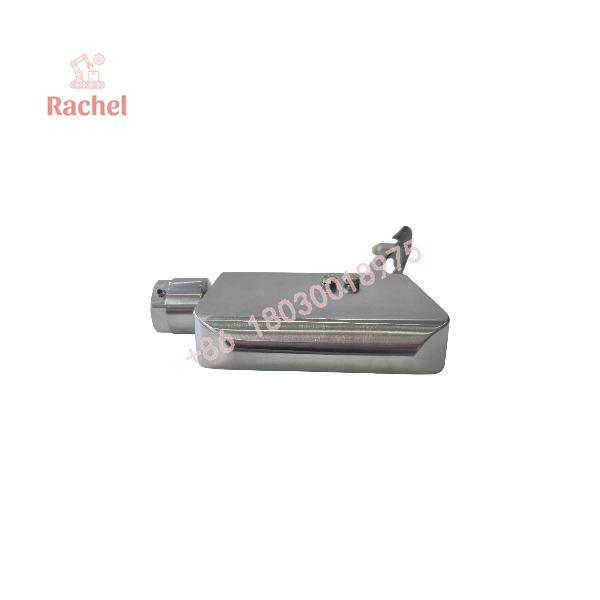

FGV2001
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Host Application | Paper-machine wire and felt guiding systems | Requires dedicated mechanical mounting brackets adjacent to the guide roll. |
| Pneumatic Supply | Filtered, regulated instrument air supply | Air lines must be free of moisture and particulate contamination to prevent internal port clogging. |
| Tubing Connection | Standard industrial pneumatic fittings | Match connection sizes to the valve’s port specifications; secure with recommended torque. |
| Integration Framework | Metso pneumatic guiding assemblies | Verify local linkage geometry and lever arm configuration before replacement. |
Dimensions, Mounting & Connection Notes
- Weight: Approximately 2.59 kg (5.70 lbs).
- Mounting Method: Bolted chassis or rail bracket mounting directly onto the fabric guide assembly frame.
- Pneumatic Port Guidelines: Ensure all supply and control lines are clearly labeled before disconnection. Use clean-cut tubing and avoid sharp bends or mechanical tension on fittings.
- Maintenance Caution: Isolate pneumatic pressure and lock out machine drive systems prior to servicing mechanical linkages or swapping the valve.
FAQ
- What is the Metso FGV2001?
It is a pneumatic fabric guide valve designed to control air pressure in wire and felt guiding systems on paper-making machines.
- What material is used to construct the FGV2001?
The unit utilizes a rugged stainless steel construction built to endure corrosive mill environments.
- What size is the internal bore?
It features a 1/2-inch nominal bore size.
- How does the valve control fabric position?
It uses a mechanical sensing arm linked to internal pneumatic controls that automatically adjust pressure to guide rolls, keeping the fabric centered.
- Is the FGV2001 active in current OEM production?
No, this specific model is discontinued by the manufacturer, meaning replacements typically rely on surplus or specialized industrial suppliers.
Documented Performance Data
| Metric | Value / Range | Operating / Test Condition |
| Bore Dimension | 1/2 inch | Standard internal flow path |
| Media Response | Pneumatic pressure modulation | Continuous web-edge tracking feedback |
| Operating Environment | Industrial paper mill wet/dry ends | Designed for high humidity and chemical exposure |
