Mitsubishi A1BA4D-05 MELSEC-A Terminal Block Adapter

Description

Product Introduction

The Mitsubishi A1BA4D-05 serves as a specialized terminal block interface adapter designed for the legacy MELSEC-A series PLC platform. It acts as an intermediate wiring bridge, converting high-density 40-pin ribbon cable connectors from high-density I/O modules into standard, accessible screw terminal points.

Engineered to streamline cabinet wiring and eliminate messy hand-soldered pin headers, the A1BA4D-05 mounts directly within control enclosures on standard DIN rails. Its compact form factor and clear terminal designations reduce installation errors and accelerate field troubleshooting on legacy Mitsubishi control racks.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

In our field experience, retrofitting or repairing legacy Japanese machine tools often comes down to tracking broken field wiring connections. When a high-density 40-pin ribbon cable or its mounting header snaps during a cabinet panel modification, whole banks of sensors go offline. Using a clean A1BA4D-05 adapter allows maintenance teams to land individual field wires cleanly onto screw terminals without forcing custom cable crimps.

• CNC Machine Tools & Automotive Stamping Presses – Connects high-density PLC input cards to proximity sensors, limit switches, and solenoid valves.
• Semiconductor & Electronics Assembly Lines – Interfaces small-signal sensor arrays with central MELSEC-A logic racks.
• Legacy Control Cabinet Refurbishment – Replaces degraded or cracked wiring headers without needing complete backplane or module replacements.

Field Case Study

A metal stamping facility experienced intermittent input signal losses on an automated feeder line driven by a MELSEC-A2N system. The root cause was damaged retention clips and loose wires inside an old crimped ribbon header. Rather than pulling new 40-core custom cables through flexible conduit, the maintenance crew installed a surplus A1BA4D-05 terminal adapter. Wiring individual conductors directly to the terminal screws restored full signal continuity, getting the press line back to production in under 45 minutes.

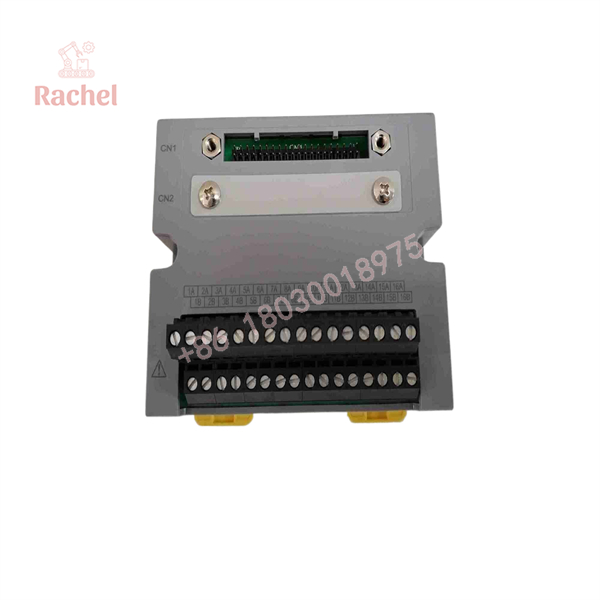

A1BA4D-05

A1BA4D-05

Transparency SOP: Quality Assurance & Testing

We test our legacy hardware before it enters inventory.

1. Inbound Mechanical Check: Inspect plastic housings, DIN rail latch springs, screw threads, and verify 40-pin header pin straightness.
2. Continuity & Pinout Verification: Perform point-to-point resistance checks from every 40-pin header pin to its corresponding screw terminal.
3. Insulation Resistance Test: Measure dielectric breakdown across adjacent terminal points to rule out short circuits or carbon tracking.
4. Physical Torque Test: Verify that all M3 terminal screws turn smoothly and clamp down securely without stripping thread housings.
5. ESD & Clean Storage: Seal in anti-static ESD bags with desiccant before placement in heavy-duty foam shipping boxes.

The Veteran’s Tech Trap Guide

• ⚠️ Do Not Over-Torque Terminal Screws: The terminal block utilizes M3 screws set into brass inserts. Torque these carefully (maximum 0.5 to 0.8 Nm). Over-tightening will strip the internal housing threads, rendering that terminal channel useless.
• ❗ Verify Pin 1 Orientation Before Plugging Ribbon Cables: The 40-pin ribbon connector on the A1BA4D-05 has a keying slot, but old aftermarket cables often lack keyed shrouds. Plugs installed upside down will reverse your I/O mapping across all 16 or 32 channels!
• ⚠️ Check Signal Current Ratings: These adapter boards are designed primarily for 24V DC logic signals or low-current AC inputs (up to 1A max). Never route high-current motor starter coil currents or inductive loads directly through these thin PCB traces without intermediate interposing relays.
• ❗ Label Your Conductors: Because the adapter breaks out high-density connectors into a tight two-tier terminal layout, label each wire ferrule clearly. Tracing unlabelled wires on a double-deck terminal block during a breakdown will waste hours.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Mitsubishi A1BA4D-05 still manufactured by Mitsubishi Electric?

A: No. The MELSEC-A series and its associated A1BA4D-05 accessories are discontinued legacy products. We supply fully tested, clean surplus stock to support existing operating installations.

Q: Does this adapter require software or parameter setup?

A: No. The A1BA4D-05 is a strictly passive physical-layer wiring adapter. It passes electrical signals straight through from the 40-pin connector to the screw terminals.

Q: Can this terminal block adapter be used with newer MELSEC Q-Series or FX-Series PLCs?

A: It is designed specifically for MELSEC-A series pinouts and mounting dimensions. While it can physically break out standard 40-pin cables used in some other platforms, always verify pinout mapping against your specific I/O card’s hardware manual.

Q: What warranty applies to this surplus module?

A: We back all clean surplus and reconditioned A1BA4D-05 modules with a 12-month operational replacement warranty.

Q: Why buy surplus adapters instead of upgrading to a modern PLC platform?

A: Complete PLC system migrations involve weeks of engineering, logic conversion, rewiring, and expensive downtime. Replacing a damaged terminal adapter gets your existing machine back online in minutes for a tiny fraction of the cost.
