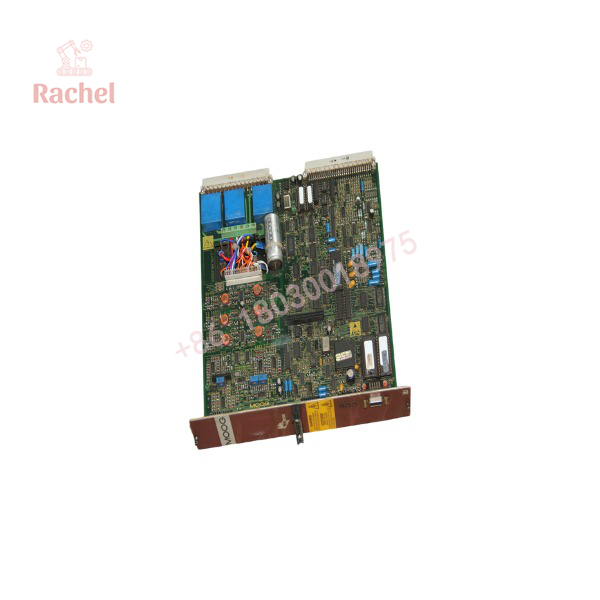

The Moog T161-903A-00-H1-2-AA is an industrial-grade digital servo amplifier from the WinDrive architecture. Designed specifically for demanding closed-loop motion applications, this drive handles complex torque, speed, and position loops with tight spatial tracking. It integrates into multi-axis rack systems typical of high-speed automation machinery, plastics processing equipment, and custom metal-forming rigs.
Unlike standard analog drives, this WinDrive unit uses onboard digital processing to reduce drift and keep velocity profiles consistent across wide operating temperatures. Its modular rack-mount design allows engineers to swap units without rewiring the entire power stage backplane, keeping machine footprint low while maximizing control bandwidth.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Moog |
| Product Family | WinDrive Series |
| Model Code | T161-903A-00-H1-2-AA |
| Module Type | Digital Servo Drive Amplifier / Motion Controller |
| Form Factor | Rack-mount cassette style |
| Feedback Types | Resolver / Incremental Encoder (application specific) |
| Front Panel Interface | Serial Comm Port (DB9) & LED Status Diagnostics |
| Cooling Method | Forced air / Rack chassis ventilation |
| Operating Temp | 0°C to 50°C (32°F to 122°F) |
| Compliance | CE mark |
Application Scenarios & The “Trench” Experience
It is 2:00 AM on a Tuesday, and line 3 in a injection molding facility just threw a main axis axis-comm fault. The drive rack shows a dead status LED on the main axis controller card, bringing a $15,000-per-hour production line to a complete standstill. The OEM lead time for a modern retrofit is 16 weeks, plus three days of field engineering work to rewrite PLC motion blocks. The only viable path forward is drop-in hardware replacement using a fully qualified surplus card.
- Injection Molding & Blow Molding Machinery: Drives main clamp or injection axes requiring fast velocity loops and repeatable pressure transitions.
- Metal Stamping & Forming Presses: Manages feeder axis positioning where high-vibration isolation and fast torque response are required.
- Automated Packaging Systems: Controls rotary knife and indexing axes needing tight synchronization over serial motion commands.
- Custom Flight/Load Simulators: Regulates hydraulic or electric actuators using Moog precision motion loops.
Transparency SOP: Quality Assurance & Testing
- Inbound Inspection: Verify board assembly against counterfeit risks, inspect backplane connector pins for bends/corrosion, and check for signs of thermal stress or blown capacitors.
- Power-On Self-Test (POST): Mount card in an original Moog WinDrive test rack; verify core DC bus rails, logic supplies, and status LED diagnostics.
- Loop Handshake & Comm Check: Establish serial communication via the front panel DB9 port, read internal fault logs, and verify parameter load/save operations.
- Load & Signal Test: Run simulated feedback loops (resolver/encoder) to verify drive gate firing and PWM output generation.
- ESD Packaging: Apply conformal coating checks, attach anti-static shielding, and wrap in foam-lined heavy-duty packaging before dispatch.
T161-903A-00-H1-2-AA
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Backplane Pin Alignment: Never force this module into the rack slot. The rear connector headers use dense pin layouts that bend easily if misaligned during insertion. Slide it along the rack guides slowly.
- ❗ Internal Parameter Backup: Always dump the parameter file from your failing card using WinDrive software before removing it. Replacement modules ship with factory defaults; plugged in raw, the drive will fail to index or run runaway motor loops.
- ⚠️ DC Bus Bleed Down Time: High-voltage capacitors on the rack DC bus hold power long after the main breaker trips. Wait at least 5 minutes and test bus terminals with a multimeter before sliding the drive out.
- ❗ Matching Firmware Sub-Revisions: Check the trailing hardware/firmware revision codes on the side label (“H1-2-AA”). Mismatched firmware can break communication with older host controllers on the rack.
Frequently Asked Questions (FAQ)
Q: Is the Moog T161-903A-00-H1-2-AA hot-swappable?
A: No. Pulling this drive while the rack backplane is energized risks arc-flashing the rear bus connector pins and corrupting the onboard EEPROM. Power down the rack chassis before swapping modules.
Q: Can I load parameters into this drive without a specialized software tool?
A: No. Parameterization requires Moog’s WinDrive software utility connected through the front DB9 serial interface. You cannot set up motion profiles or motor feedback constants via hardware jumpers alone.
Q: What if my old unit has a different revision code than “H1-2-AA”?
A: Hardware revisions often denote minor board updates or component updates, while suffix letters usually track firmware revisions. Verify with your backup parameter files to ensure parameter parameter maps align.
Q: How do you verify the unit works if it is discontinued by Moog?
A: We maintain dedicated Moog test racks and power supplies to perform live power-up, communication checks, and feedback signal simulation before stocking.
Q: What warranty comes with this module?
A: Every surplus and refurbished Moog T161 drive includes a 12-month full functional warranty from the date of purchase.
