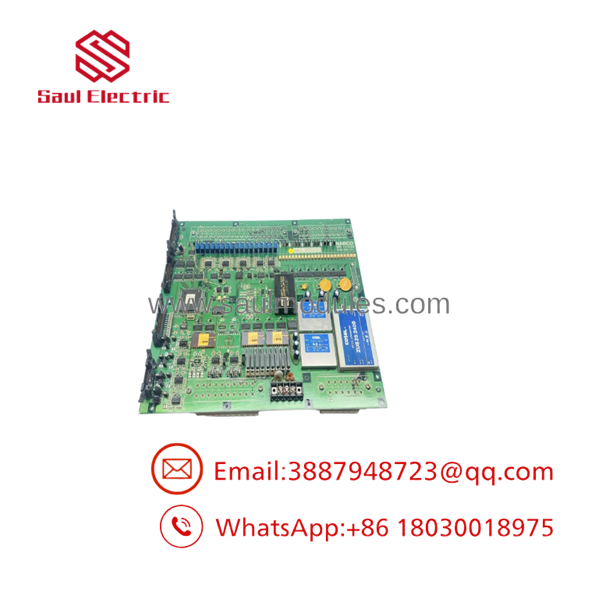

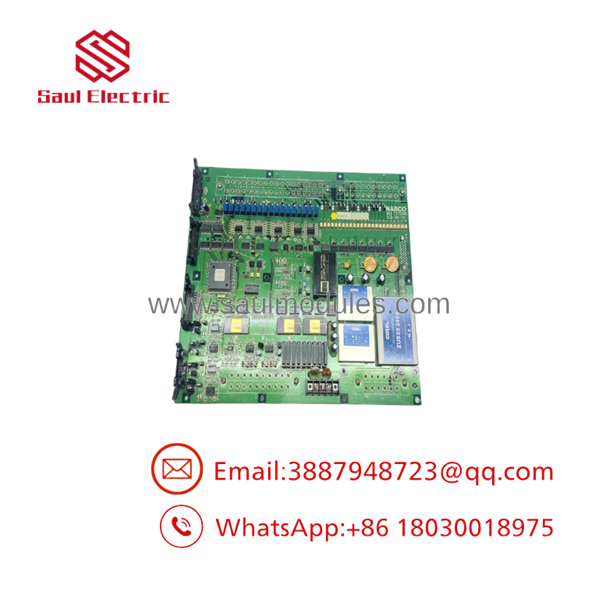

NABCO GCB-101-02 PCB Card

Description

Product Introduction & Engineering Value

The NABCO GCB-101-02 is not simply a generic automation PCB. Available marine spare-parts documentation places it specifically within the MCG-402 Governor Controller architecture. That makes accurate identification important when maintaining legacy vessel engine-control equipment.

The associated 885 7375346 number provides a second procurement identifier. Current listings describe the item as a PCB card or circuit board, with both new and used/open-box examples appearing in the market. Because public OEM documentation for this exact board is limited, the installed board’s markings should take precedence over generic seller descriptions.

Technical Specifications

The identification data above is drawn from actual market listings and marine spare-parts references. It is important to distinguish those identifiers from a formal OEM datasheet. For example, Atlas Shipcare records 885 7375346, K0215174, S7375477101, and the GCB-101-02 CARD ASSY marking on one new board.

One third-party technical listing reports dimensions of approximately 210 × 160 × 25 mm, weight around 0.45 kg, approximately 5 W consumption, and multiple analog/digital signal inputs. Those figures should be treated as seller-reported data rather than verified OEM specifications because an authoritative NABCO datasheet was not located.

Field Application & the “Trench” Experience

A vessel has an aging MCG-402 Governor Controller and begins experiencing inconsistent governor-control behavior. The first instinct is to investigate the governor actuator and field wiring. Those checks pass.

The maintenance engineer then moves upstream to the controller rack.

The installed PCB is marked GCB-101-02. The spare-room inventory shows a board listed only as “NABCO governor PCB.” That description is too vague for a critical replacement.

The engineer photographs the installed card and finds GCB-101-02 / 885 7375346. The spare is checked against those identifiers before being released for installation.

That is the right procurement discipline. The MCG-402 association gives the board a useful system-level identity, while and 885 7375346 provide the component-level identifiers.

Specific application scenarios

• Marine main-engine governor control — replacement of the card within an MCG-402 controller.
• Shipboard propulsion-control maintenance — maintaining a verified spare PCB for an aging governor-control cabinet.
• Marine automation overhaul — identifying legacy NABCO control cards during vessel refurbishment and spare-parts rationalization.

GCB-101-02

GCB-101-02

Transparency SOP: QA & Testing

For New Surplus, New Open Box, or Refurbished inventory, use a controlled inspection sequence.

1. Identity

Confirm:

• 885 7375346
• MCG-402 application
• Board revision or additional markings
• Serial/code markings where present

2. Physical condition

Inspect the edge connectors, PCB tracks, solder joints, terminals, component bodies, and mounting hardware. Look for corrosion, salt contamination, oxidation, cracked components, and evidence of previous rework.

3. Electrical condition

Perform applicable continuity, insulation/isolation, and power-rail checks before declaring the board ready for service.

4. Functional verification

The preferred test is operation in a compatible test environment or an approved equivalent. A simple bench power-up does not prove correct governor-control functionality.

5. Traceability

Photograph the actual board and retain the complete identification record with the spare-parts inventory entry.

This distinction matters because current market stock is sold under several condition categories. One supplier lists a board as New, another as New – Open Box, while other listings offer used examples.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Ordering “NABCO governor PCB” without the number

That is not sufficient. The has multiple associated PCB assemblies in the marine spare-parts catalog. For example, the same catalog separately identifies GCB-801-03 as another governor-controller PCB. Do not assume GCB-801-03 and are interchangeable.

⚠️ Trap #2 — Confusing the board number with the system number

identifies the associated governor-controller system; identifies the PCB. 885 7375346 is an additional part identifier. Keep all three relationships in the procurement record.

⚠️ Trap #3 — Trusting marketplace specifications without checking the board

Third-party listings sometimes provide detailed electrical specifications, but those figures are not necessarily OEM-approved specifications. For a critical marine-control replacement, use the physical board markings and applicable system documentation as the final reference.

PRO TIP: Add ” / 885 7375346 / “ as a combined search string in your spare-parts database. It will produce much cleaner sourcing results than searching for “NABCO governor board.”

Dynamic FAQ

What is NABCO ?

It is a NABCO PCB card associated with the Governor Controller. This relationship is specifically listed in a NABCO marine spare-parts catalog.

What is the 885 7375346 number?

885 7375346 is repeatedly listed as the part number associated with the PCB. Current listings use both identifiers together.

Is interchangeable with GCB-801-03?

Do not assume so. Both are listed in connection with the Governor Controller, but the available sources do not establish functional interchangeability. Treat them as different part numbers unless the applicable NABCO documentation explicitly authorizes substitution.

Is still available?

Yes. Current secondary-market listings show examples described as New, New Open Box, and used. Availability and condition vary by supplier.

What should I provide when requesting a replacement?

Provide the complete designation, 885 7375346 part number, controller information, board photographs, revision markings, and any additional codes printed on the PCB.

How should New Surplus authenticity be checked?

Request photographs of the actual board, not only catalog images. Confirm the and 885 7375346 markings, inspect packaging and storage condition, and ask whether the supplier performed electrical or functional testing. One documented new board, for example, carries additional markings including K0215174 and S7375477101.

What warranty should apply?

Warranty is supplier-specific. For a critical marine controller PCB, confirm the written warranty period, return conditions, test status, and whether the item is genuinely New Surplus, New Open Box, or Refurbished before purchase.
