Description
Product Introduction
The NABCO MC-504-01A is a high-reliability microcomputer control module built for commercial automatic sliding door operators. Acting as the system’s central processing hub, this unit receives activation inputs from overhead motion sensors, safety beams, key switches, and emergency triggers to directly govern motor output torque and braking cycles.
Evolving from earlier MC-series platforms, the MC-504-01A features enhanced microprocessor routines that deliver smoother acceleration curves, precise creep-speed positioning, and responsive obstruction detection. This direct feedback circuit protects the drive motor and belt mechanism during blockages while maintaining consistent cycle timing across high-traffic pedestrian entryways.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | NABCO (Nabtesco Corporation) |
| Part Number | MC-504-01A |
| Primary Voltage | 100V AC (±10%), 50/60 Hz |
| Control Logic | Microprocessor-based Motion & Safety Controller |
| Output Type | Direct DC Motor PWM Output / Braking Control |
| Sensor Inputs | Motion Radar, Safety Photoelectric Beam, Key Switch, Fire Alarm |
| Safety Features | Reversing-on-Obstruction, Overcurrent Motor Protection |
| Terminal Connection | Multi-Pin Quick-Disconnect Terminal Block / Harness |
| Adjustable Trimmers | Open/Close Speed, Creep Range, Hold-Open Time, Brake Sensitivity |
| Operating Temp Range | -10°C to +50°C (14°F to 122°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 4:00 PM on a freezing November afternoon. The main double-sliding entry doors at a high-end retail plaza freeze wide open after a power drop, blowing cold air through the main concourse and triggering alarms on the climate control system. Local service contractors quote $7,500 and a 4-week turnaround for a complete operator header retrofit. A technician swapping in a pre-tested surplus MC-504-01A module brings the doors back online in under 30 minutes, securing the perimeter before evening foot traffic hits.
Application Scenarios
- Commercial Retail Entrances – High-Volume Storefront Doors – Handles thousands of daily cycles without calibration drift in deceleration and braking points.
- Healthcare Facilities – Cleanroom & ICU Sliding Entrances – Delivers smooth, quiet motion profiles that prevent draft surges in pressure-controlled areas.
- Transit Hubs & Airports – Public Terminal Access Gates – Integrates with building management systems to force doors open during fire alarm trips.
- Corporate Office Buildings – Card-Access Pedestrian Entrances – Processes dry-contact relay triggers from badge readers for controlled 3-second opening cycles.
Field Case Study
A facility team at an office complex reported an MC-504-01A failure caused by line noise from a heavy-duty HVAC compressor start on the same circuit. The board locked up, holding the sliding doors open indefinitely. We pulled a clean, bench-tested MC-504-01A unit from surplus inventory, verified terminal continuity, and shipped it overnight. The field tech isolated the power, plugged in the existing wiring harness, adjusted the trimmer pots to match the original settings, and restored full operation within 20 minutes of arriving on site.

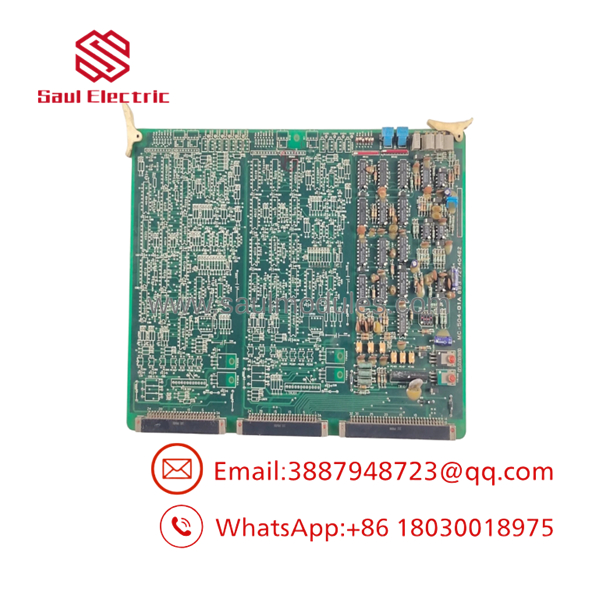

MC-504-01A

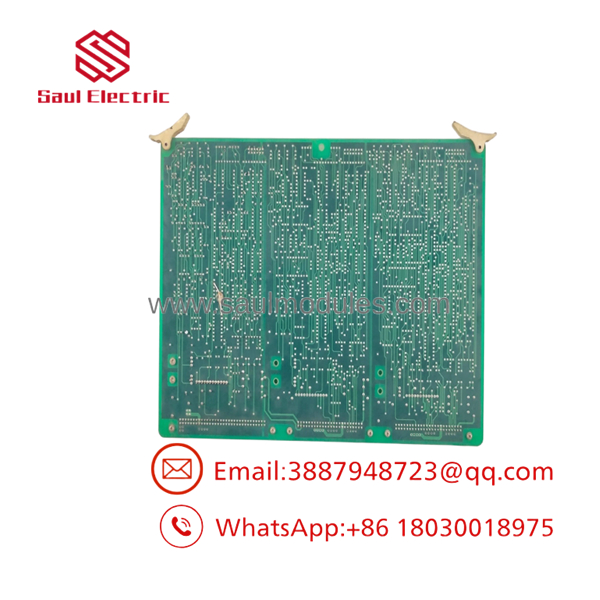

MC-504-01A
Transparency SOP: Quality Assurance & Testing
- Inbound Visual & Integrity Inspection: We check casing plastic for cracks, examine board solder joints for heat discoloration, inspect connector pins for corrosion, and verify genuine OEM markings.
- Dedicated Test Rig Mounting: The board is mounted onto an active NABCO operator test track fitted with a standard drive motor, encoder, and optical safety beams.
- Full Functional Cycle Testing: We run the module through 50+ complete open/close sequences, checking hold-open timing, acceleration ramps, creep-speed transitions, and brake response.
- Safety & Current Load Verification: We simulate door obstructions during closing routines to confirm that the auto-reversing current sense trips instantly without stressing the output drivers.
- ESD Cleaning & Final Prep: Approved boards undergo non-conductive terminal cleaning before being sealed inside anti-static shielding bags with custom foam boxing.
The Veteran’s Tech Trap Guide
- ⚠️ Verify Supply Voltage First: ❗ Never hook up a replacement MC-504-01A without verifying primary line voltage across your step-down transformer secondary. A failing transformer putting out over 115V AC will instantly destroy the primary power stage of your new controller.
- ❗ Photograph Trimmer Dial Positions: Take a clear photo of all potentiometer dials (open speed, close speed, creep zone, hold time) on the old board before unmounting it. Matching these baseline positions on the replacement unit saves considerable time during initial ladder adjustments.
- ⚠️ Check Sensor Jumpers and Logic: The MC-504-01A uses onboard jumpers to set sensor input polarity (Normally Open vs. Normally Closed). An incorrect jumper position will cause the door to lock open or reverse unexpectedly.
- ❗ Clean Harness Contacts: Oxidation inside female wiring harness terminals causes high resistance on low-voltage safety lines, leading to intermittent door “ghosting.” Spray the plug with contact cleaner before seating it onto the new board header.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I replace the NABCO MC-504-01A while power is active?
A: No. Always isolate line power before disconnecting or seating terminal connectors. Hot-plugging live harnesses can cross high-voltage pins and destroy the onboard microprocessor.
Q: Is the MC-504-01A a drop-in replacement for earlier MC-208 or MC-151 modules?
A: While they share basic operational principles, pin assignments and harness header layouts vary between board generations. Always cross-check your header wiring schematic before powering up an updated board model.
Q: Why does the door stay wide open after installing the MC-504-01A?
A: This usually points to an active safety circuit or mismatched jumper logic. Check that safety photoelectric beams are aligned and that the board’s NO/NC input jumper matches your sensor’s contact configuration.
Q: Are these replacement units factory-new or surplus?
A: Because factory production on the legacy MC-504 series has been phased out, our stock consists of certified New Surplus (unused original stock) or thoroughly bench-tested Refurbished modules sourced from clean facility retrofits.
Q: What warranty comes with this controller unit?
A: We back every unit with a full 12-month industrial replacement warranty. If any hardware defect or operational fault occurs within 365 days, we provide an immediate exchange or refund.
Q: Why is buying a replacement controller better than upgrading the whole door operator?
A: Replacing the controller module takes under 30 minutes and retains your existing tracks, belt, motor, and sensors. Installing a new operator header requires structural alterations, major hardware costs, and days of entrance downtime.
