NABCO MC-103-02Z 885 Bridge Remote Control Module

Description

Product Introduction

The NABCO (Nabtesco) MC-103-02Z (cataloged under drawing reference 72739840 and spec 885) is an essential electronic control module engineered for marine main engine remote control stands. Installed in Engine Control Room (ECR) sub-racks or bridge maneuvering consoles, this logic board processes telegraph lever positions, speed governor references, and start/stop interlocks for large 2-stroke propulsion engines, including MAN B&W and WinGD/Sulzer installations.

To withstand harsh marine engine room conditions, the MC-103-02Z features high-grade conformal coating that shields delicate surface traces and micro-logic components from oil vapor, salt air, and high humidity. Its rugged Eurocard format slides directly into standard NABCO sub-rack backplanes (such as the MC-004), delivering rock-solid logic processing that keeps engine maneuvering predictable during critical harbor operations.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: You are steering a 110,000 DWT tanker through the Suez Canal when the bridge maneuvering console triggers a “Remote System Failure” alarm. The main engine drops to dead slow and stops responding to telegraph handle adjustments. Down in the ECR, the duty engineer finds a red system fault LED on the MC-103 card slot. Thermal stress over ten years finally broke an internal trace on the logic board, cutting off speed governor reference signals. Slipping the cabinet open, pulling power, and slotting in a bench-tested MC-103-02Z replacement card restores full bridge control in under five minutes.

• Commercial Marine Ships – ECR Control Consoles – Translates telegraph lever positions into analog speed commands for governor actuators.
• Bridge Maneuvering Consoles – Speed Logic – Controls engine reversing interlocks and starting sequence logic during harbor maneuvering.
• Ship Repower & Repair Retrofits – Direct plug-in replacement card to clear system alarms without re-wiring entire control racks.

Field Case Study

A chemical tanker in Singapore was delayed from sailing due to an intermittent “Maneuvering Logic Fault” on its propulsion control system. Ship staff attempted to re-seat the old card, but the fault returned every time the main engine vibrated at maneuver speeds. A tested surplus MC-103-02Z (Spec 885) module was hand-delivered on-board. Technicians transferred the original DIP switch positions to the new card, slid it into the sub-rack backplane, and completed a 30-minute sea trial without a single fault—saving thousands in port delay penalties.

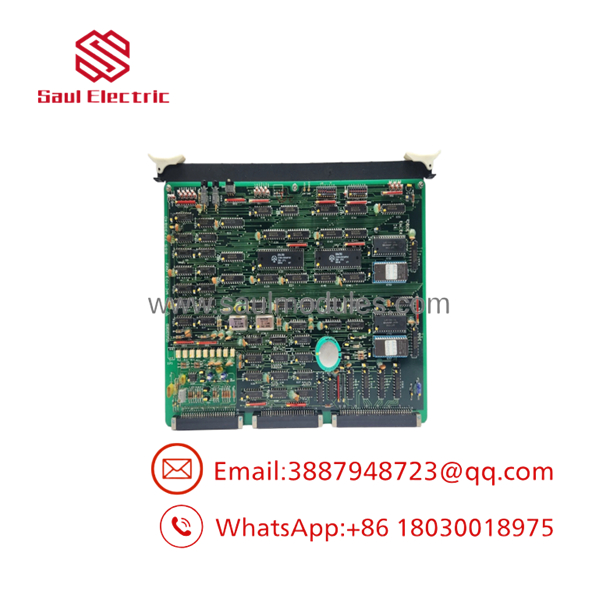

MC-103-02Z 885

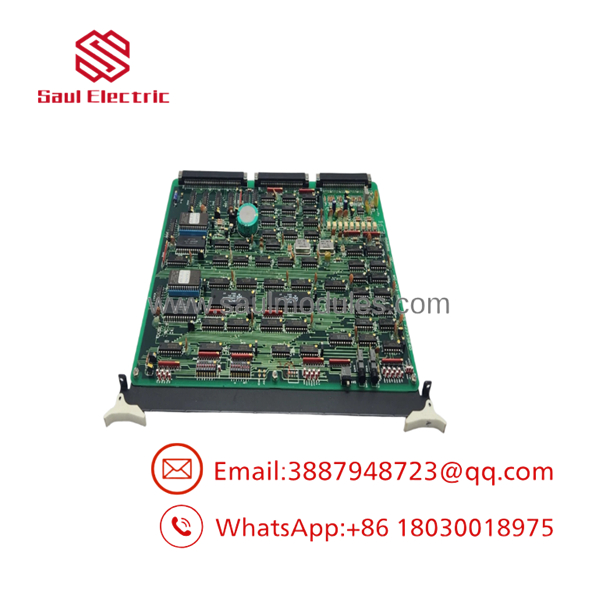

MC-103-02Z 885

Transparency SOP: Quality Assurance & Testing

We don’t just eyeball surplus circuit boards—we put them through physical test procedures on our specialized rigs.

1. Inbound Visual Inspection: Verify PCB traces, edge connector contacts, component integrity, and confirm correct silk-screened markings (MC-103-02Z / 72739840).
2. Power Rail Stability Check: Power up the module on a 24V DC test rack, monitoring current consumption and checking onboard voltage regulators.
3. Logic & Analog Signal Tracing: Inject simulated lever inputs to verify speed command output scaling, direction logic relays, and alarm interlock states.
4. Conformal Coating & Physical Integrity: Inspect the moisture-barrier coating and ensure front ejector latches operate smoothly without binding.
5. ESD Cleaning & Packaging: Clean connector contacts with contact cleaner, seal the card in a VCI static-shielding bag, and store it in custom foam packaging for safe transit.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Power Down Before Card Insertion: Always isolate the 24V DC control power to the sub-rack before removing or inserting the MC-103-02Z. Live “hot-swapping” can arc backplane pins and burn out input transistors on the card.
• ❗ Match Hardware Jumpers and DIP Switches: Take a clear photo of your original card’s jumper links and DIP switch settings before taking it out. The replacement card must be set to match your specific engine type and governor setup.
• ⚠️ Verify Drawing Numbers: Ensure your drawing reference matches 72739840 or Spec 885. While some NABCO MC-103 variants share similar front panels, pin assignments on the rear edge connector can vary between engine control generations.
• ❗ Keep Edge Connectors Clean: Dust or light corrosion on the male backplane pins will cause jumpy speed signals. Spray contact cleaner into the female backplane slot before seating the replacement card.

Frequently Asked Questions (FAQ for Conversion)

Q: Does the NABCO MC-103-02Z require software configuration or laptop flashing?

A: No. The MC-103-02Z uses hardwired logic circuits. All calibrations and configurations are set via hardware DIP switches, jumpers, and onboard potentiometers.

Q: Are MC-103-02Z, Spec 885, and 72739840 the exact same component?

A: Yes. MC-103-02Z is the core module model number, Spec 885 specifies the hardware build variant, and 72739840 is the official OEM drawing part number. They refer to the same physical assembly.

Q: Can this module cause total loss of bridge maneuvering control if it fails?

A: Yes. If the speed logic or telegraph processing circuit on this card fails, the system typically drops to emergency manual control or locks the engine at its last valid speed setting.

Q: What causes these logic cards to fail on working vessels?

A: Age-related capacitor degradation, thermal stress cycles inside closed consoles, and long-term vibration micro-fractures on solder joints are the most common failure points.

Q: What warranty comes with these surplus NABCO modules?

A: All NABCO MC-103-02Z modules carry a full 12-month functional replacement warranty.
