Description
Product Introduction
The NABCO MC-151-01B is a specialized microcomputer control unit built for NABCO automatic sliding door operators. It processes activation inputs from overhead motion radars, safety photocells, and key switches to directly regulate motor speed and braking cycles. Facilities rely on this controller in commercial entrances, healthcare cleanrooms, and transit hubs.
Unlike simple relay boards, this module uses a dedicated microprocessor to handle dynamic deceleration profiles and obstruction sensing. That hardware-level detection prevents motor burnout when doors hit unexpected resistance. It maintains steady cycle timing even under heavy foot traffic, keeping your entryway operational without continuous recalibration.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | NABCO (Nabtesco Corporation) |
| Part Number | MC-151-01B |
| Primary Voltage | 100V AC (±10%), 50/60 Hz |
| Control Architecture | 8-bit Microcomputer-based Logic Board |
| Output Type | Direct DC Motor Drive Signal / Relay Control |
| Sensor Inputs | Activation Radar, Safety Photocell, Hold-Open Switch |
| Safety Features | Reversing-on-Obstruction, Current Overload Sense |
| Terminal Connection | Quick-Disconnect Multi-Pin Ribbon / Terminal Block |
| Operating Temp Range | -10°C to +50°C (14°F to 122°F) |
| Enclosure Material | Flame-Retardant ABS Protective Housing |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 5:30 PM on a Friday. The main entrance sliding door at a regional hospital emergency lobby jams mid-stroke, triggering an endless safety sweep that locks the door wide open. In a climate-controlled facility, that means immediate heat loss and a security breach. The original installer claims the controller is obsolete and wants $6,000 for a full header upgrade. A drop-in MC-151-01B replacement swapped in 20 minutes gets the entrance working before nightfall without ripping down the entire operator track.
Application Scenarios
- Healthcare & Cleanrooms – HEPA Air Lock Sliding Doors – Requires immediate obstruction recoil and reliable seal timing to maintain room pressurization.
- Commercial Retail – High-Traffic Storefront Entrances – Handles thousands of daily cycles without overheating or losing speed calibration points.
- Transit Hubs – Airport Concourse & Train Station Access – Integrates directly with fire alarm trip signals to auto-open during facility evacuations.
- Corporate Offices – Secure Card-Access Pedestrian Entrances – Processes dry-contact relay pulses from badge readers to cycle doors within tight 3-second windows.
Field Case Study
A commercial facility manager reached out after an MC-151-01B failed due to a severe line voltage spike from a generator test. The door stopped recognizing safety beam signals, stalling the main office lobby line. We bench-tested a surplus MC-151-01B, packed it with anti-static protection, and overnighted it. The technician plugged in the existing wiring harness, adjusted the deceleration pot, and restored normal operation within 30 minutes of arrival. Total downtime was under 18 hours.

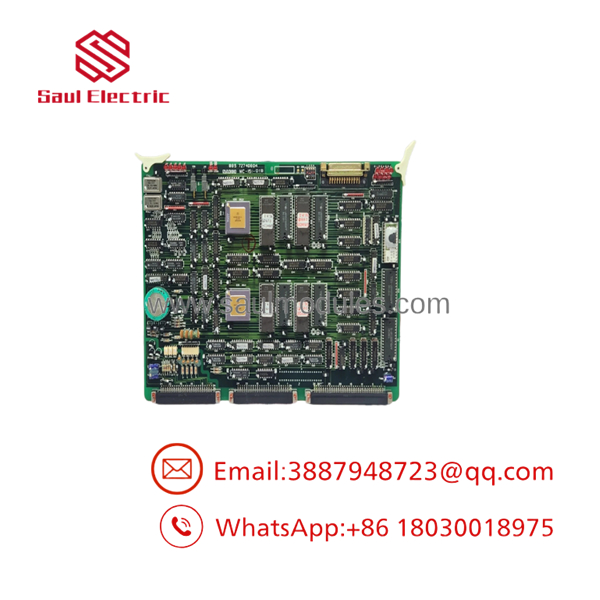

MC-151-01B

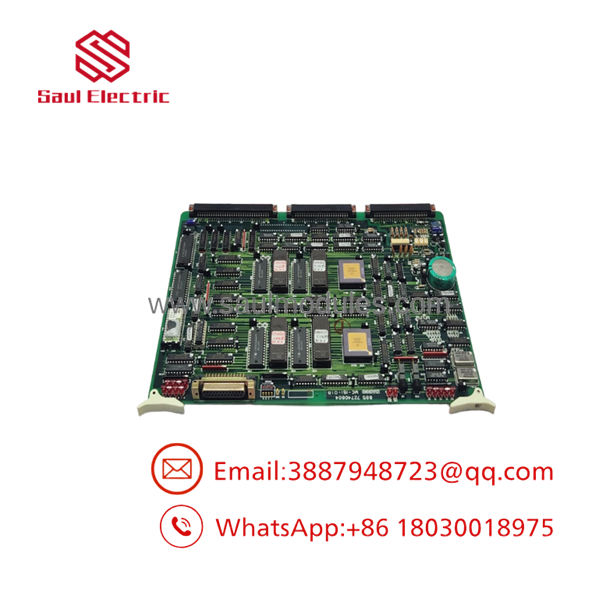

MC-151-01B
Transparency SOP: Quality Assurance & Testing
- Inbound Visual & Anti-Counterfeit Inspection: We inspect casing integrity, verify original NABCO label markings, check connector pins for corrosion, and test transformer windings for thermal breakdown.
- Live Bench Test Rig: We mount the board on a dedicated NABCO test track with standard drive motors and optical sensors connected.
- Power Cycle & Handshake Tests: The unit runs through 50 continuous open-close cycles, checking hold-open timing, deceleration ramp consistency, and auxiliary sensor signal acceptance.
- Current & Thermal Verification: We load the motor output stage while monitoring current draw with an ammeter to check for worn relays or leaky output transistors.
- Final QC & Anti-Static Packaging: After clear testing logs are recorded, the board is cleaned with isopropyl solvent, bagged in ESD-shielded packaging, and boxed with custom foam insert supports.
The Veteran’s Tech Trap Guide
- ⚠️ Check the Motor Capacitor and Line Transformer First: ❗ Before plugging a new MC-151-01B into a dead system, check the door operator transformer output voltage and the motor capacitor. A shorted drive motor or a faulty transformer delivering over 115V AC will instantly fry the primary power stage of your new replacement controller.
- ❗ Potentiometer Position Drift: Take a high-resolution photo of the speed, open-hold time, and braking potentiometers on your old card before pulling it. The replacement unit comes factory-zeroed, so copying those exact trimmer dial positions saves you an hour of manual door tuning on a ladder.
- ⚠️ Sensor Logic Jumper Matching: Check whether your safety photocell system uses Normally Open (NO) or Normally Closed (NC) contacts. If your new board behaves backward (doors opening when blocked), you missed an onboard pin jumper configuration.
- ❗ Connector Pin Corrosion: Never force oxidation-darkened wiring harness plugs onto the new header pins. Clean the female wiring harness socket with contact cleaner first; high resistance on low-voltage safety lines causes intermittent door ghosting.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the NABCO MC-151-01B hot-swappable?
A: No. Absolutely turn off the main breaker to the header before disconnecting or plugging in the MC-151-01B harness. Pulling or seating connectors under live 100V AC power can short the onboard microcontroller.
Q: Can I use the MC-151-01B as a direct drop-in replacement for older MC-151 models?
A: Yes, the “01B” variant maintains backward compatibility with the standard MC-151 terminal pinouts. However, always compare the terminal silk-screening on the board edge against your panel wiring diagram to verify terminal assignments.
Q: What should I do if the door opens but refuses to close after installing this controller?
A: This usually indicates an active safety input circuit. Check your safety photocells or infrared sensors. If the sensor LED is active, or if you wired an NC safety beam into an NO terminal set, the MC-151-01B holds the door open indefinitely by design.
Q: Are these units brand new from the NABCO factory or surplus?
A: Since original factory production on the MC-151 series is largely phased out, our stock consists of tested New Surplus (unused original stock) or certified Refurbished units sourced from clean system decommissionings. Every unit undergoes full bench testing before shipment.
Q: What warranty coverage comes with this module?
A: We back this unit with a full 12-month industrial replacement warranty. If it fails under standard operational conditions within 365 days, we exchange it or refund the purchase price.
Q: Why is buying this surplus controller significantly cheaper than a complete system retrofit?
A: Replacing just the MC-151-01B controller costs a fraction of a full header upgrade. A full upgrade requires replacing the track, motor, belt, sensors, and structural header, costing thousands in extra labor and structural work. A drop-in card swaps in minutes.
