Description
Product Introduction
The NABCO MC-603-03C belongs to the 885-series family of industrial-grade control boards developed by Nabtesco/NABCO for marine maneuvering systems, engine telegraph consoles, and heavy industrial automation racks. Operating from central control cabinets, this module converts incoming analog feedback signals from speed pickups, pressure sensors, and actuators into real-time microcomputer commands.
As a later hardware revision within the MC-603 platform, the -03C designation incorporates refined analog conditioning circuitry and optimized noise-suppression networks. These hardware-level enhancements protect sensitive processing logic against electromagnetic interference (EMI) and power line transients, keeping main engine governor loops stable without control lag or signal drift during rapid load shifts.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | NABCO / Nabtesco Corporation |
| Model Number | MC-603-03C |
| Product Family | 885 Series Automation & Engine Control Board |
| Board Category | Analog Conditioning & System Logic Control Board |
| Primary Application | Marine Main Engine Remote Control & Governor Racks |
| Signal Interface | Multi-Channel Analog I/O with Galvanic Isolation |
| Form Factor | Multi-Pin Edge-Card / Plug-in Sub-Rack Assembly |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
| Mounting Orientation | Vertical Rack Slot with Retaining Screws |
| Approximate Weight | 0.45 kg (0.99 lbs) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 2:15 AM on a tanker preparing to drop anchor. The remote engine control stand throws a critical actuator feedback fault because an aging processing card in the maneuvering rack began drifting under high engine-room heat. The bridge loses reliable throttle feedback, forcing the chief engineer onto manual engine-room controls. Local suppliers quote weeks for a complete rack upgrade. Swapping a bench-tested, surplus MC-603-03C card directly into the sub-rack slot restores closed-loop governor feedback in under 20 minutes, getting the ship fully operational before anchor drop.
Application Scenarios
- Marine Main Engine Remote Control Racks – Processes actuator position, pitch feedback, and speed demand signals on bridge and ECR consoles.
- Diesel Power Generation Plants – Manages load-sharing signals across large diesel generator sets to prevent frequency hunting under load swings.
- Industrial Governor Systems – Interfaces legacy pneumatic and hydraulic actuator feedback loops with central processing racks.
- Shipboard Auxiliary Monitoring – Manages multi-channel analog sensor signals for central alarm and telemetry panels in engine spaces.
Field Case Study
A marine service engineer contacted us after an MC-603-03C card suffered trace oxidation from persistent humidity inside an engine control panel. The board fault caused erratic actuator hunting on the main governor linkage. We bench-tested a surplus MC-603-03C card on a simulated 885-series test rack, verified signal linearity, and dispatched it via overnight courier to the port. The vessel engineer installed the card, matched the baseline trimmer settings to the original panel log, and restored smooth governor tracking immediately.
Transparency SOP: Quality Assurance & Testing
- Inbound Visual & Optical Inspection: We inspect all PCB traces under high magnification for micro-cracks, verify solder joint integrity, and confirm original NABCO 885-series manufacturing stamps.
- Gold Finger & Contact Cleaning: Edge connectors and pin headers are cleaned using specialized chemical solvents to remove oxidation and guarantee gas-tight backplane mating.
- Power Rail Bench Verification: The board is inserted into a dedicated test sub-rack to verify onboard DC voltage regulators and reference rail stability against strict OEM limits.
- Analog Loop Simulation: We inject precision current and voltage signals across all input/output channels to verify loop accuracy, isolation resistance, and attenuation profiles.
- ESD Cleaning & Sealed Packaging: Following clear test logging, the card undergoes non-conductive cleaning, is sealed in an ESD shielding bag, and is packed in custom foam-padded shipping boxes.

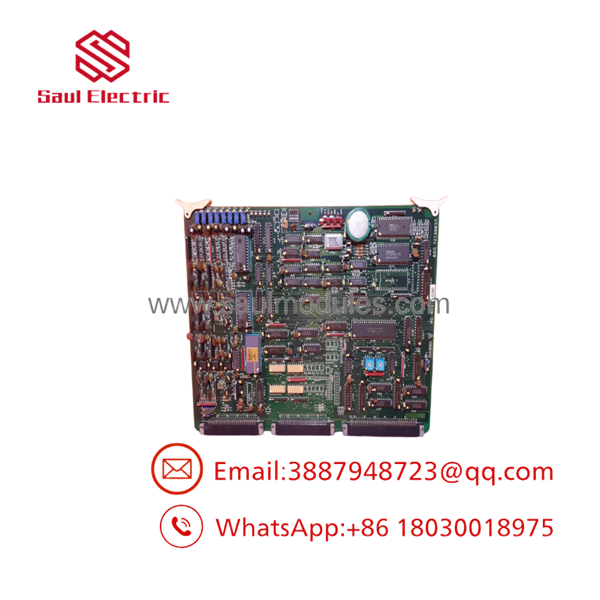

MC-603-03C

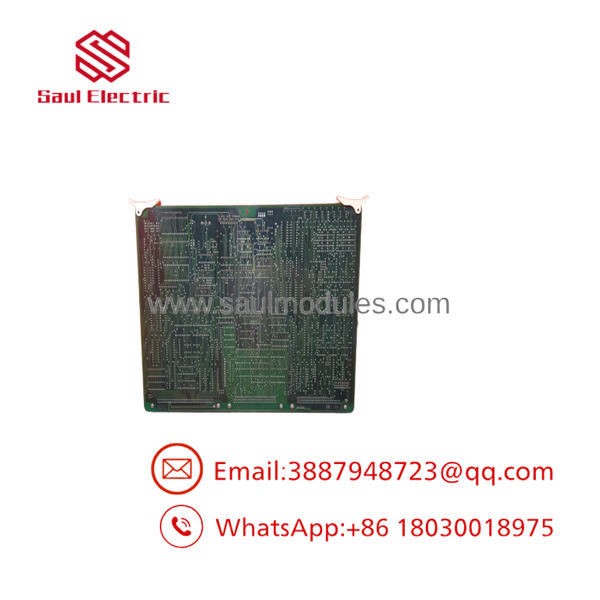

MC-603-03C
The Veteran’s Tech Trap Guide
- ⚠️ Verify Revision Suffixes (03C vs 02A vs 01A): ❗ Pay close attention to the full part number on your original board. While an MC-603-03C and an MC-603-01A share the same base 885 card cage footprint, revision letters denote specific factory component populated configurations, gain ranges, and signal filter values matched to particular engine models.
- ❗ Never Hot-Swap Rack Cards: Always isolate cabinet DC and AC power before pulling or inserting the MC-603-03C card. Seating an edge connector while live can arc power pins to signal lines, instantly destroying microprocessors on adjacent backplane cards.
- ⚠️ Document Trimmer Potentiometer Positions: If your board revision includes fine-tuning trimmers for gain or zero offset, log their exact physical positions or resistance readings before unmounting. Copying these baseline positions onto the replacement board reduces tuning time during commissioning.
- ❗ De-oxidize Backplane Slots: Salt air in marine environments leaves invisible oxidation inside female card cage sockets. Spray the backplane slot with electrical contact cleaner and cycle the card gently 2–3 times while unpowered to ensure solid electrical contact.
Frequently Asked Questions (FAQ for Conversion)
Q: What does the “885” designation mean on this NABCO PCB?
A: The “885” prefix identifies the specific OEM hardware assembly and backplane architecture manufactured by Nabtesco/NABCO for their marine and industrial engine automation product lines.
Q: Can I interchange an MC-603-03C with an earlier MC-603-01A or -02A board?
A: They share the same physical rack dimensions, but component-level differences in revision suffixes (such as signal gain or filter timing) mean direct swapability depends on your specific engine loop configuration. Check your panel schematic and board revision details before swapping.
Q: Are these MC-603-03C replacement cards brand new or surplus?
A: Because factory production for legacy NABCO 885-series control boards is phased out, our inventory consists of certified New Surplus (unused original stock) or thoroughly bench-tested Refurbished boards harvested from clean facility and vessel retrofits.
Q: Why does my panel report an analog loop failure even after installing the new card?
A: This usually points to oxidation inside the female backplane slot or a mismatch in zero/span trimmer adjustment. Clean the backplane contacts with electrical contact cleaner and verify that the replacement board’s potentiometer settings match your panel’s calibration log.
Q: What warranty is provided with this surplus control card?
A: We support every unit with a full 12-month industrial replacement warranty. If any functional flaw or signal drift occurs within 365 days of purchase, we offer an immediate unit exchange or complete refund.
Q: Why purchase a replacement PCB card instead of upgrading the whole maneuvering system?
A: Replacing the individual MC-603-03C card takes less than 15 minutes and costs a fraction of a full system upgrade. Ripping out a complete maneuvering console requires extensive rewiring, prolonged vessel or plant downtime, and costly classification society re-certifications.
